McGuire MP Series - Component Identification

8
Manual No. 4111-0019
May 2015
July 2016
INTRODUCTION

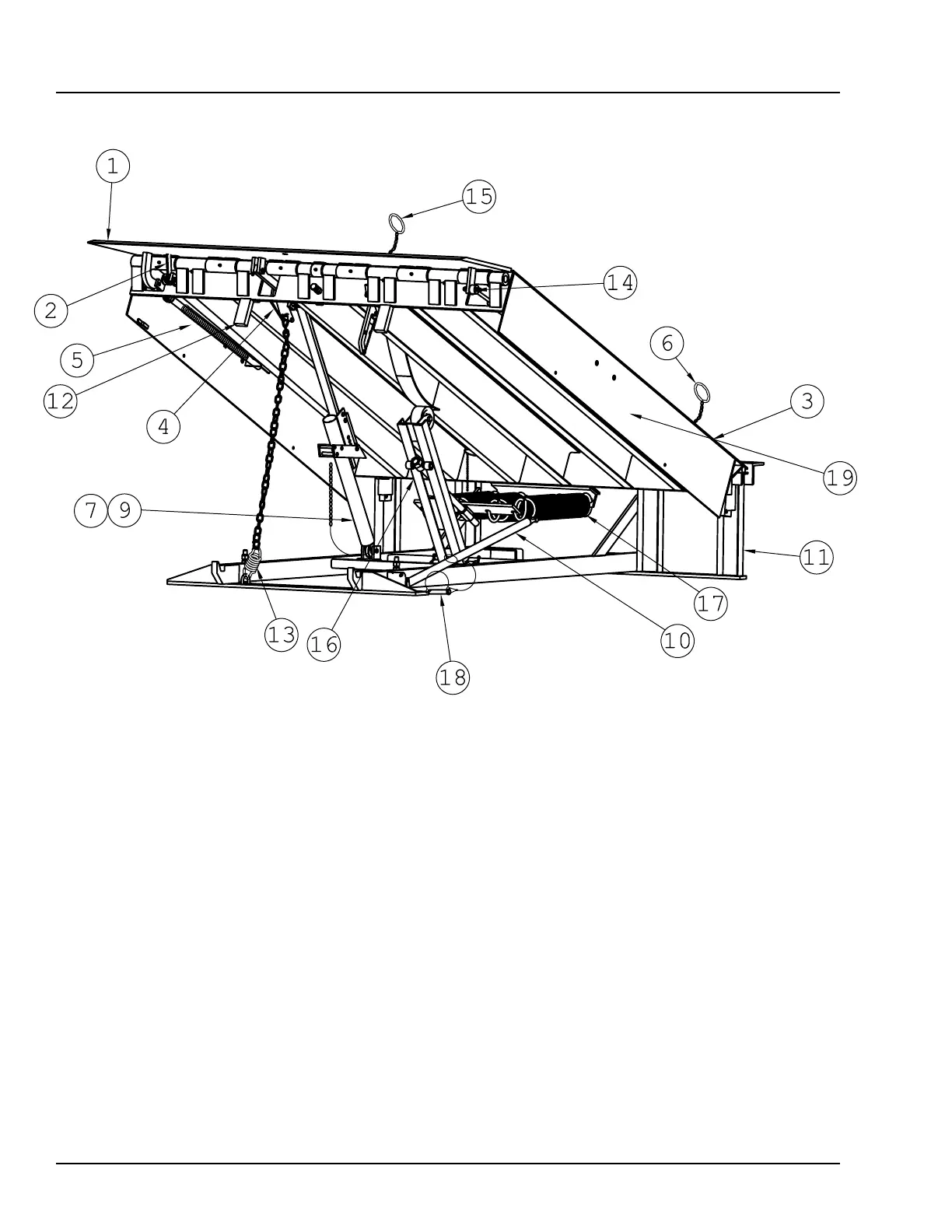

Component Identification
1 — Lip
2 — Lip Maintenance Prop
3 — Platform
4 — Bell Crank
5 — Lip Assist Spring
6 — Hold Down Release Ring
7 — Ratchet Pawl & Bar
9 — Hold Down
10 — Platform Maintenance Prop
11— Main Base Frame
12 — Safety Leg Assy.
13 — Lip (Snubber) Spring
14 — Lip Shock Absorber
15— Safety Leg Pull Chain
16 — Lift Arm Assembly
17 — Lift (Main) Spring
18 — Prop. Pin and Clip
19 — Working Range Toe Guards
