26
Manual No. 4111-0019
May 2015
July 2016
ADJUSTMENTS

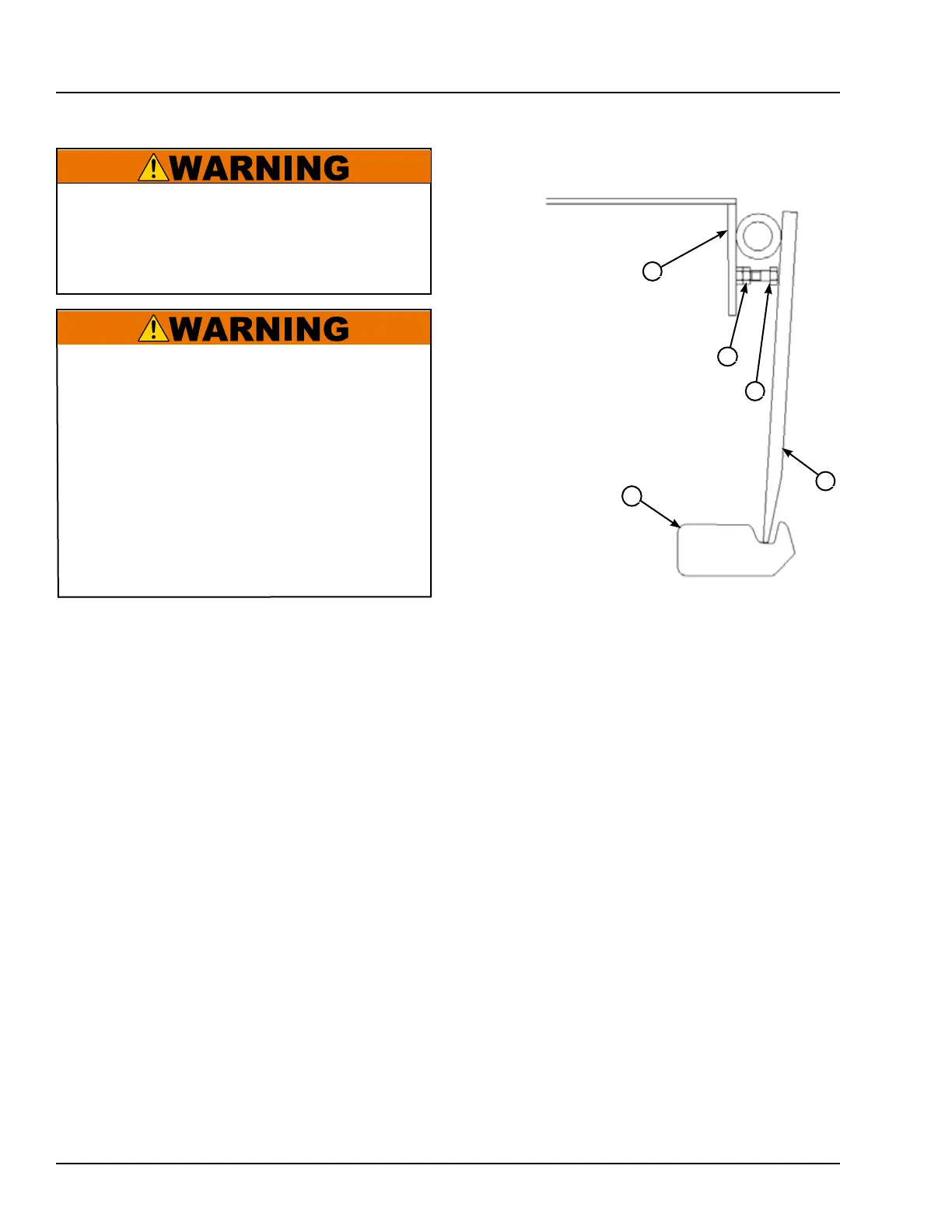

Adjust Lip Stop Bolt
Check that lip (E) is fully resting on the lip keepers (D)
and at the lowest part of the lip keepers. If lip is not
resting properly in lip keepers, perform the following
adjustment.
1. Fully raise platform. Manually raise the lip and
engage lip maintenance prop (not shown).
2. Loosen jam nut (B).
3. Adjust stop bolt (C) as necessary.
• Turn stop bolt “in” (clockwise) to allow lip to fold
closer to platform (A).
• Turn stop bolt “out” (counterclockwise) to hold
lip further away from platform (A).
A— Platform
B— Jam Nut
C— Stop Bolt
D — Lip Keeper
E — Lip
4. Tighten jam nut (B).
5. Disengage lip maintenance prop.
6. Walk platform down to cross-traffic (stored)
position.
7. Check lip position in both keepers. Repeat
procedure if necessary.
Always stand clear of the dock leveler lip when
working in front of the dock leveler.
The maintenance prop MUST be in the service
position when working under the dock leveler.
For maximum protection, use an OSHA approved
locking device to lock the maintenance prop in
the service position. Only the person servicing
the equipment should have the key to unlock the
maintenance prop.
Failure to follow these instructions could result in
death or serious injury.
Always post safety warnings and barricade the
work area at dock level and ground level to prevent
unauthorized use of the dock leveler before
maintenance is complete. Failure to follow these
instructions could result in death or serious injury.
D
E
B
C
A
