McGuire MP Series - Toe Guard;Weather Seal-Optional

35
Manual No. 4111-0019
May 2015
July 2016
PARTS

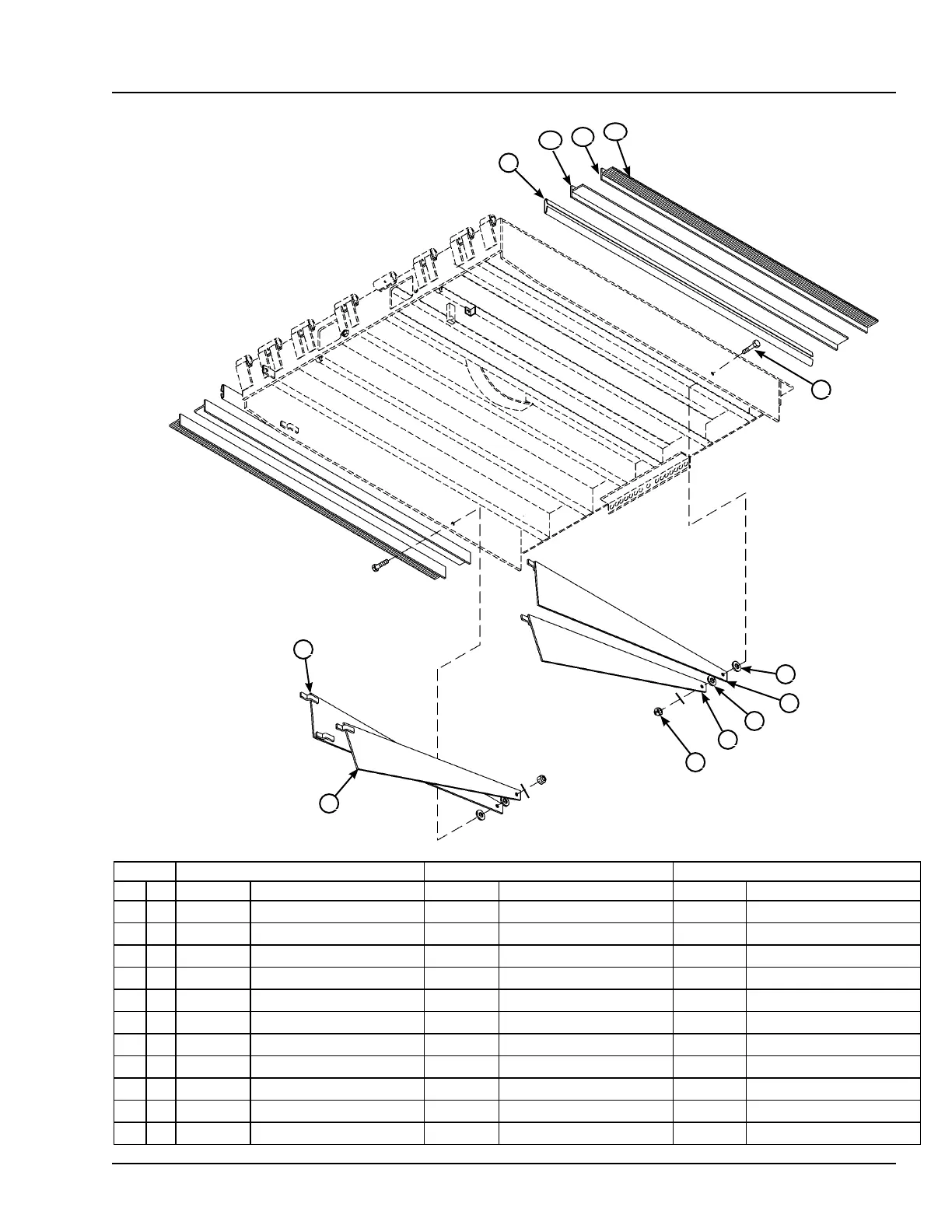

Toe Guard/Weather Seal—Optional
** Included in kits
6 FOOT 8 FOOT 10 FOOT
*1 1 0014-0062 TOE GUARD LH MIDDLE 0014-0070 TOE GUARD LH MIDDLE 0014-0078 TOE GUARD LH MIDDLE
*2 1 0014-0066 TOE GUARD LH LOWER 0014-0074 TOE GUARD LH LOWER 0014-0082 TOE GUARD LH LOWER
*3 1 0014-0064 TOE GUARD RH MIDDLE 0014-0072 TOE GUARD RH MIDDLE 0014-0080 TOE GUARD RH MIDDLE
*4 1 0014-0068 TOE GUARD RH LOWER 0014-0076 TOE GUARD RH LOWER 0014-0084 TOE GUARD RH LOWER
**5 2 DOTH-2041 SCREW CAP SAME SAME
**6 4 DOTH-2207 WASHER SAME SAME
**7 2 DOTH-2131 LOCK NUT SAME SAME
* 1 DKIT-9179 FRTG COMPLETE R&L DKIT-9180 FRTG COMPLETE R&L DKIT-9181 FRTG COMPLETE R&L
9 2 DOTH-2841 CHANNEL WEATHER SEAL DOTH-2840 CHANNEL WEATHER SEAL DOTH-2843 CHANNEL WEATHER SEAL
10 2 DOTH-2824 T-RUBBER WEATHER SEAL DOTH-2824 T-RUBBER WEATHER SEAL CONSULT FACTORY
11 2 DOTH-2822 BRUSH WEATHER SEAL DOTH-2822 BRUSH WEATHER SEAL CONSULT FACTORY
12 2 DOTH-2821 EXTRUSION ALUM. DOTH-2820 EXTRUSION ALUM. CONSULT FACTORY
When ordering toe guards color must be specified.
11
12
10
5
9
6
6
1
2
7
4
3
