McIntosh C50 User Manual

12
IR Sensor receives
commands from a
Remote Control
STANDBY/ON
Push-button with
indicator, switches
the C50 ON or OFF
(Standby) and resets
the microprocessors
VOLUME Control
allows adjustment
of the listening level
for both channels
Connection for low
impedance dynamic
headphones, for
private listening
MUTE Push-button
mutes the audio from
the Loudspeakers and
Headphones
INPUT Control al-
lows the selection of
various sources for
listening and record-
ing
Meter indicates the
Right Channel Output
of the Preamplifier
Meter indicates the
Left Channel Output
of the Preamplifier
OUTPUT 1 and 2
Push-buttons with
indicators, switch the
Preamplifier Outputs
1 and 2 On or Off
INFORMATION DISPLAY
indicates the Sources, Vol-
ume, other Audio Settings,
Operational Functions and
Setup Mode Settings
EQualizer BYPASS
Push-button with indica-
tor, when activated the
audio signal bypasses the
Equalizer Controls, also
used to enter and exit the
Setup Mode
TRIM Push-button
with indicator, allows
selection of various
types of settings
PROCESSOR Push-
button with indicator,
when activated places
an externally connected
signal processor in the
listen signal path
EQUALIZER Controls increase or
decrease the volume levels at the
Center Frequencies of 25Hz, 50Hz,
100Hz, 200Hz, 400Hz, 1,000Hz,
2,500Hz and 10,000Hz

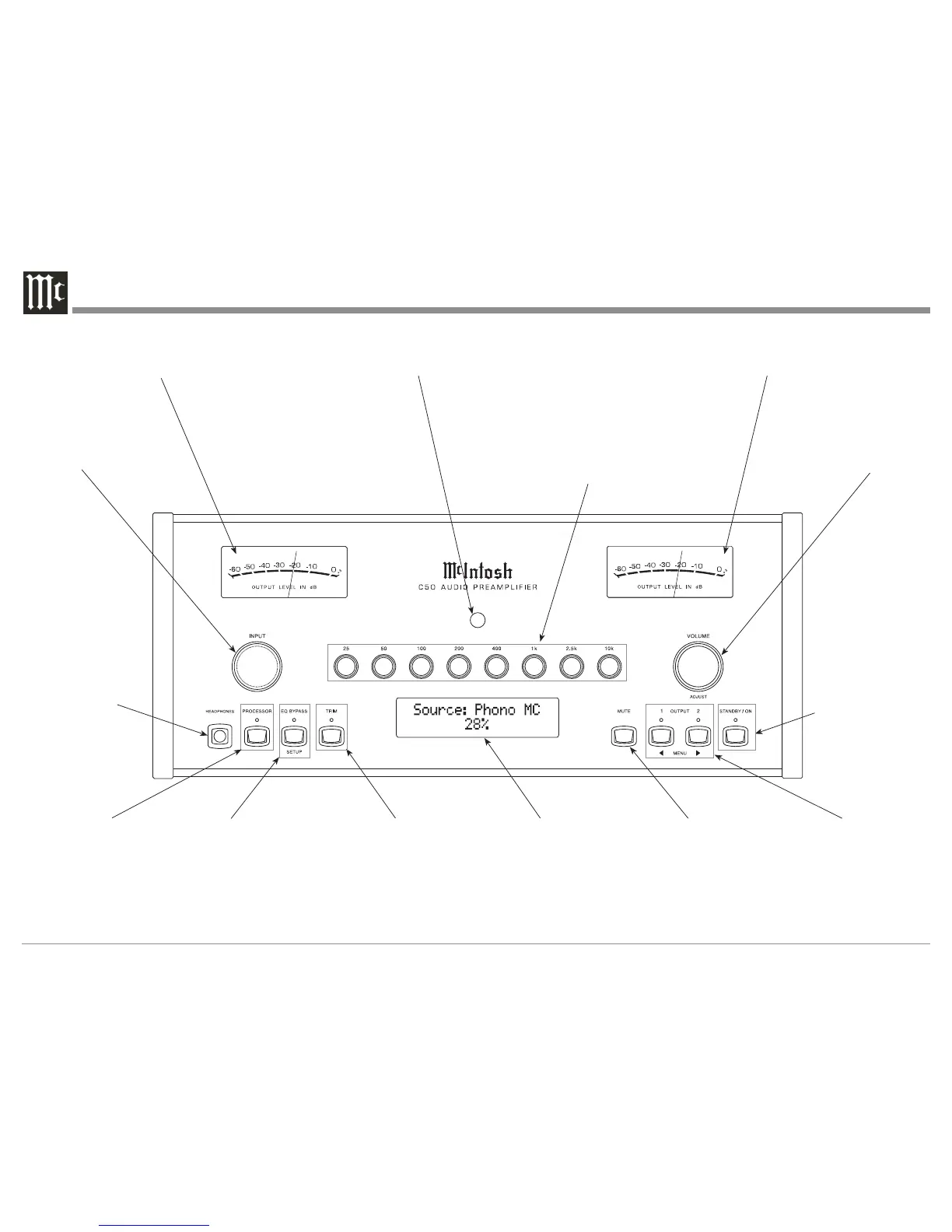

Front Panel Displays, Controls, Push-buttons and Jack

McIntosh C50 Specifications

General

Signal to Noise Ratio	100dB
Output Impedance	200 ohms
Power Consumption	50 Watts
Frequency Response	20Hz to 20, 000Hz +0, -0.5dB
Total Harmonic Distortion	0.002%
Dimensions	17.5" (44.45cm) x 6" (15.24cm) x 18" (45.72cm)
Maximum Output Voltage	16V RMS (Balanced), 8V RMS (Unbalanced)
Gain	15dB
Phono Input Impedance	47K Ohms
Inputs	6 (including phono)
Outputs	3 unbalanced, 2 balanced
