Where to Put It
The MC451 is very heavy� When moving the
unit, have enough help to lift the MC451. This will
ensure the safety of both you and the MC451.
The MC451 should be installed upright on the
is important and will aid in a long trouble-free life
allowing at least 19 inches (48.3cm) above the unit
and 6 inches (15.2cm) for the front, rear and sides.
Do not remove the feet
beneath the MC451. There must be openings for
cool air to enter (below) and warm air to escape
(above) the MC451.
Ventilation
Screw
Hot Surface Tag
Metal Tube Cover
MC451 UNPACK PG2.ai
Cool Air
Warm Air
Dimensions

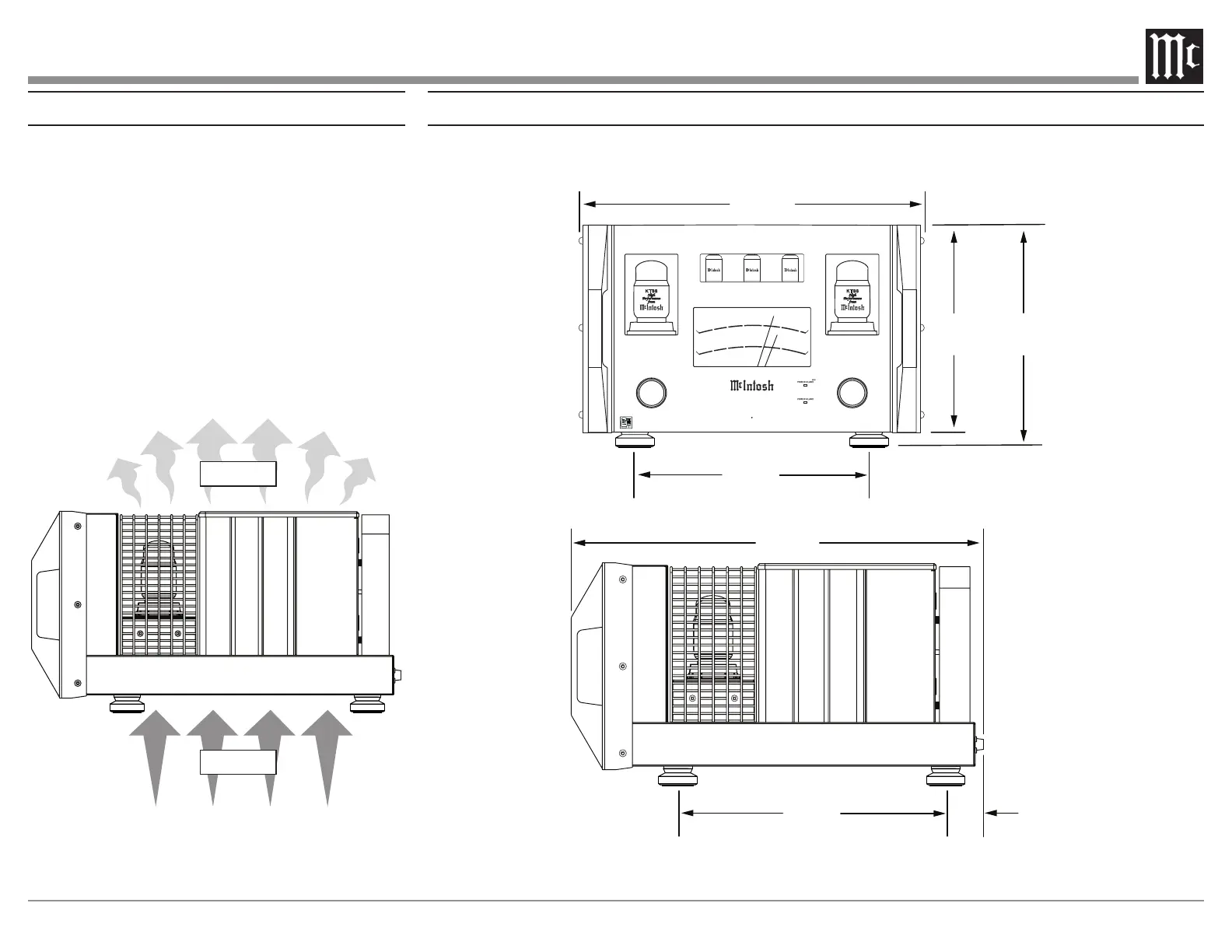

The following dimensions can assist in determining the best location for your MC451.
17 ⁷/8
45.4 cm
21 ¹/2
54.6 cm
14”
35.6 cm
10 ⁷/8
27.6 cm
11¹³/16
30 cm
12 ¹/4
31.1 cm
1 ¹⁵/16
4.9 cm
