Caution: The Loudspeaker Negative Connections are above chassis ground. Do not combine any connections together, ground them or connect with another MC611.
Connect the MC611 power
cord to a live AC outlet. Refer
to the rear panel to determine
the correct voltage
POWER CONTROL IN
receives turn On/Off
signals from a McIntosh
component
UNBALanced INput for an au-
dio cable from a Preamplifier or
A/V Processor audio output
INPUT MODE switch selects between
UNBALanced or BALanced Input
BALanced INput for audio
cables from a Preamplifier or
A/V Processor audio output
BALanced OUTput for
an audio cable to the next
Power Amplifier Input
OUTPUT Connections for
a 2 ohm Loudspeaker

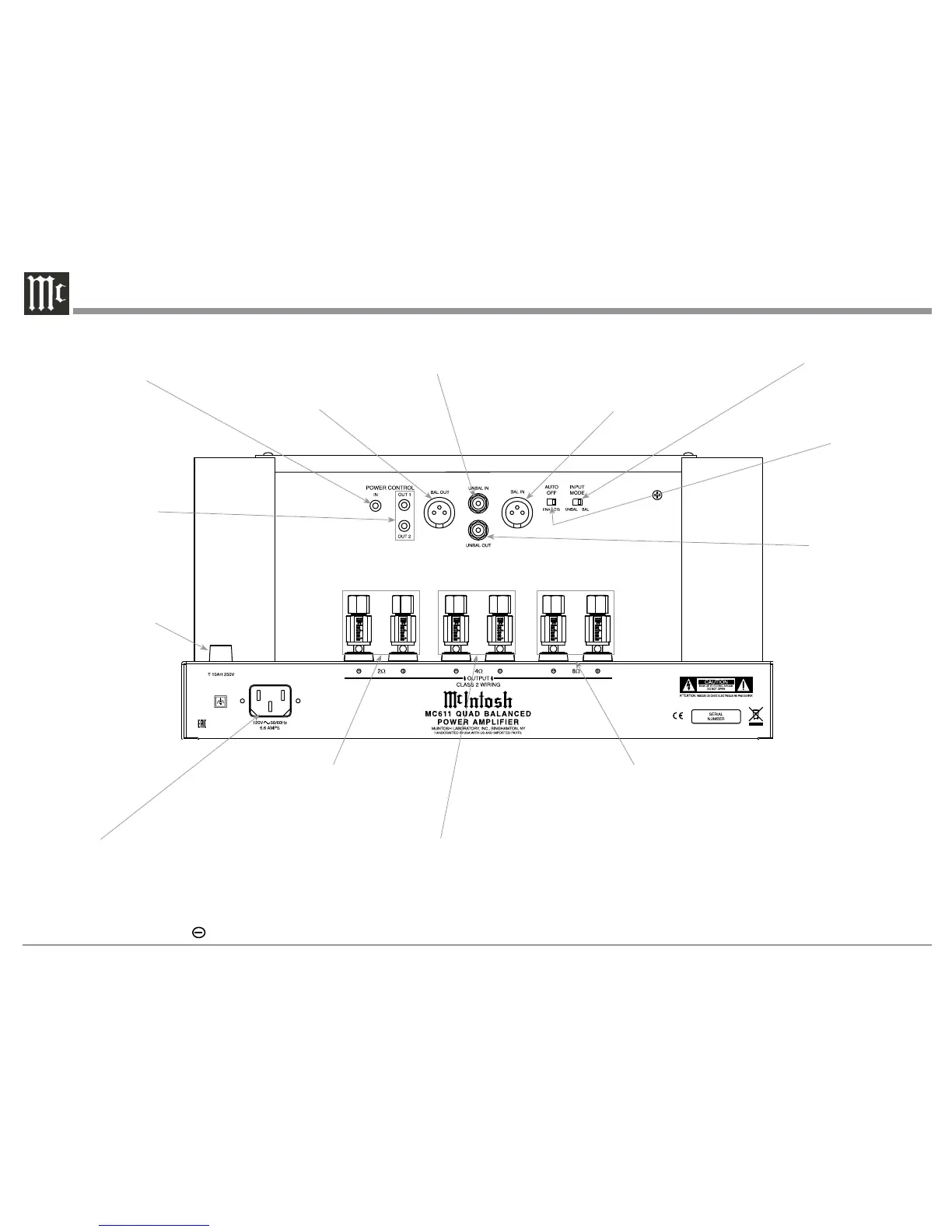

Rear Panel Connections and Switch
Fuse holder, refer to infor-
mation on the rear panel of
your MC611 to determine
the correct fuse size and
rating
OUTPUT Connections for
a 4 ohm Loudspeaker
OUTPUT Connections for
an 8 ohm Loudspeaker
UNBALanced OUTput
for an audio cable to the
next Power Amplifier
Input
POWER CONTROL OUT
1 and 2 send turn On/Off
signals to the next McIn-
tosh Component
AUTO OFF Mode
Switch selects
between ENAbled
or DISabled
