Roll-o for Crossover Points
The following two graphs represent the roll-off
characteristics for various lter crossover settings.
The output will taper starting with the selected
CROSSOVER POINT.

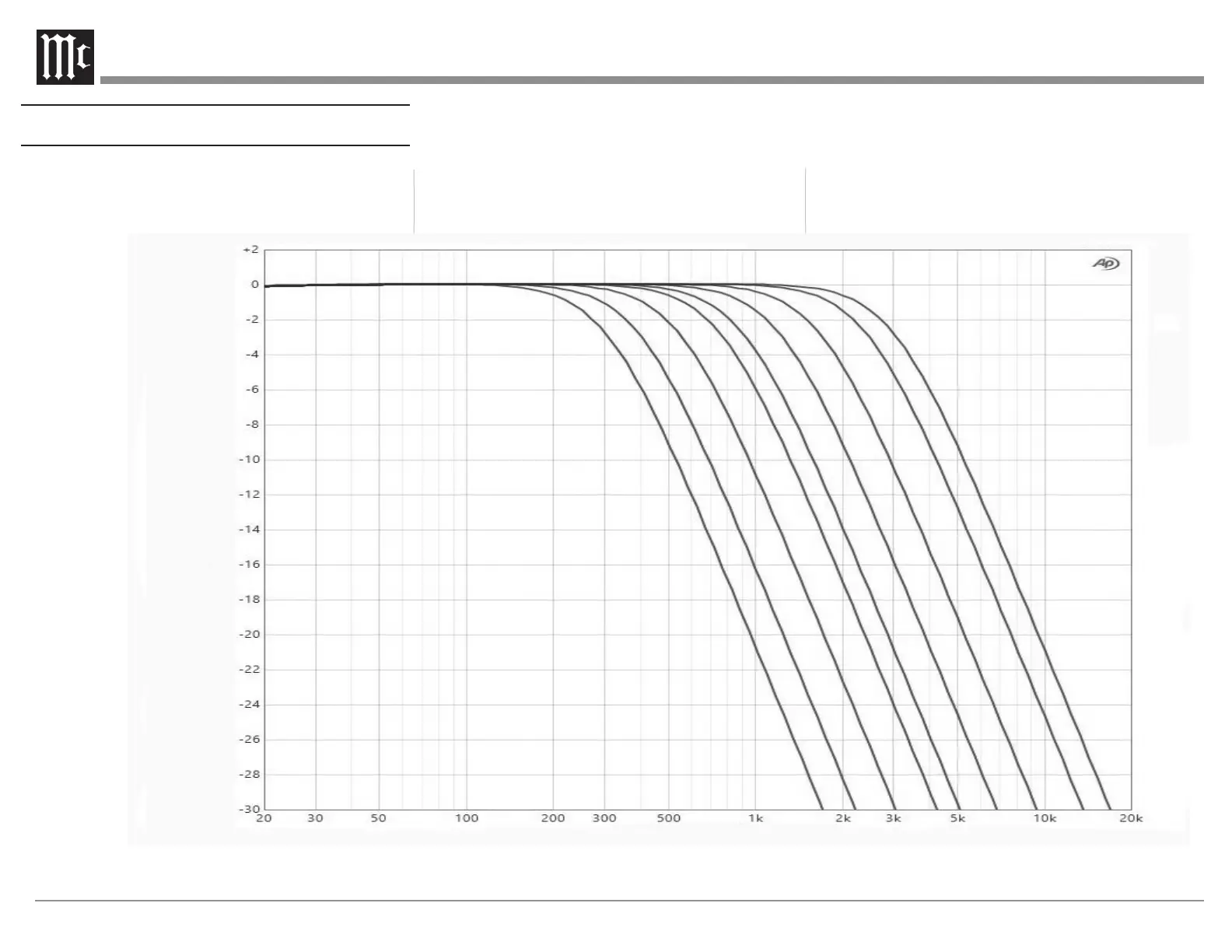

Figure 18– Roll-Off for Low Pass Filter
The lines from left
to right represent the
Crossover Points as
noted on the SOLID
STATE LOW PASS
FILTER Knob:
• 100 (A)
• 130 (B)
• 180 (C)
• 250 (D)
• 300 (E)
• 400 (F)
• 550 (G)
• 800 (H)
• 1000 (I)
(A) (B) (C) (D)(E) (F) (G) (H) (I)
Frequency (Hz)
Decibels
