of the MSA5500 is connected to the Midrange/
Warning: The Loudspeaker System used for
Bi-Amplification must have the jumpers
removed from between the MID/HIGH and
LOW Frequency Sections of the Loudspeaker
System. Failure to remove them could result
in damage to the MSA5500 and/or the
separate Power Amplifier.
MSA5500 Connections:
safe place for possible future use.
2.
Channels on the MSA5500.
Connect the remaining unconnected part of the
connect the MSA5500 Output Terminals to the
Note: The Loudspeaker Connection illustrations on
this page are for the Left Channel. Connect the
Right Channel Loudspeaker in the same manner.

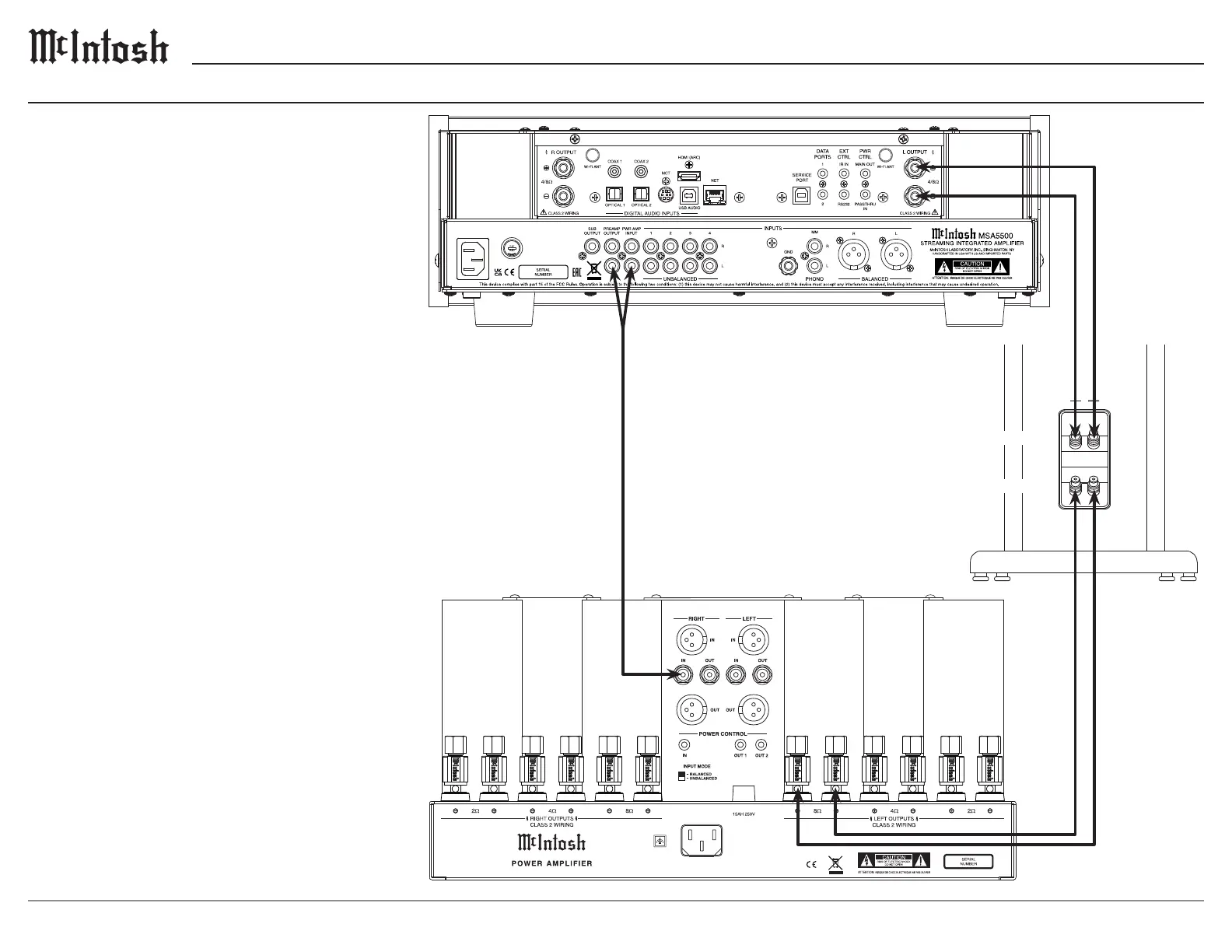

Bi-Amplication Connection Diagram
LOW
MID / HIGH
