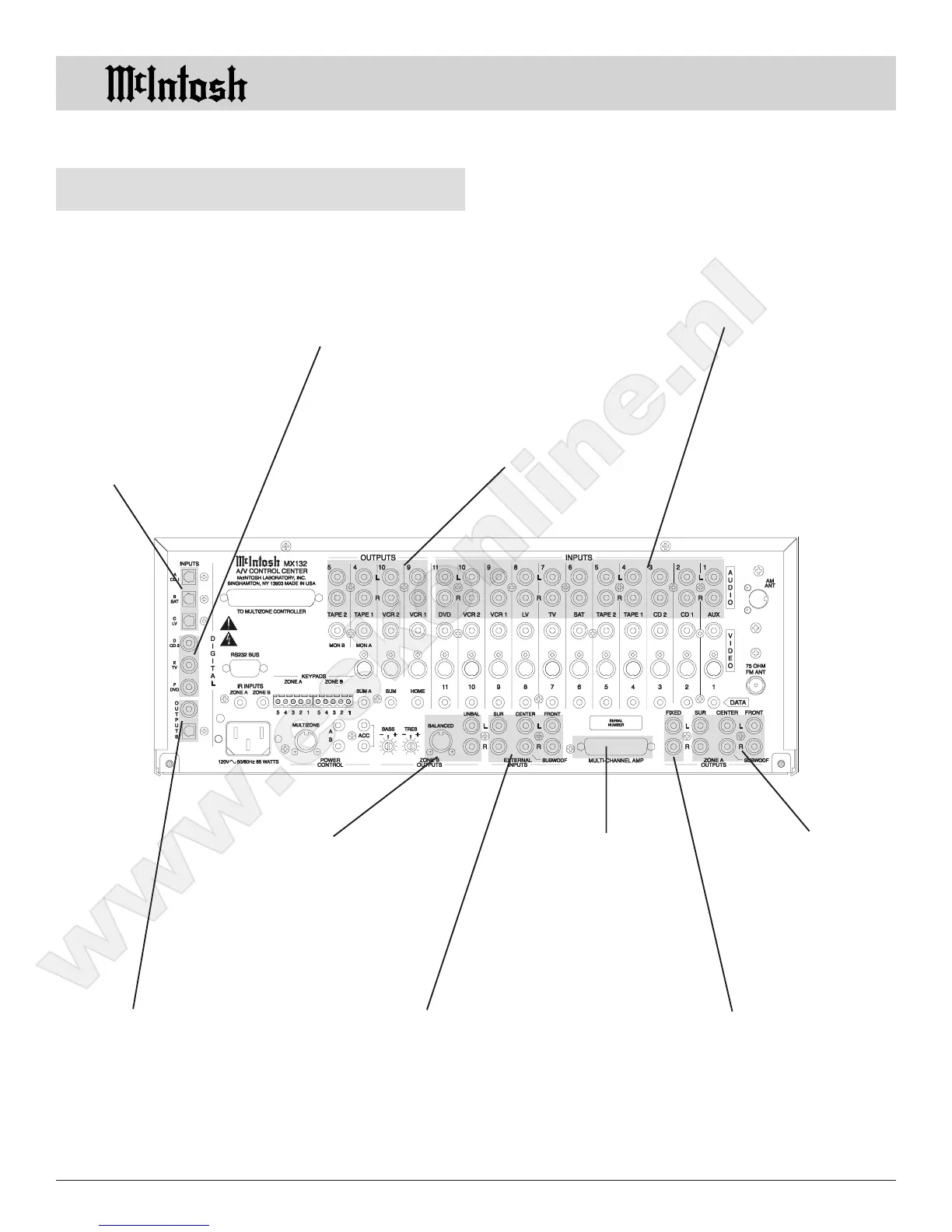

MX132 Rear Panel Audio and Digital
Connections
MX132 Rear Panel Audio and Digital
Connections
MULTI-CHANNEL
AMPlifier connector ac-
cepts a 25 conductor
cable that connects all
audio and power control
signals to a McIntosh
Power Amplifier
INPUTS CD1, SAT, and
LV receive a digital audio
signal from the Optical
Output of a component
INPUTS CD2, TV and DVD
receive a digital audio signal
from the Coaxial Output of
a component
BALANCED and
UNBALANCED
ZONE B OUTPUTS
send signals to the
Zone B Power Am-
plifier inputs
EXTERNAL INPUT
six channel audio input
accepts signals from a
component or external
processor
ZONE A OUTPUTS
send all six audio
channel signals to
power amplifier in-
puts
INPUTS for audio signals from a
DVD, LV, VCR, TV, SAT, CD,
TAPE or AUX components
OUTPUTS TAPE 1, 2, VCR 1
and 2 supply audio record sig-
nals for recorders
OUTPUTS both optical
and coaxial, provides a
digital audio signal to an
external digital processor
ZONE A FIXED
OUTPUTS send a
fixed line level, two
channel analog sig-
nal as selected by the
INPUT A control
