McIntosh MX132

9

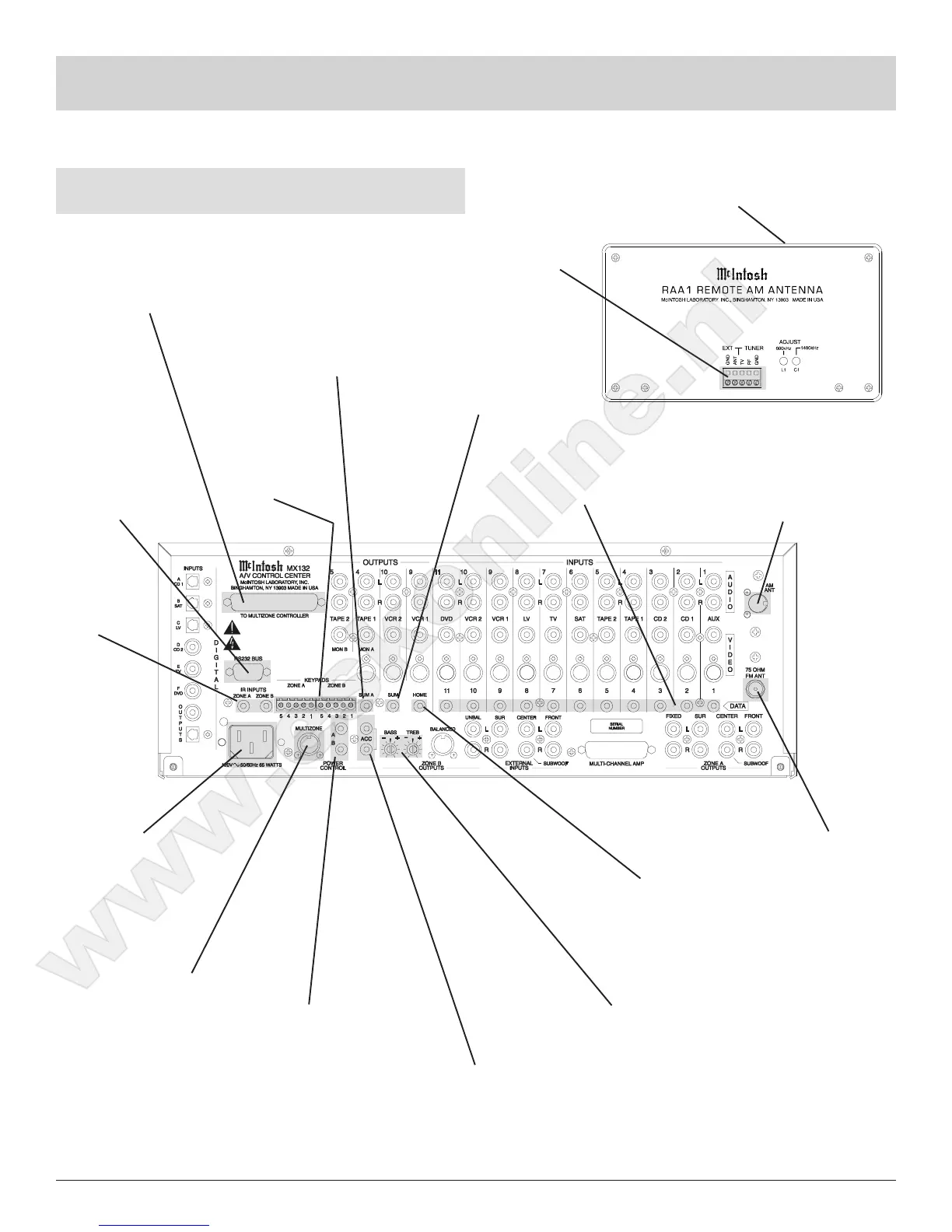

MX132 Rear Panel Multizone, Control
and Antenna Connections
Connect the MX132
power cord to a live
AC outlet. Refer to in-
formation on the back
panel to determine the
correct voltage
A and B sends turn
on/off signals to a
McIntosh Power Am-
plifier for both Areas
MX132 Rear Panel Multizone, Control and
Antenna Connections
ACC sends turn
on/off signals to
McIntosh Source
Components
MULTIZONE sends
turn on/off signals to
a McIntosh Power
Controller
DATA PORTs send signals to
compatible source components to
allow you to remotely control
them
BASS and TREBLE
controls provide
±12dB adjustment
from the flat center
position
TO MULTIZONE
CONTROLLER con-
nects to the McIntosh
Multizone Controller
Input B
RS232 connector
for connection to a
computer or other
control device
75ohm FM ANT
(Antenna) connects
to an external FM
antenna or cable
AM ANT (An-
tenna) connector
allows a McIntosh
Remote Antenna to
be connected
RAA1 Remote Antenna can be adjusted to a
position for optimum reception of your fa-
vorite AM stations
HOME Data Port
connects to the
optional HC-1
Home Controller
SUM Data Port for
Zones A&B connects
to the optional McIn-
tosh Remote Control
Translator
SUM A Data Port for
Zone A connects to
the optional McIntosh
Remote Control
Translator
IR Input for
Zone A or B
external Sen-
sors
KEYPADS
Zone A&B
for a McIn-
tosh Keypad
or IR room
sensor
Connects with
supplied cable to
the MX132
