McIntosh MX136

13
Home Controller
McIntosh Audio Video Player

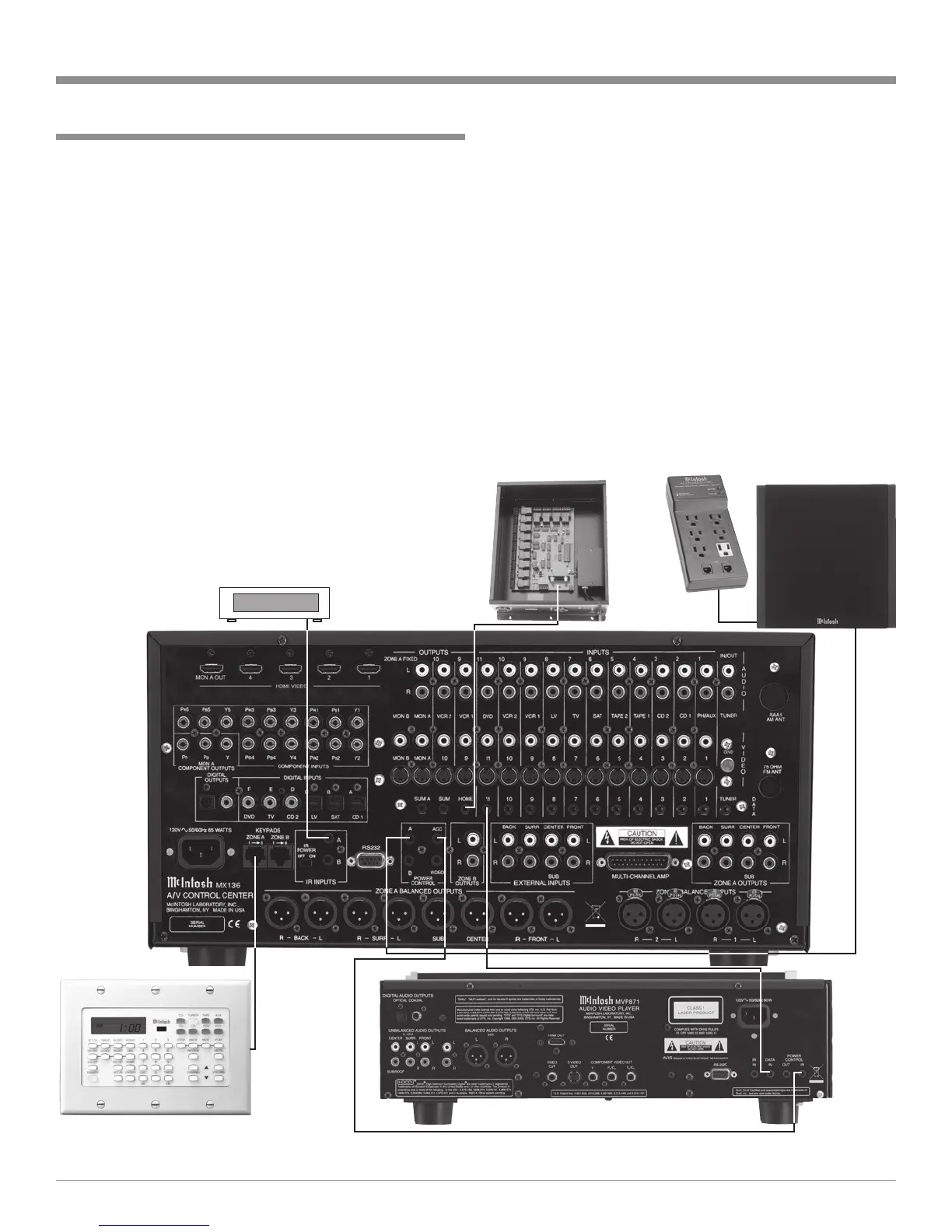

How to Connect Data and Power Control
IR Sensor
1. Connect a Data Control Cable from the MX136 AU-
DIO VIDEO (input 11) Data Port to the McIntosh AU-
DIO VIDEO Player Data In Jack.
Note: By adding a McIntosh Remote Control Translator to
the MX136, non McIntosh Source Devices such as a
Satellite Receiver can be remotely controlled using a
McIntosh Remote Control and Keypads.
2. Connect a Data Control Cable from the MX136 HOME
Data Port to the Home Controller Data In Jack.
3. Connect a 4 conductor shielded cable from the MX136
ZONE A KEYPAD Socket to a McIntosh WK-4 Key-
pad.
4. Connect a Power Control Cable from the MX136
POWER CONTROL ACC Jack to the McIntosh AU-
DIO VIDEO Player Power Control In Jack.
5. Connect a Power Control Cable from the MX136
POWER CONTROL A Jack to the McIntosh Powered
Subwoofer Power Control In Jack.
How to Connect Data and Power Control
6. Connect a Power Control Cable from the McIntosh
Powered Subwoofer Power Control Out Jack to the
McIntosh Power Control AC Outlet Strip Power Con-
trol Jack.
7. Optionally, connect a Data Control Cable from the
MX136 IR INPUTS A to an external IR Sensor.
McIntosh Keypad
McIntosh
Power
Control
McIntosh Powered
Subwoofer
