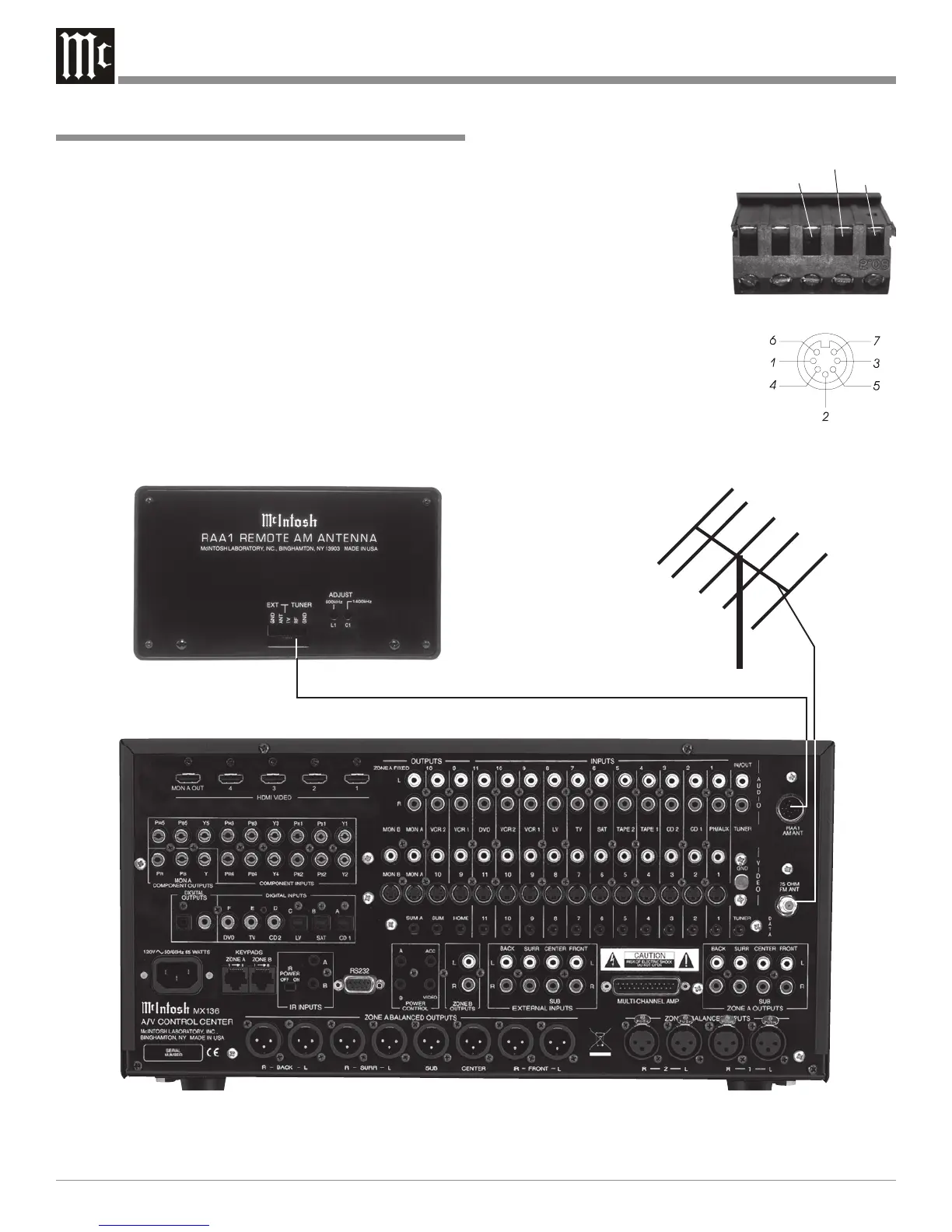

How to Connect Antenna Components
FM Antenna
1. Connect the Remote AM Antenna by plugging the DIN
Connector of the supplied 3 conductor cable into the
AM ANTenna, DIN socket on the back panel of the
MX136.
Note: If a longer length cable needs to be used between the
MX136 and the RAA1, use a 2 conductor shielded
cable.
2. Connect a 75 ohm coax cable from an FM Antenna or
cable system to the MX136, 75 OHM FM ANTenna
Connector.
3. Proceed to page 19 and continue the connection pro-
cess.
How to Connect Antenna Components
RAA1 Connector
Connect the shield and two leads
of a shielded 2 conductor cable to
the supplied 5 Pin Terminal Con-
nector Plug. Refer to the connec-
tion information on the top cover
of the RAA1.
7 Pin DIN Connector
1. Red Wire 5. N/C
2. Black Wire 6. Jumper from Pin 7
3. N/C 7. Green Wire (Shield)
4. N/C and Jumper to Pin 6
Red
Black
Green
To Next Page
