McLaughlin Vision GX2 - 5 Description of Parts & Basic Operation; Transmitter

- 7 -

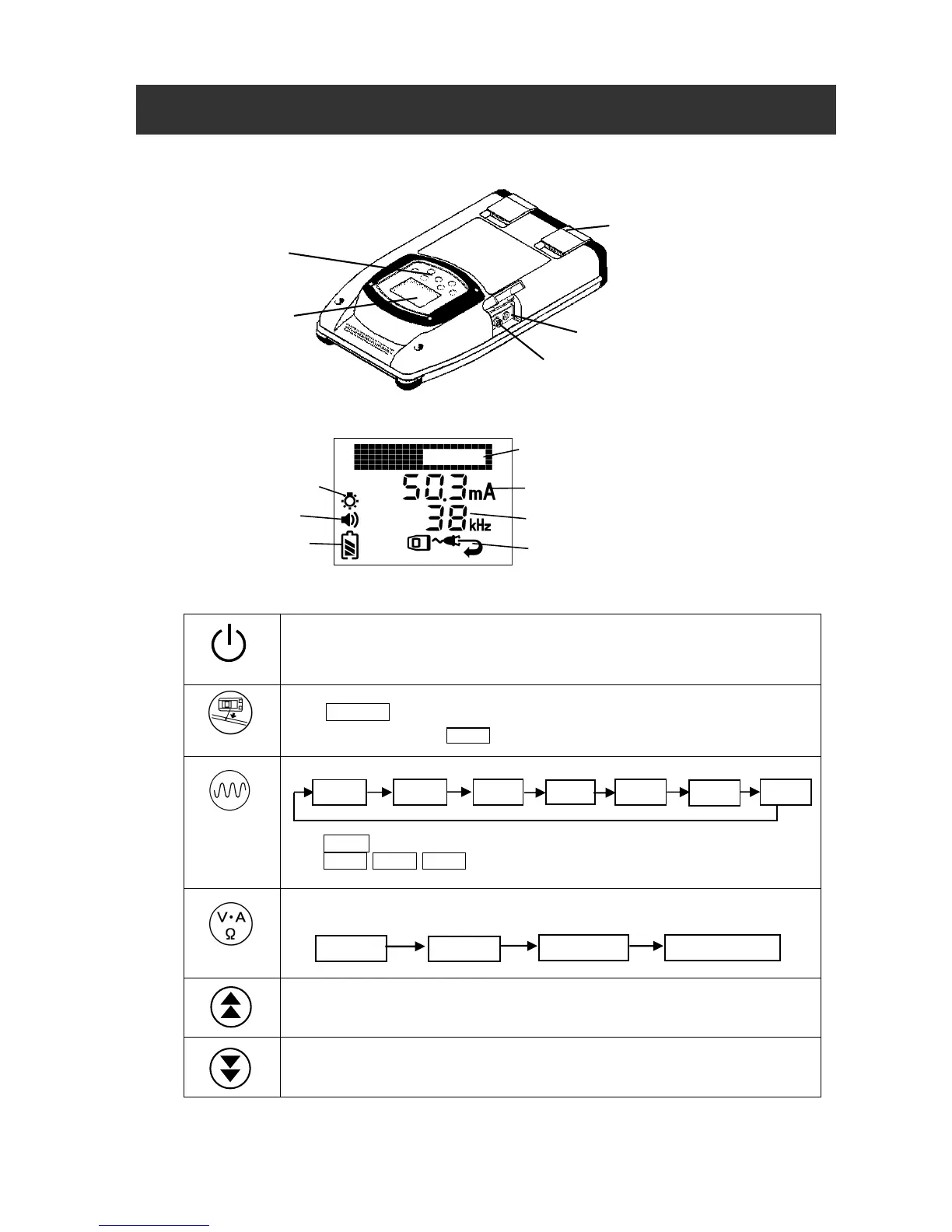

5-1. Transmitter
1) LCD window
2) Key function
Power
Power ON / OFF
*Each time Transmitter is turned on the batteries are automatically checked.
Adjust
Press ADJUST key after hook up to automatically adjust power.
Selects operating frequency.
*1 DUAL : Broadcasts two frequencies simultaneously.
*2 512Hz , 640Hz , 850Hz : Direct mode only.
Measurement the AC voltage, DC voltage,
Re
sistance
or output signal
current when Direct connection mode.
Increase Output power
Reduce Output power
5. Description of parts & basic operation
LCD Window
Battery compartment
Touch pad
12-pin connector
Bar-graph (Output power)
Backlight On / Off
Sou
nd On / Off
Frequency
Battery indication
9.5kHz
80kHz
DUAL
38kHz
*1
*2
DC input
Output Power,/
Meas
urement value
Transmitting mode
Measure
Frequency
AC volts
DC volts
Resistance
Signal current
* Signal isn't outputted until Adjust is pressed when Direct connection mode.
512Hz
853Hz
640Hz
