SimStep Manual - 3400 Iss. D 7
th
June 2004 page 18

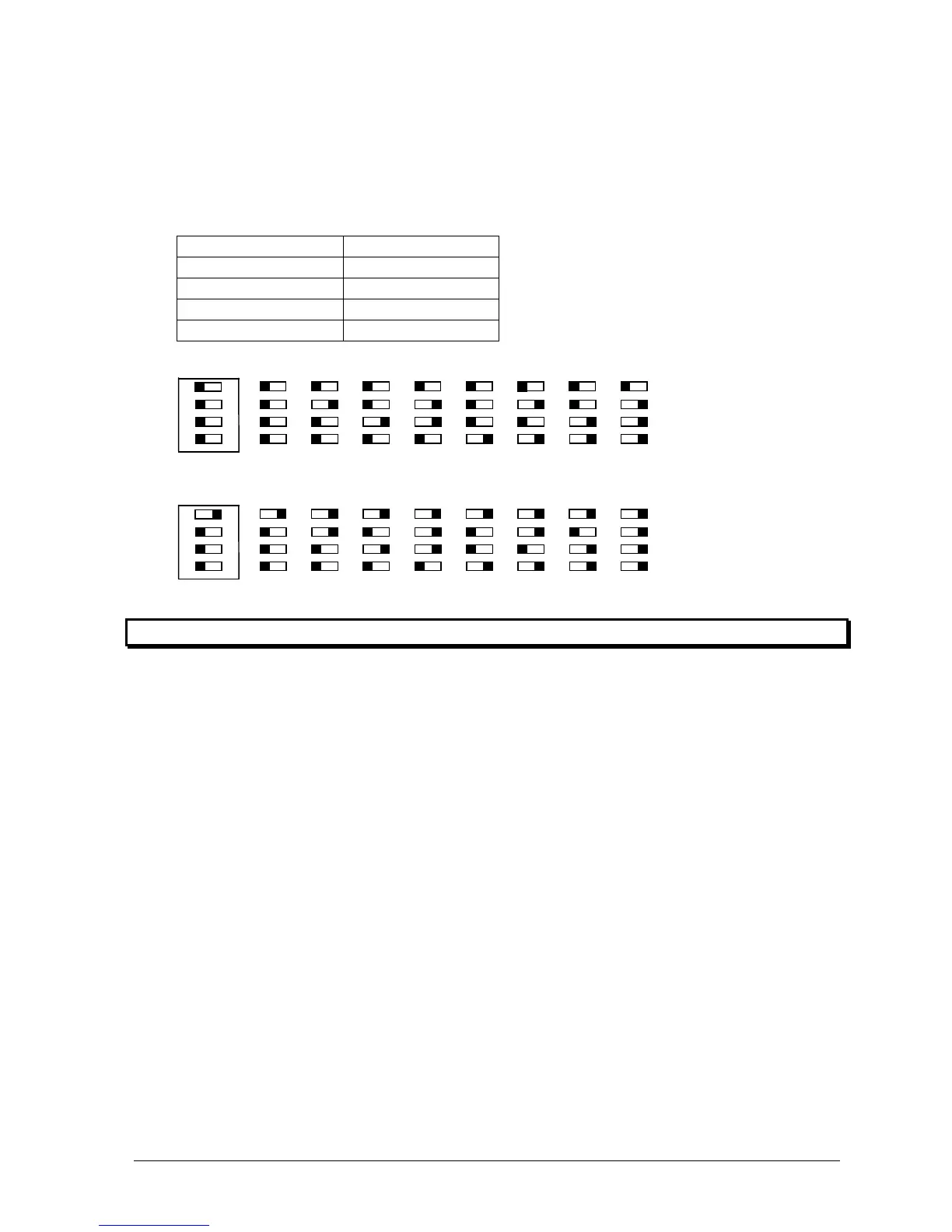

6.3 Other MSE570 Current Settings
The current setting for the motors detailed below when wired with coils in parallel is
3.5A (default).
Current settings for motors wired with coils in series.
Motor Current (A)
23HSX-206 2.1
23HSX-306 2.1
34HSX-108 2.7
34HSX-208 2.7
2
4
3
OnOff
0.0A 0.5A 0.9A 1.2A 1.3A 1.6A 1.85A 2.1A
1
SW2
2
4
3
OnOff
2.3A 2.5A 2.7A 2.9A 3.0A 3.1A 3.3A 3.5A
1
SW2
WARNING! Failure to make the correct current settings can damage the motor
