9 I/O Cable and Breakout Box
Eight inputs (Read Ports) and eight outputs (Write Ports) can be used for external digital
interfacing.
An I/O cable with the ‘breakout’ DIN rail mounting terminal box can be used to interface to
the SimStep without needing to make a special cable.
The I/O breakout box features screw terminals to enable the 16 Digital I/O to be
connected. The unit is DIN rail mounted so that it can be sited next to a typical PLC
control unit

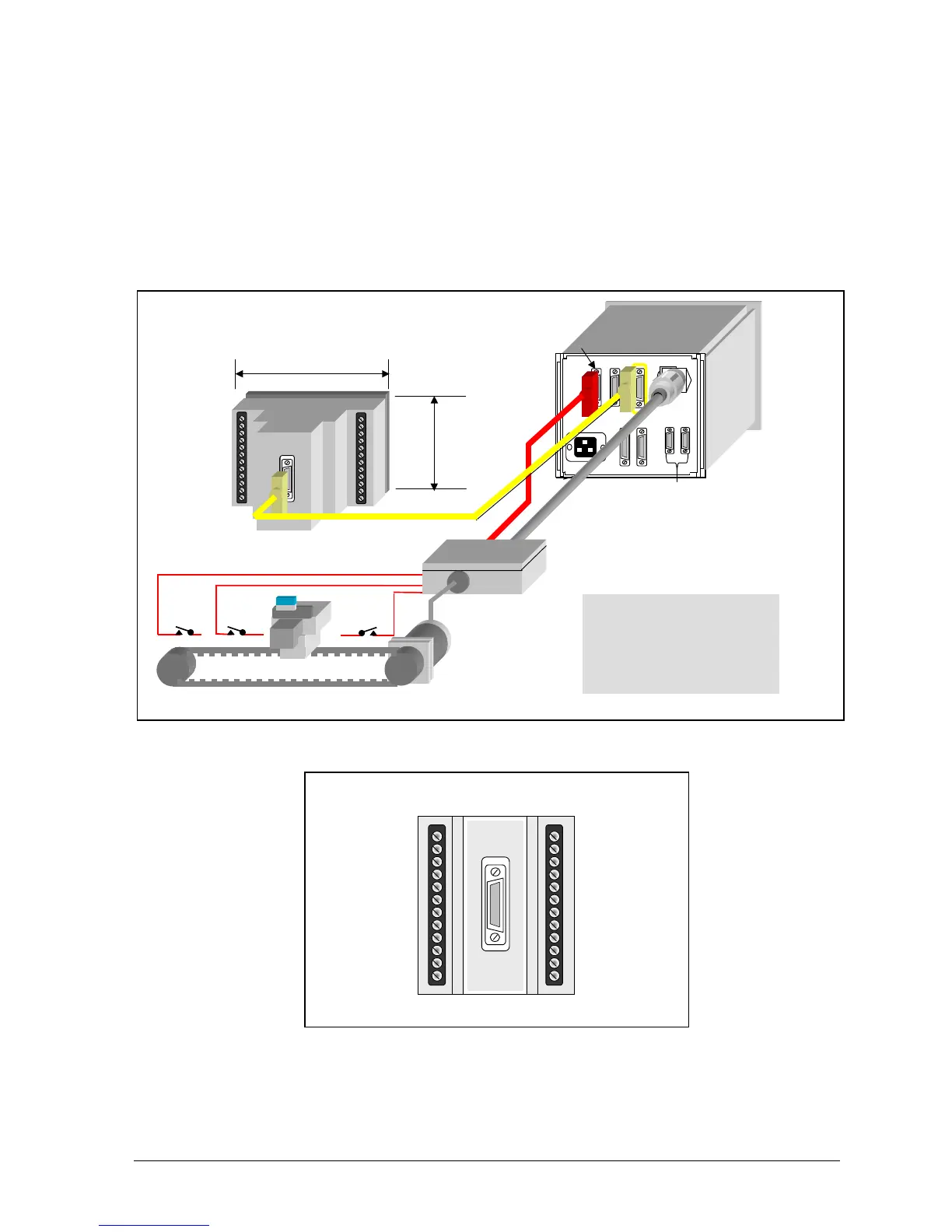

Fig. 9.1 I/O Breakout Box and I/O Cable
Fig. 9.2 I/O Breakout Box Connections
85 mm
70 mm
I O Breakout Box ordering details
- Limit Datum + Limit
I/O Breakout Box 506MSC00891
Motor 1m I/O Cable 507IOC01895
2m I/O Cable 507IOC02895
3m I/O Cable 507IOC03895
5m I/O Cable 507IOC05895
I / O Breakout box 506MSC00891 Connections
:
Output Lines Input Lines
WP1 RP1
WP2 RP2
WP3 RP3
WP4 RP4
WP5 RP5
WP6 RP6
WP7 RP7
WP8 RP8
WP com RP-com
Diode-com N/C
+VLL +VLL
0V 0V
Screw Terminal connections
