Water Pipe Connections
All mini chiller units comes with ∅1-1/4” pipe connections.

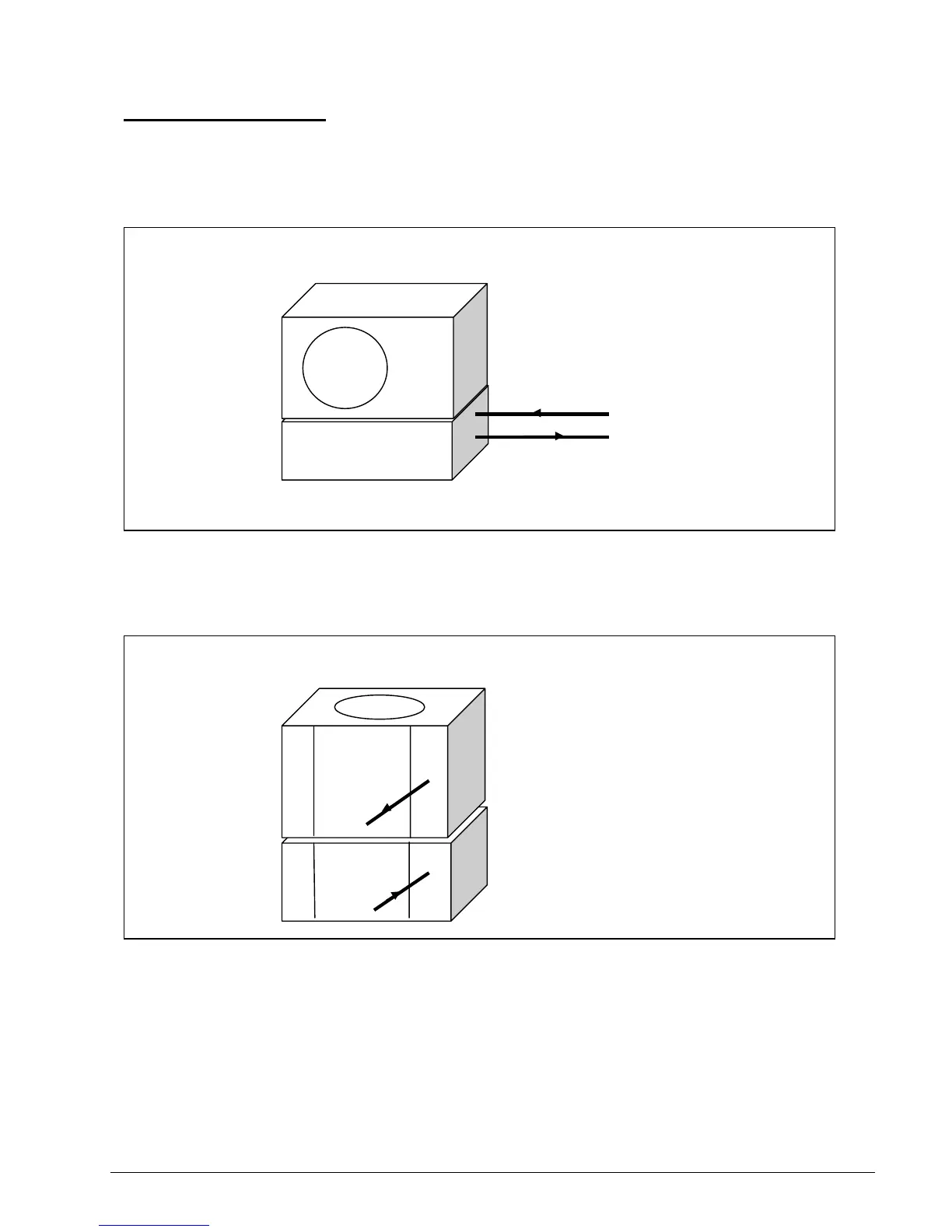

1] A-Series
The pipe connections are on the right-hand side of the unit (when facing the fan blade).
2] B-Series
The pipe connections are on the same side as the control box compartment
Water inlet
Water outlet
Water inlet
Water outlet
