36 IM 676
Dimensional Data

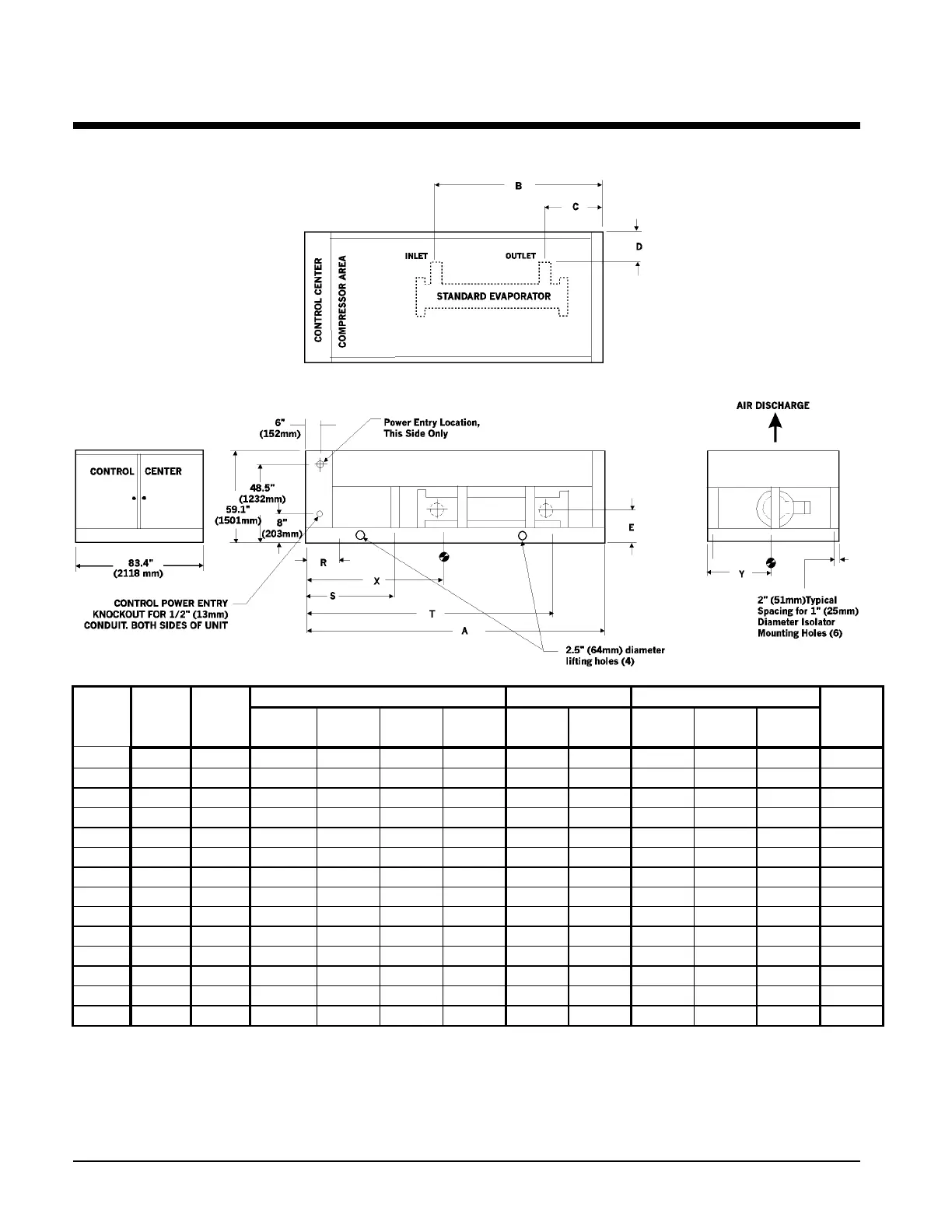

Figure 8, 032E through 100E Dimensions
ALR EVAPORATOR WATER CONNECTIONS CENTER OF GRAVITY ISOLATOR LOCATION NUMBER
UNIT "A" CONN. B C D E X Y R S T OF
SIZE LENGTH SIZE (1) FANS
032E
123 (3124) 4 (102) 96.3 (2446) 11.0 (279) 22.7 (477) 14.9 (378) 55.0 (1397) 41.7 (1059) 13 (330) 43 (1092) 109 (2769) 4
035E
123 (3124) 4 (102) 96.3 (2446) 11.0 (279) 22.7 (477) 14.9 (378) 55.0 (1397) 41.7 (1059) 13 (330) 43 (1092) 109 (2769) 4
040E
123 (3124) 4 (102) 96.3 (2446) 11.0 (279) 22.7 (477) 14.9 (378) 55.0 (1397) 41.7 (1059) 13 (330) 43 (1092) 109 (2769) 4
045E
176 (4470) 4 (102) 98.4 (2499) 13.0 (330) 29.7 (754) 14.9 (378) 77.0 (1956) 41.7 (1059) 13 (330) 58 (1473) 162 (4115) 6
050E
176 (4470) 5 (127) 98.4 (2499) 13.0 (330) 28.6 (726) 15.9 (404) 77.0 (1956) 41.7 (1059) 13 (330) 58 (1473) 162 (4115) 6
055E
176 (4470) 5 (127) 98.4 (2499) 13.0 (330) 28.6 (726) 15.9 (404) 77.0 (1956) 41.7 (1059) 13 (330) 58 (1473) 162 (4115) 6
060E
176 (4470) 5 (127) 98.4 (2499) 13.0 (330) 28.6 (726) 15.9 (404) 77.0 (1956) 41.7 (1059) 13 (330) 58 (1473) 162 (4115) 6
065E
176 (4470) 5 (127) 98.4 (2499) 13.0 (330) 28.6 (726) 15.9 (404) 77.0 (1956) 41.7 (1059) 13 (330) 58 (1473) 162 (4115) 6
070E
229 (5817) 5 (127) 150.6 (3825) 66.8 (1697) 28.6 (726) 15.9 (404) 90.0 (2286) 41.7 (1059) 13 (330) 58 (1473) 215 (5461) 8
075E
229 (5817) 5 (127) 150.6 (3825) 66.8 (1697) 28.6 (726) 15.9 (404) 90.0 (2286) 41.7 (1059) 13 (330) 58 (1473) 215 (5461) 10
080E
229 (5817) 5 (127) 150.6 (3825) 66.8 (1697) 28.6 (726) 15.9 (404) 90.0 (2286) 41.7 (1059) 13 (330) 58 (1473) 215 (5461) 10
085E
229 (5817) 6 (152.4) 117.6 (2987) 13.8 (351) 28.6 (726) 19.5 (495) 88.0 (1059) 41.7 (1059) 13 (330) 58 (1473) 215 (5461) 10
090E
229 (5817) 6 (152.4) 117.6 (2987) 13.8 (351) 28.6 (726) 19.5 (495) 88.0 (1059) 41.7 (1059) 13 (330) 58 (1473) 215 (5461) 10
100E
229 (5817) 6 (152.4) 117.6 (2987) 13.8 (351) 28.6 (726) 19.5 (495) 104.7 (2659) 41.7 (1059) 13 (330) 58 (1473) 215 (5461) 10
