IOMM ACZ/AGZ-1 11
Table 6, Capacity and Power Derates
Fouling FactorChilled Water
Delta-T
0.00025 (0.044) 0.00075 (0.132) 0.00175 (0.308)ALTITUDE
°F °C Cap. kW Cap. kW Cap. kW
6 3.3 0.992 0.995 0.996 0.982 0.911 0.935
8 4.4 0.995 0.997 0.969 0.984 0.914 0.937
10 5.6 1.000 1.000 0.975 0.986 0.919 0.939
12 6.7 1.005 1.002 0.980 0.989 0.923 0.941
14 6.8 1.010 1.005 0.985 0.991 0.928 0.943
SEA
LEVEL
16 8.9 1.014 1.007 0.989 0.993 0.930 0.944
6 3.3 0.978 1.005 0.957 0.990 0.903 0.943
8 4.4 0.982 1.007 0.961 0.993 0.905 0.945
10 5.6 0.986 1.009 0.965 0.995 0.909 0.947
12 6.7 0.992 1.011 0.970 0.998 0.914 0.949
14 6.8 0.997 1.014 0.973 1.001 0.919 0.952
2000 ft.
610 m
16 8.9 1.000 1.016 0.975 1.002 0.921 0.953
6 3.3 0.966 1.016 0.944 0.999 0.894 0.951
8 4.4 0.969 1.018 0.947 1.001 0.896 0.953
10 5.6 0.973 1.021 0.952 1.005 0.900 0.956
12 6.7 0.978 1.025 0.956 1.008 0.904 0.958
14 6.8 0.982 1.027 0.959 1.011 0.909 0.960
4000 ft.
1220 m
16 8.9 0.986 1.028 0.961 1.015 0.911 0.961
6 3.3 0.953 1.025 0.930 1.009 0.884 0.961
8 4.4 0.955 1.028 0.934 1.011 0.887 0.962
10 5.6 0.959 1.031 0.939 1.013 0.890 0.964
12 6.7 0.963 1.034 0.942 1.017 0.895 0.966
14 6.8 0.968 1.036 0.946 1.020 0.899 0.968
6000 ft.
1830 m
16 8.9 0.972 1.037 0.949 1.024 0.902 0.969

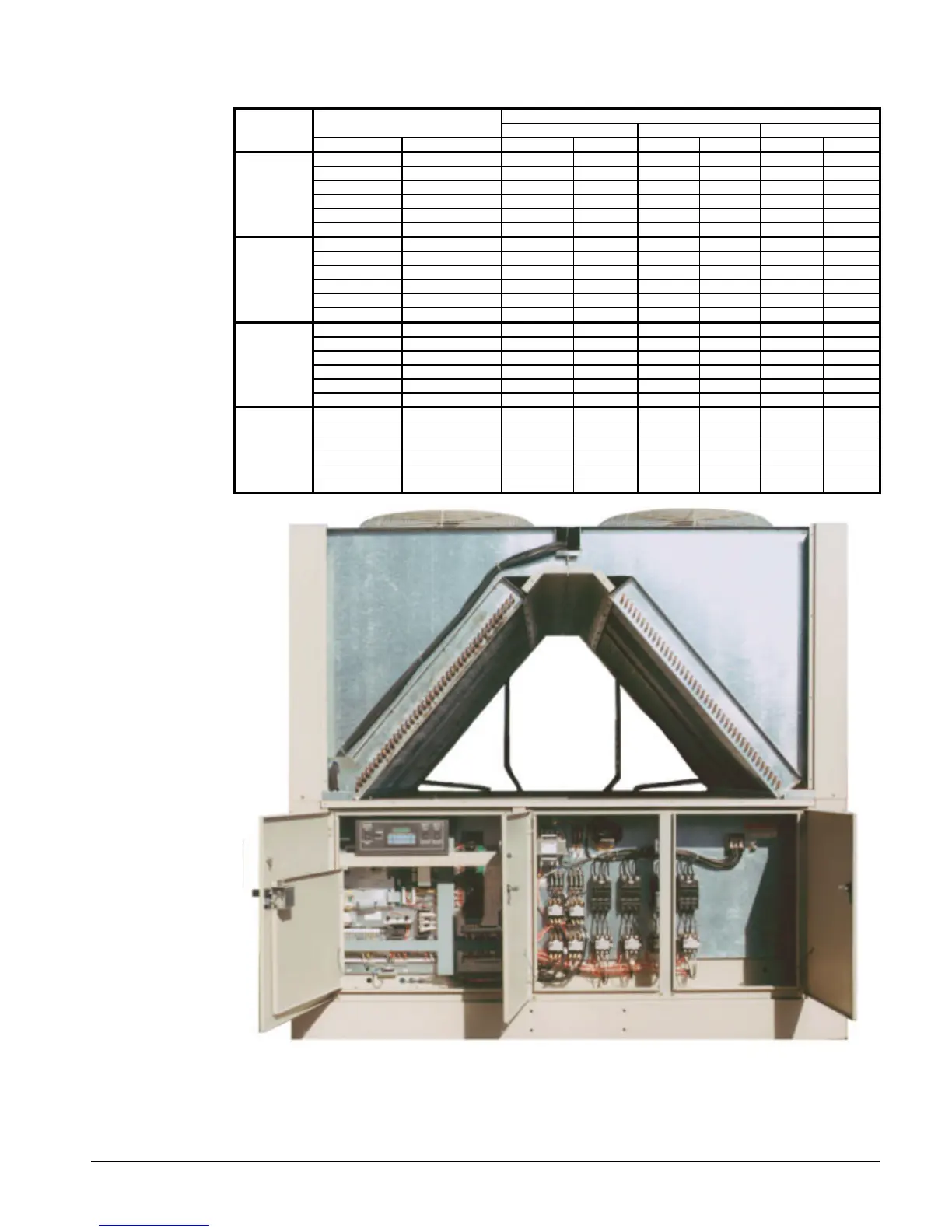

AGZ-AM with Upper Panels Removed
