36 IOMM ACZ/AGZ-1
Dimensional Data
AGZ-AM
ACZ

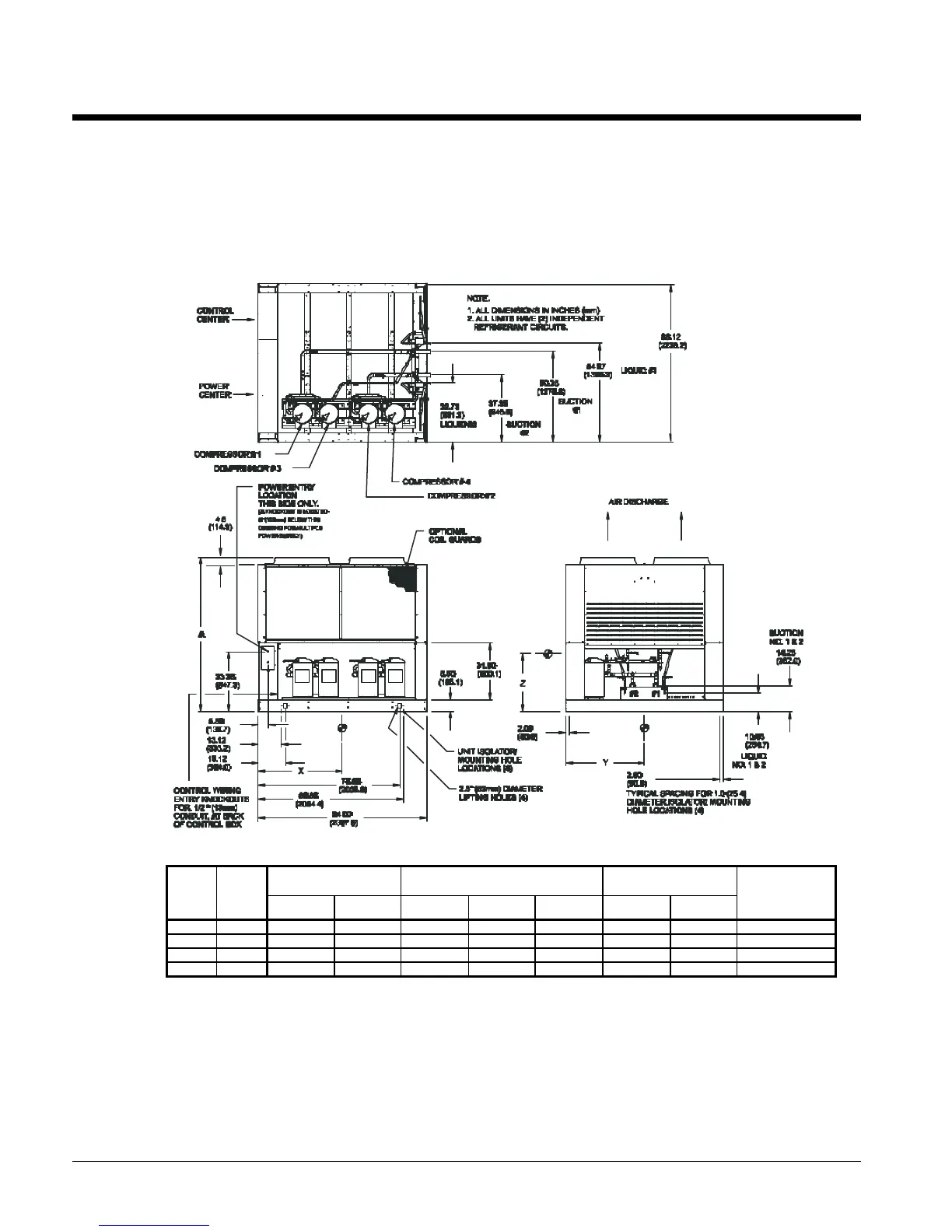

Figure 21, Dimensions AGZ 035AM - 050AM and ACZ 045A - 055A
DIMENSIONS
inches (mm)
CENTER OF GRAVITY
inches (mm)
UNIT WEIGHTS
lbs (kgs)
ACZ
MODEL
NUMBE
R
AGZ
MODEL
NUMBE
R
A B X Y Z OPERATING SHIPPING
ADD’L. WEIGHT
FOR COPPER
FINS lbs (kgs)
035AM 86.2 (2190) 81.7 (2075) 42.8 (1087) 35.9 (911) 40.0 (1016) 3000 (1361) 2940 (1334) 445 (200)
045A 040AM 86.2 (2190) 81.7 (2075) 42.8 (1087) 36.0 (914) 39.9 (1013) 3055 (1386) 2995 (1359) 445 (200)
050A 045AM 86.2 (2190) 81.7 (2075) 42.8 (1087) 35.2 (894) 40.3 (1024) 3095 (1404) 3025 (1372) 445 (200)
055A 050AM 86.2 (2190) 81.7 (2075) 42.8 (1087) 35.3 (897) 40.3 (1024) 3145 (1427) 3075 (1395) 445 (200)
