Vibration Isolators
Vibration isolators are recommended for all roof mounted installations or wherever vibration
transmission is a consideration.
Table 1 and Table 2 list isolator point loads for all unit sizes, Figure 4 shows isolator locations. See
Dimensional Data for detailed dimensions required to secure each isolator to the mounting surface.
The spring flex isolators are white type CP2-32, McQuay part number 047792932. A total of four per
unit is required.

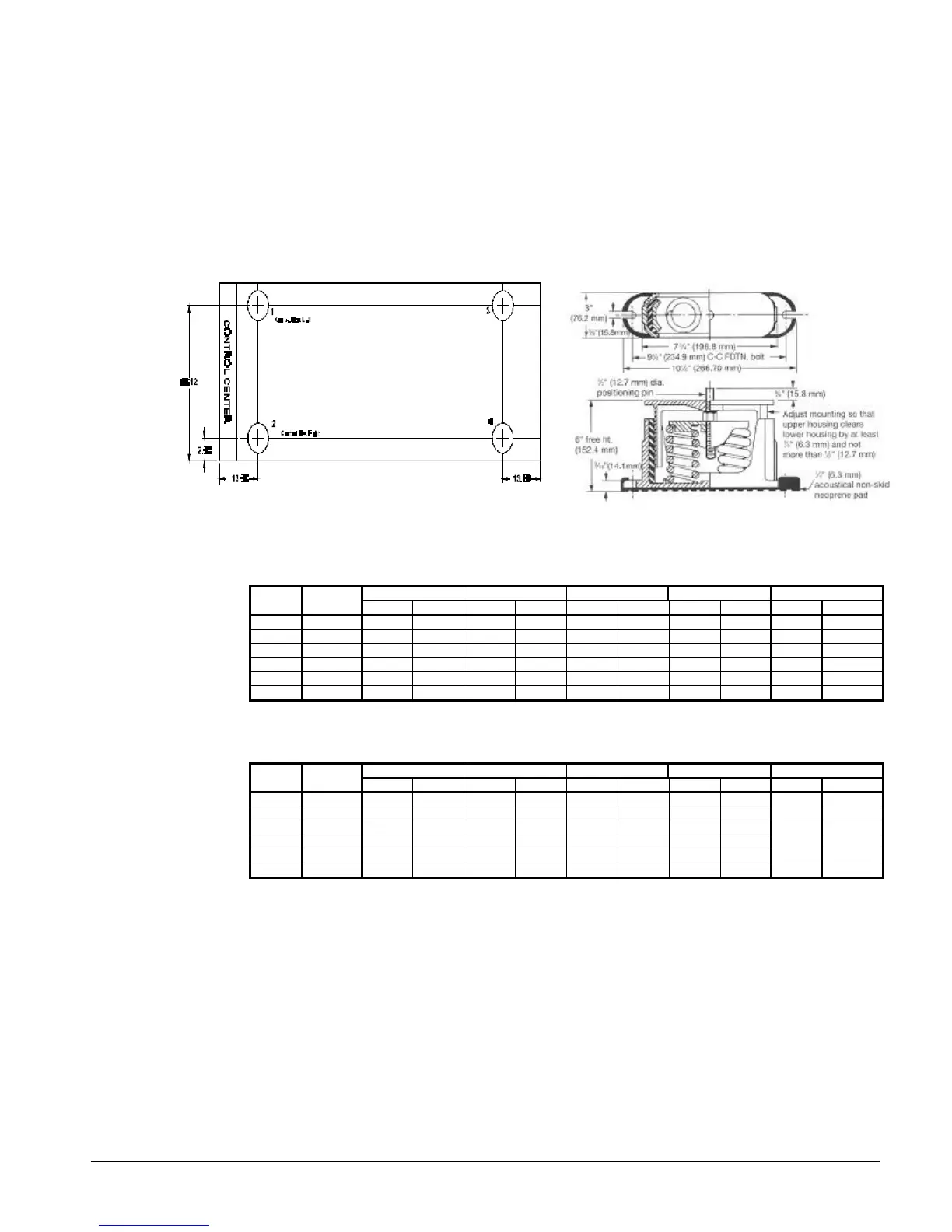

Figure 4, Isolator Locations Spring Isolator Dimensions
Table 1 , Isolator Loads At Each Mounting Location With Aluminum Fins
ACZ AGZ-AM 1 2 3 4 Total Unit
Size Size lb kg lb kg lb kg lb kg lb kg
030A - 838 380 944 428 773 351 870 395 3425 1554
035A 030AM 838 380 944 428 773 351 870 395 3425 1554
040A 035AM 850 386 960 435 785 356 885 401 3480 1579
045A 040AM 864 392 974 442 797 362 900 408 3535 1603
050A 045AM 928 421 1048 475 858 389 966 438 3800 1724
055A 050AM 940 426 1062 482 868 394 980 445 3850 1746
Table 2, Isolator Loads At Each Mounting Location With Copper Fins
ACZ AGZ-Am 1 2 3 4 Total Unit
Size Size lb kg lb kg lb kg lb kg lb kg
030A - 946 429 1066 484 873 396 985 447 3870 1755
035A 030AM 946 429 1066 484 873 396 985 447 3870 1755
040A 035AM 960 435 1082 491 886 402 997 452 3925 1780
045A 040AM 973 441 1096 497 899 408 1012 459 3980 1805
050A 045AM 1038 471 1170 531 958 435 1079 489 4245 1926
055A 050AM 1050 476 1184 537 970 440 1091 495 4295 1948
