McQuay GZ 035AM User Manual

IOMM ACZ/AGZ-1 37
CDE

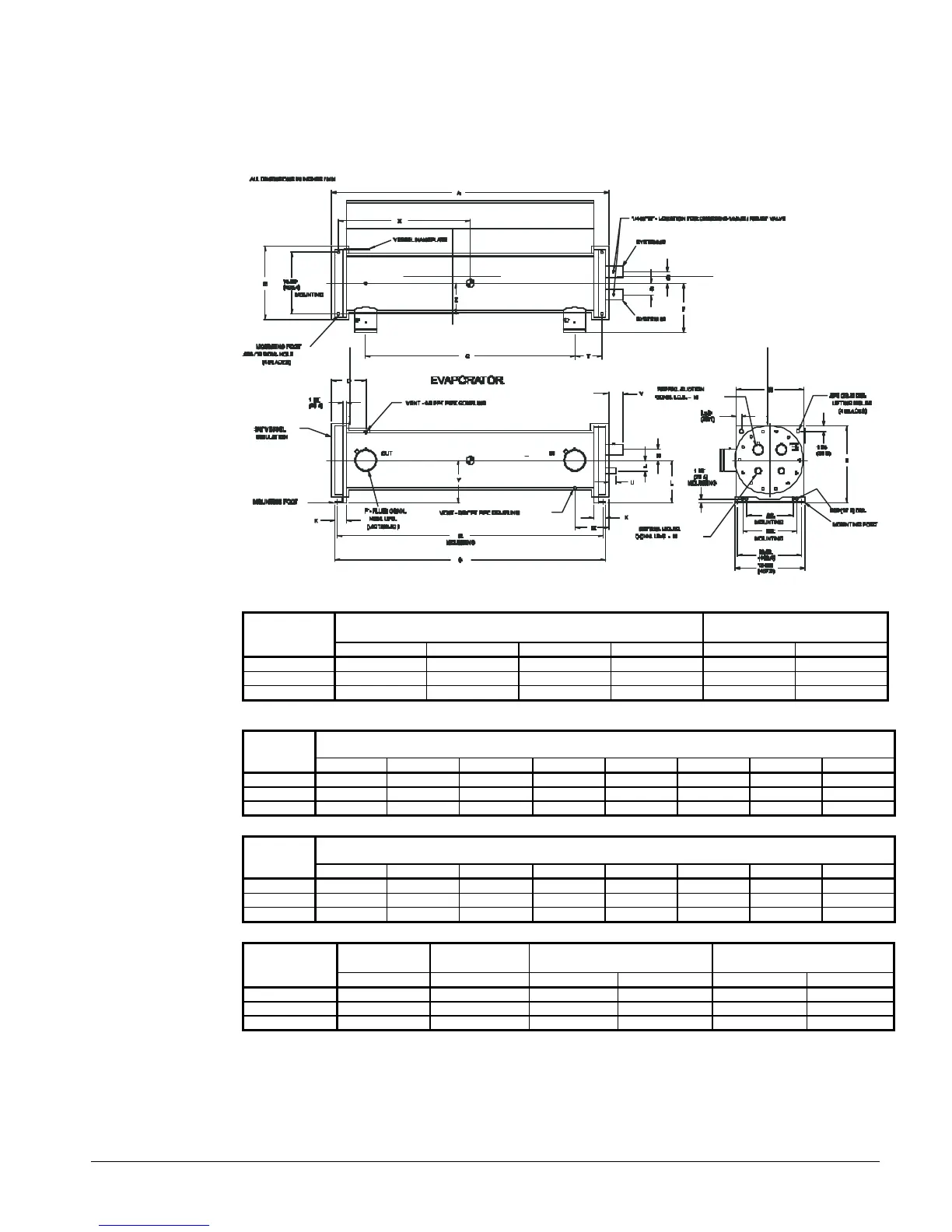

Figure 22, CDE 1004-1 - 1204-3
WATER CONNECTION
INCHES (mm)
REFRIGERANT CONNECTION
INCHES (mm)
CDE
MODEL
NUMBER
C L P T M N
CDE-1004-1 39.3 (998) 8.5 (216) 4.0 (102) 5.4 (137) 1 5/8 (41) 1 3/8 (35)
CDE-1204-3 39.3 (998) 9.5 (241) 4.0 (102) 5.4 (137) 1 5/8 (41) 1 3/8 (35)
CDE-1204-2 39.3 (998) 9.5 (241) 4.0 (102) 5.4 (137) 2 1/8 (54) 1 3/8 (35)
DIMENSIONAL DATA
INCHES (mm)
CDE
MODEL
NUMBER
A B D E F G H J
CDE-1004-1 52.5 (1334) 15.5 (394) 6.6 (168) 16.3 (414) 11.1 (282) 2.0 (51) 2.0 (51) 2.0 (51)
CDE-1204-3 53.5 (1359) 17.5 (445) 7.1 (180) 17.5 (445) 12.1 (307) 2.3 (58) 2.0 (51) 2.0 ((51)
CDE-1204-2 53.5 (1359) 17.5 (445) 7.1 (180) 17.5 (445) 12.1 (307) 2.3 (58) 2.0 (51) 2.5 (64)
DIMENSIONAL DATA
INCHES (mm)
CDE
MODEL
NUMBER
K R S U V W AA BB
CDE-1004-1 3.0 (76) 50.0 (1270) 52.0 (1321) 1.8 (45) 2.8 (71) 14.0 (356) 12.0 (305) ----
CDE-1204-3 3.0 (76) 50.0 (1270) 52.0 (1321) 1.8 (45) 2.8 (71) 16.0 (406) ---- 14.0 (356)
CDE-1204-2 3.0 (76) 50.0 (1270) 52.0 (1321) 1.8 (45) 2.8 (71) 16.0 (406) ---- 14.0 (356)
WATER
VOLUME
REFRIGERANT
VOLUME
OPERATING CHARGE R-22
LBS (kgs)
UNIT WEIGHTS
LBS (kgs)
CDE
MODEL
NUMBER
GAL (litre) CU. FT. (cu.m) SYSTEM #1 SYSTEM #2 OPERATING SHIPPING
CDE-1004-1 9.1 (34.4) 0.83 (.0235) 1.9 (.86) 1.9 (.86) 555 (252) 540 (245)
CDE-1204-3 12.8 (48.4) 1.25 (.0353) 2.8 (1.27) 2.8 (1.27) 777 (352) 745 (338)
CDE-1204-2 12.8 (48.4) 1.25 (.0353) 2.8 (1.27) 2.8 (1.27) 777 (352) 745 (338)
