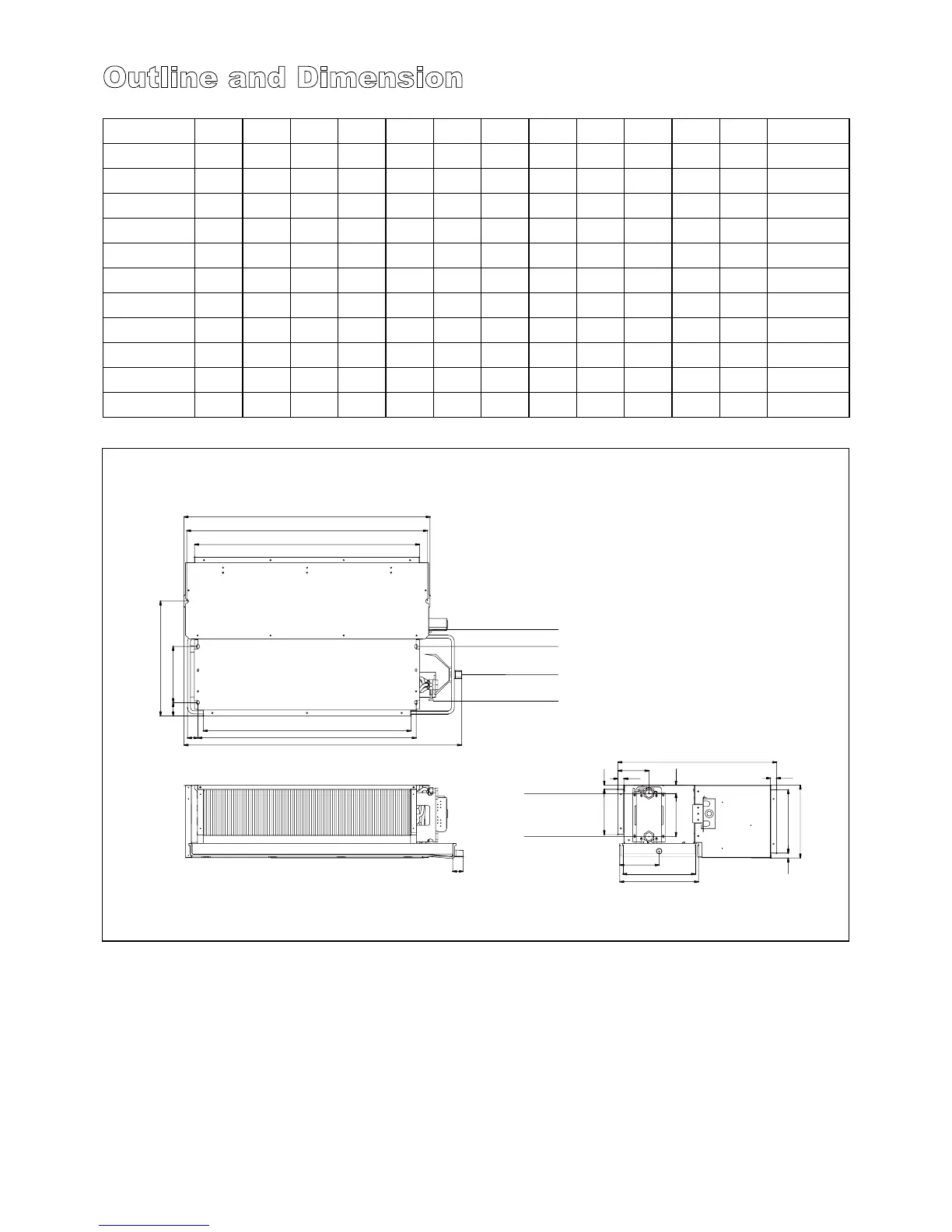

Outline and Dimension
NOTES:
1) ALL DIMENSIONS ARE IN MM;
2) ALL STANDARD UNITS ARE WITH BACK AIR PLENUM AND BOTTOM REMOVAL FILTERS;
3) WHEN SELECT EXTENDED DRAIN PAN,PLEASE ADD THE INCREMENT TO THE LENGTH ACCORDINGLY.
4) RIGHT HAND COIL CONNECTION SHOWN;
5) WIRING CONNECTION SIDE IS THE SAME AS COIL AND DRAIN CONNECTIONS.
Model A B C D E F G H I J K L Fan number
MCW200DA 677 452 487 469 522 540 151 143 530 211 243
382
1
MCW300DA 827 592 627 649 702 820 151 143 530 211 243
382
2
MCW400DA 927 692 727 749 802 820 151 143 530 211 243
382
2
MCW500DA 997 772 807 789 842 860 151 143 530 211 243
382
2
MCW600DA 1097 872 907 889 942 960 151 143 530 211 243
382
2
MCW800DA 1427 1202 1237 1219 1272 1290 151 143 530 211 243
382
3
MCW900DA 1537 1302 1337 1359 1412 1420 151 143 530 211 243
382
4
MCW1000DA
1727 1502 1537 1519 1572 1580 151 143 530 211 243 382 4
MCW1200DA 1427 1202 1237 1219 1272 1290 201 194 600 266 297 413 3
MCW1400DA 1527 1302 1337 1319 1372 1390 201 194 600 266 297 413 3
MCW1600DA 1827 1602 1637 1619 1672 1690 201 194 600 266 297 413 4
