15

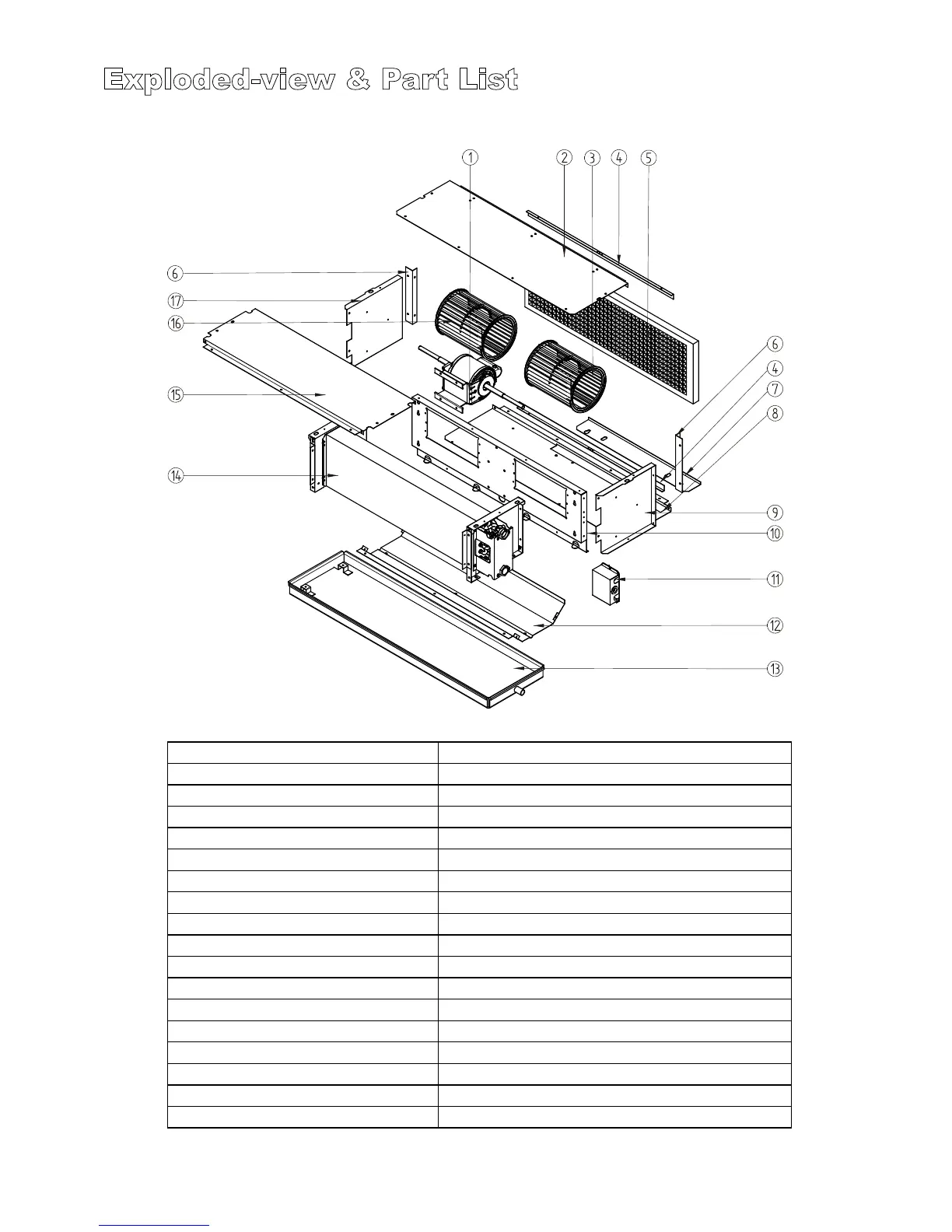

Exploded-view & Part List
Item Description
1 Motor
2 Top Panel For Air Return Plenum
3 Blower Left
4 Flange top/bottom For Air Return Plenum
5 Filter
6 Flange left/right For Air Return Plenum
7 Filter Cover
8 Bottom Panel For Air Return Plenum
9 Side Panel Right For Air Return Plenum
10 Fan Deck
11 Terminal Box
12 Drain Guide
13 Drain Pan
14 Coil Assy
15 Top Panel
16 Blower Right
17 Side Panel Left For Air Return Plenum
