12
Electrical wiring connection must be done according to the following wiring diagram. The unit must be GROUNDED
to the earth system of the building. All eld wiring must be installed in accordance with the national wiring regulation
and Fire Department regulation.

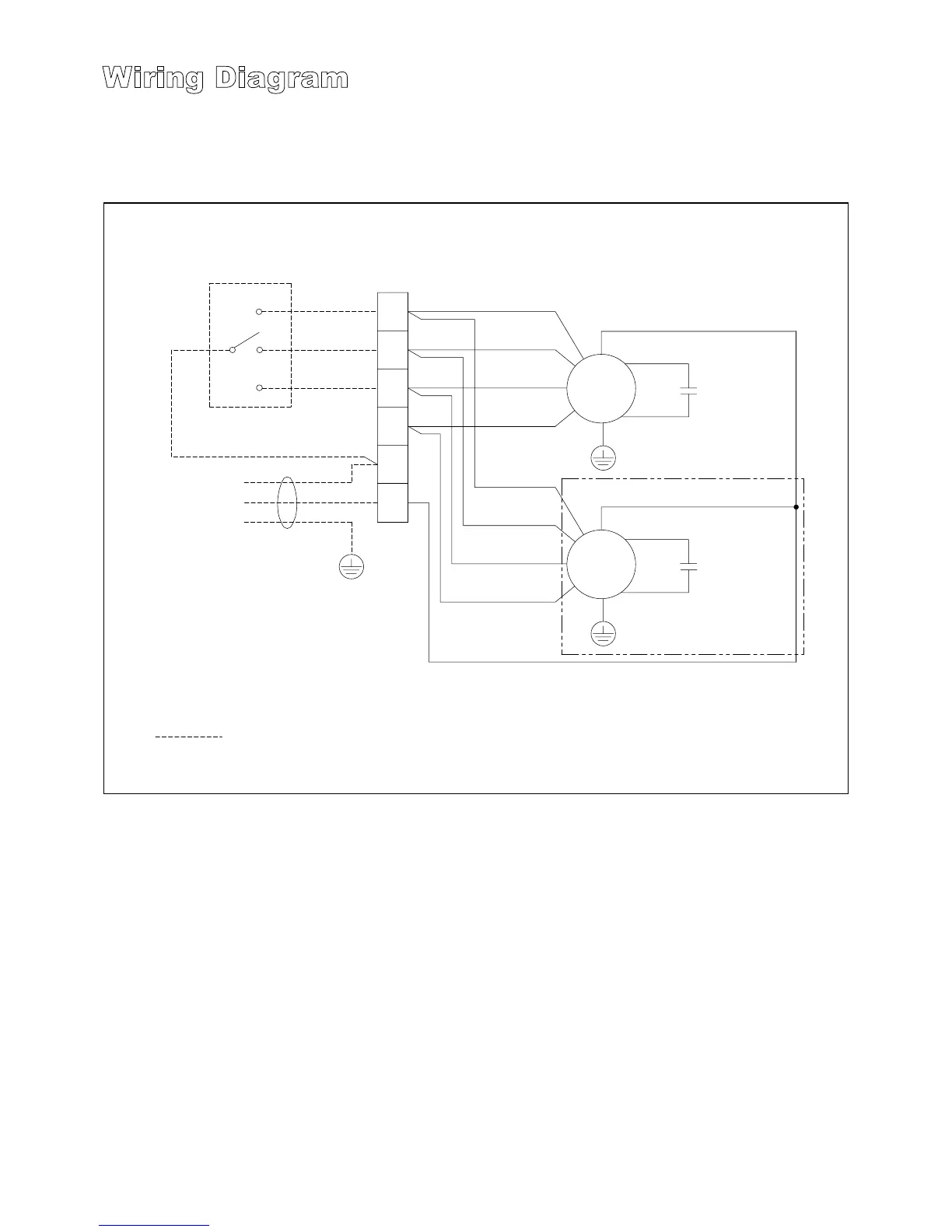

Wiring Diagram
NOTE:
FOR MCW DA SERIES, (H. M. L.) ARE CONNECTED TO (SHF. HF. MF.) RESPECTIVELY.
MODEL: MCW 200-1600
POWER
SOURCE
ORANGE
N
L
MF
LF
SHF
HF
L
M
BROWN
H
YELLOW
FAN
BLACK
FAN SPEED
SWITCH
NOTE:
MOTOR
1
BLACK
FAN MOTOR
CAPACITOR
MOTOR
CAPACITOR
2
BLACK
FAN MOTOR
BLACK
FAN
RED
RED
YELLOW
BROWN
ORANGE
BLUE
BLUE
HF: HIGH SPEED
MF: MEDIUM SPEED
LF: LOW SPEED
SHF: SUPER HIGH SPEED
FIELD WIRING
FAN MOTOR2 APPLY TO 800~1600 UNITS
