MDC XT 10E - Ontrol Panel; Ain Circuit Breaker

www.marketdirect.com.au
I
Ph: 1300 494 494 I Contents 29

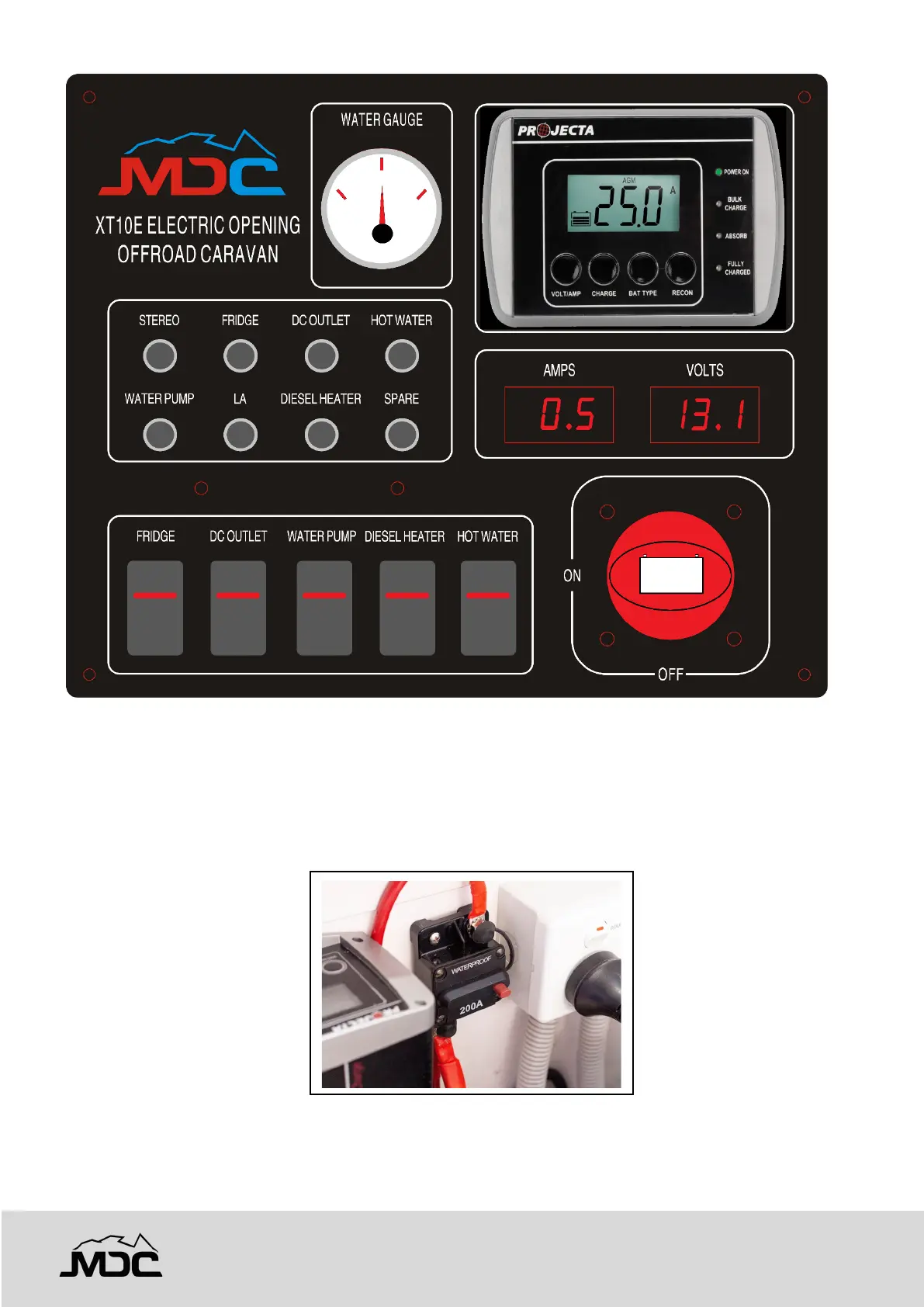

Control Panel
*Voltmeter will indicate battery voltage when idle or charge voltage when charging
* Amp meter will show current being used not charge current
Main Circuit Breaker
The main 12v circuit breaker is located beneath the dinette seat beside the Projecta battery charger. This 200A
breaker is a resettable type.
