connected, the vehicles electrical system should be checked for correct voltage supply
with the help of a voltmeter.
First, check the voltage at the battery with the ignition in the OFF position. The voltmeter
-
ifications, we recommend having it checked by an auto electrician before any further
installation. Once the vehicle is checked, make certain the correct cable gauge is used.
POWER WIRING
BATT+ (Power)
This amplifier should be wired directly to the vehicle battery using the appropriate size
cable. Start at the vehicle battery and run the power cable through to the amplifier. Avoid
running the power cable over engine components and near heater cores. The use of an
inline fuse or circuit breaker is a must
by a short in your power cable. Connect the fuse holder or circuit breaker as close to the
or circuit breaker should be no greater then the sum of the fuses found on the chassis
battery, but remember to leave the fuse out or circuit breaker “off” until all other cable
connections are made.

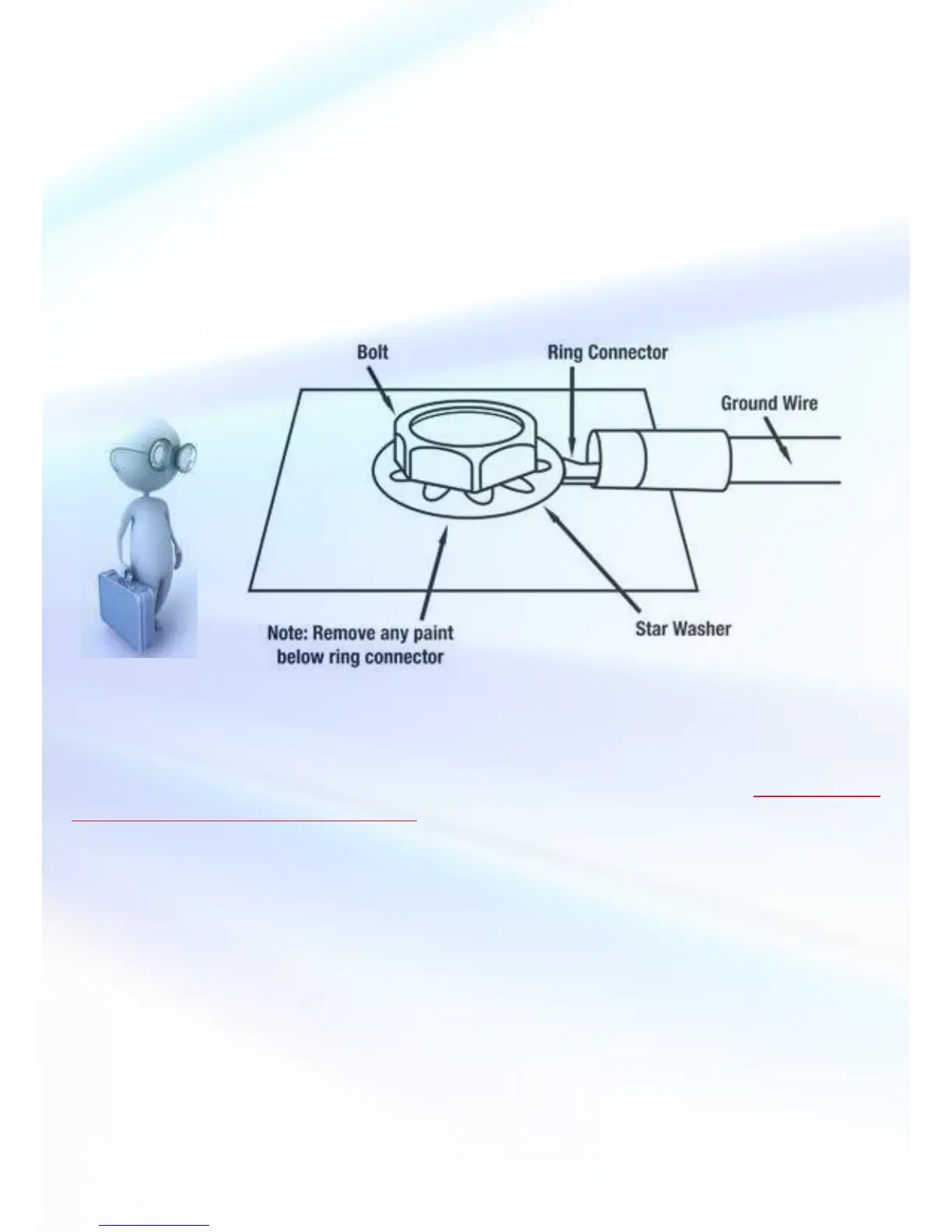

GND (Ground)
When grounding your amplifier, locate a metal area close to the amplifier that is good
use for electrical wires, vacuum lines, and brake or fuel lines. Use either a wire brush or
sandpaper to eliminate unwanted paint for better contact of the ground.
