Assembling The Telescope
Tripod Assembly:
The tripod is the basic support for your telescope and comes pre-assembled from
the factory; except for the accessory tray. In order to use the scope a small amount of
assembly is required. Follow the below steps to assemble the telescope.

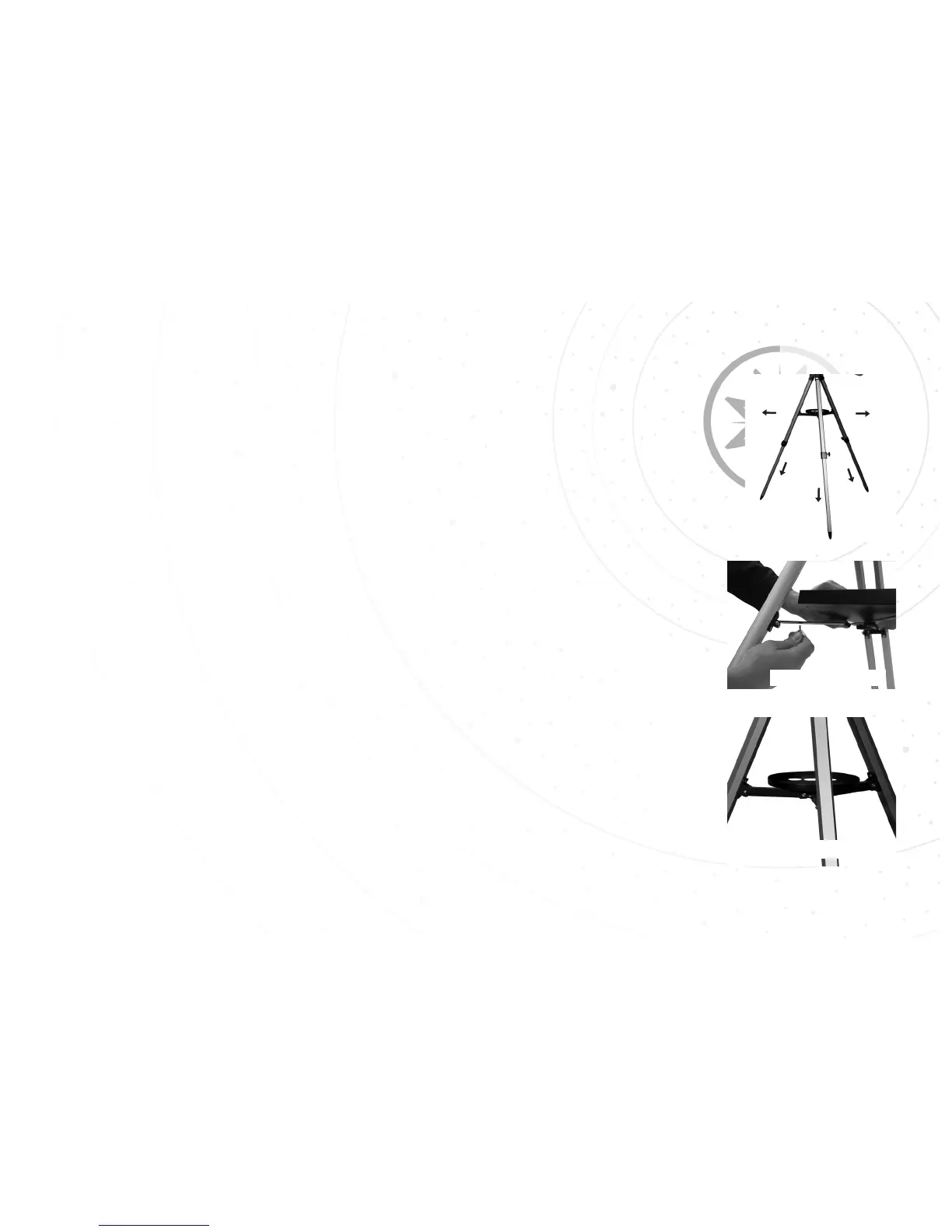

STEP 1: To setup the tripod, spread the legs out evenly and place on solid ground.
Loosen the leg lock knobs and extend the inner legs to desired height. Do this for each
leg until the top of the tripod is approximately level. Re-lock the leg lock knob.
STEP 2:
EclipseView 60 Models: Attach the accessory tray to the tripod by aligning the
three mounting hole at eacj corner with the slotted holes on each leg brace. Use
the included wing-nuts and thread into the tray from the bottom.
EclipseView 76 Models: Attach the accessory tray to the tripod by threading it
into the center nut between the tripod legs.
Step 2
Step 1
Step 2
EclipseView60
EclipseView76
