Collimation
What is collimation?
All Meade EclipseView Reflecting telescopes are optically
aligned at the factory prior to shipment. It is unlikely that you
will need to align, or collimate, the optics after receipt of the
instrument. However, if the telescope received unusually
rough handling in shipment, it is possible that the optics must
be re-aligned for best optical performance.

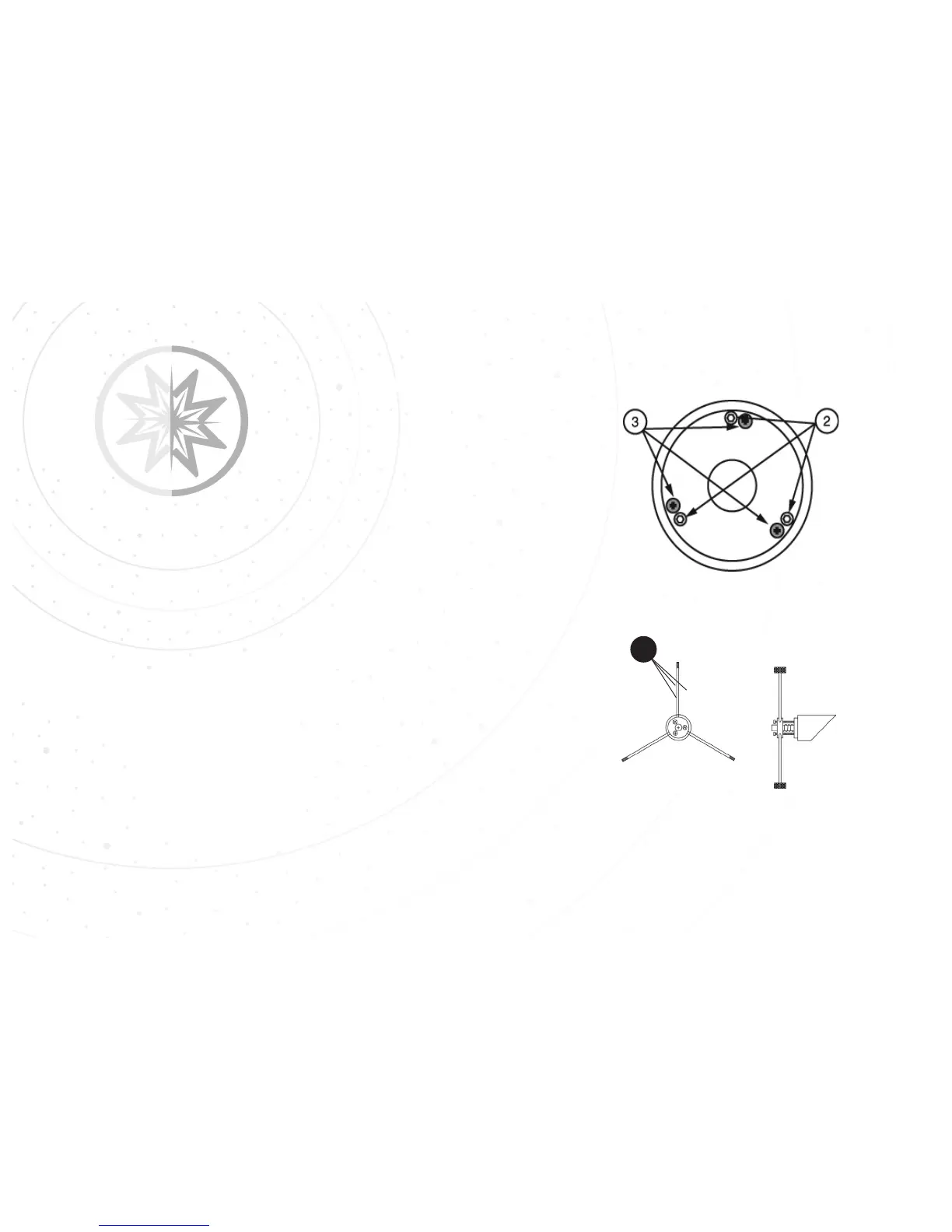

Figure 3 shows the Primary Mirror Cell (114 models
only), the three primary mirror tilt screws (fig. 3, #2), and the
primary mirror cell locking knobs (fig. 3, #3). The primary
mirror tilt screws adjust the tilt-angle of the mirror, and
the primary mirror cell locking knobs locks the mirror in
place.
Figure 4 shows the Secondary Mirror Assembly and the
three secondary mirror collimation screws (fig. 4, #2).
These screws allows for adjustments of the secondary mirror
assembly.
Figure 3
EclipseView 76 only
Primary Mirror Cell
Figure 4
Secondary Mirror Assembly
2
43
EclipseView76 Models Only
