Mebay DC8-D MK Series User Manual

DC8xD MK3 GENSET CONTROLLER USER MANUAL
9

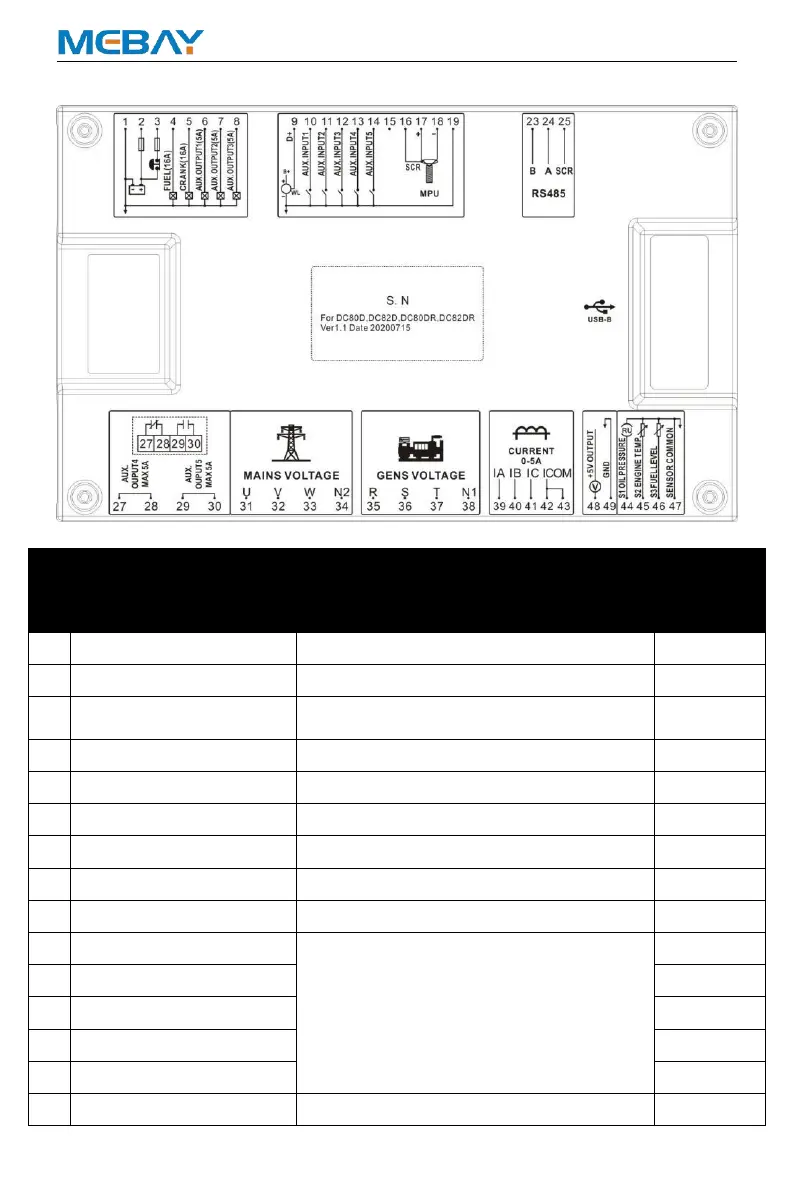

 Descriptions of terminal connection
No.
Function
Description
Cable
cross
sectional
area
1
Battery Negative Input B-
Controller power supply input B-.
2.5mm
2
2
Battery Negative Input B+
Controller power supply input B+.
2.5mm
2
3
Emergency Stop Input
B+ voltage input is active, and connected
to emergency stop normal closed button.
2.5mm
2
4
Fuel Output
Active output, Max 16Amp
1.5mm
2
5
Crank Output
Active output, Max 16Amp.
1.5mm
2
6
Aux. Ouput1
Active output, Max 5Amp.
1.5mm
2
7
Aux. Ouput2
Passive Output, Max 5Amp.
1.5mm
2
8
Aux. Ouput3
Passive Output, Max 5Amp.
1.5mm
2
9
Charging excitation output
Active output, Max 0.9Amp.
1.0mm
2
10
Aux. Input1
The grounding is valid according to the
function selection switch input.
1.0mm
2
11
Aux. Input2
1.0mm
2
12
Aux. Input3
1.0mm
2
13
Aux. Input4
1.0mm
2
14
Aux. Input5
1.0mm
2
15
Reserved
Reserved.
