Fault Codes

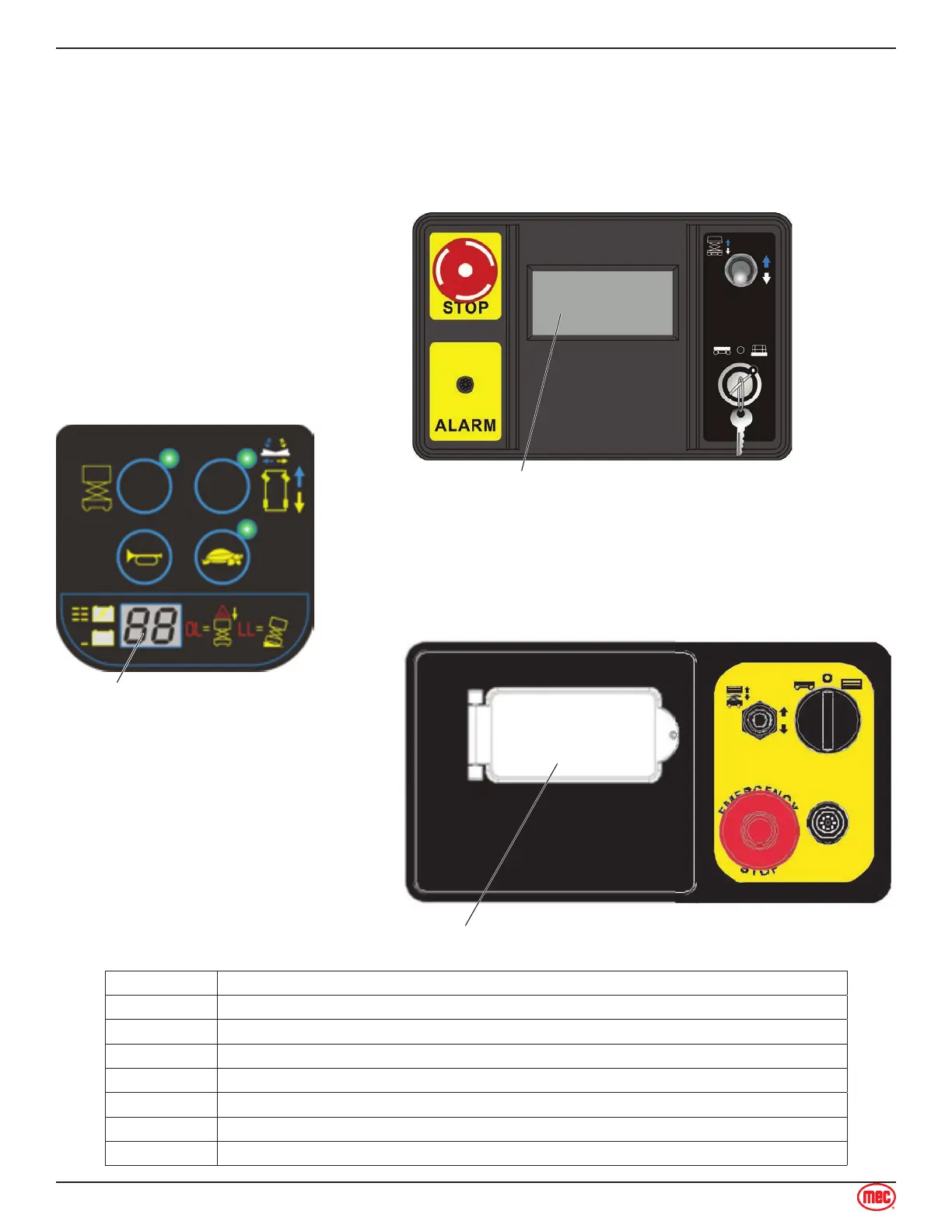

Fault Codes, when present, appear on the LED Indicator at the Upper Controls station and on the
LCD Screen at the Lower Controls station.
LCD Screen
Lower Controls - From Serial #16301161
ART_5052
LCD Screen
Lower Controls - To Serial #16300001 - #16301160}
LED Indicator
Upper Controls
Error Code Description
10 GENERAL ALARM ECU
20 GENERAL ALARM TM1
30 GENERAL ALARM PCU
31 PCU CPU0 FAULT
32 PCU CPU1 FAULT
51 ECU ALARM
52 PCU ALARM
