ART_5058

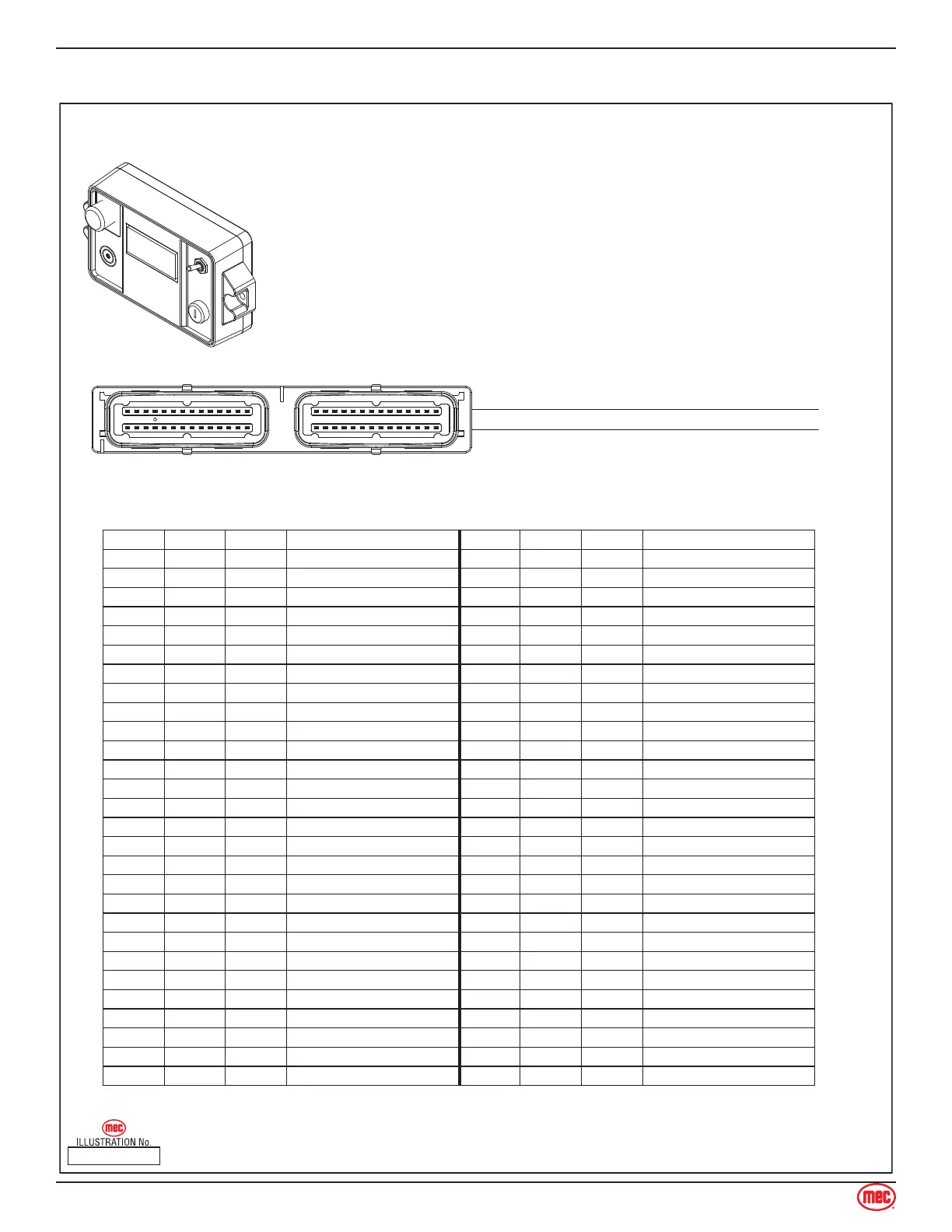

1330SE PIN IDENTIFICATION, ECU HARNESS PLUG
ECU
1 14 15 28
29 42 43 56
Pin # ID Color Place Pin # ID Color Place
1 A1 WH Li Down Val ve 29 A29 WH Pothole Switch
2 A2 WH Li UpValve 30 / / /
3 A3 WH PowerKey 31 A31 WH PowerKey
4 A4 WH SteerRightValve 32 A32 WH An-Coll isionSwitch
5 A5 WH SteerLe Val ve 33 A33 WH TLTSen sor
6 / / / 34 A34 WH Pedal Switch
7 A7 WH Indoor/OutdoorSwitch 35 / / /
8 / / / 36 / / /
9 / / / 37 / / /
10 A10 BK Ground 38 / / /
11 / / / 39 / / /
12 A12 GN CAN_L 40 A40 YE CAN_H
13 / / / 41 A41 RD Power
14 A14 RD Power 42 A42 RD Power
15 A15 RD Power 43 A43 RD Power
16 / / / 44 A44 RD Power
17 A17 WH Horn 45 A45 WH Pressure Sensor
18 A18 WH Beacon 46 A46 WH Pressure Sensor
19 A19 WH TM-Main Contactor 47 / / /
20 A20 WH TM-Brake 48 A48 WH Potenometer
21 / / / 49 / / /
22 A22 WH Main ContactorCoil 50 / / /
23 A23 WH TM-Motor(Right) F eedback 51 / / /
24 A24 WH TM-Motor(Le) Feedback 52 A52 GY PCUPower
25 A25 WH Le MotorBrake Coil 53 A53 GY PCUPower
26 A26 WH Right MotorBrake Coil 54 A54 BK Ground
27 A27 RD Power 55 A55 BK Ground
28 A28 BK Ground 56 A56 BK Ground
To Next Page
