ART_5060

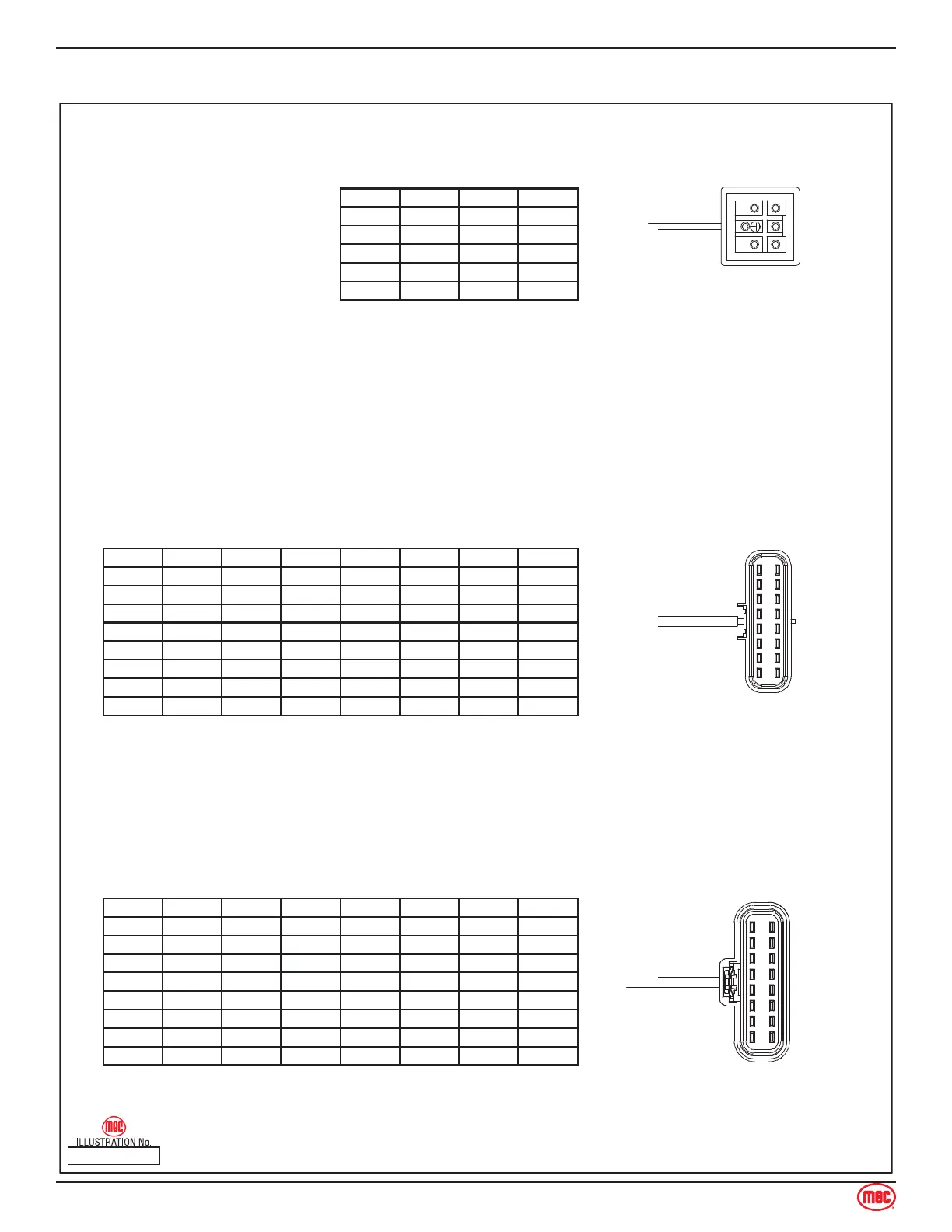

1330SE PIN IDENTIFICATION, MAIN HARNESS PLUGS
A
H
J
S
To Platform Controls
To Beacon,
Lift Down Valve,
Drive Motors
To Height Sensor,
Pothole Switch
1
2
3
4
5
A J
H S
Pin # ID Color Place Pin# ID Color Place
A 002 RD POWER J A32 WH ECU
B 002 RD POWER K A33 WH ECU
C 002 RD POWER L A45 WH ECU
D 002 RD POWER M A46 WH ECU
E 002 RD POWER N A48 WH ECU
F A29 WH ECU P GND BK GROUND
G A7 WH ECU R GND BK GROUND
H A34 WH ECU S GND BK GROUND
Pin # ID Color Place Pin# ID Color Place
A 002 RD POWER J GND BK GROUND
B 002 RD POWER K GND BK GROUND
C A1 WH ECU L GND BK GROUND
D A25 WH ECU M GND BK GROUND
E A26 WH ECU N / / /
F A17 WH ECU P / / /
G A18 WH ECU R / / /
H GND BK GROUND S / / /
Pin # ID Color Place
1 A52 GY ECU
2 PWOUT RD Relay
3 GND BK Ground
4 CANH YE ECU
5 CANL GN ECU
To Next Page
