Page 44 1330SE - Service & Parts Manual
November 2019Section 11 - Schematics

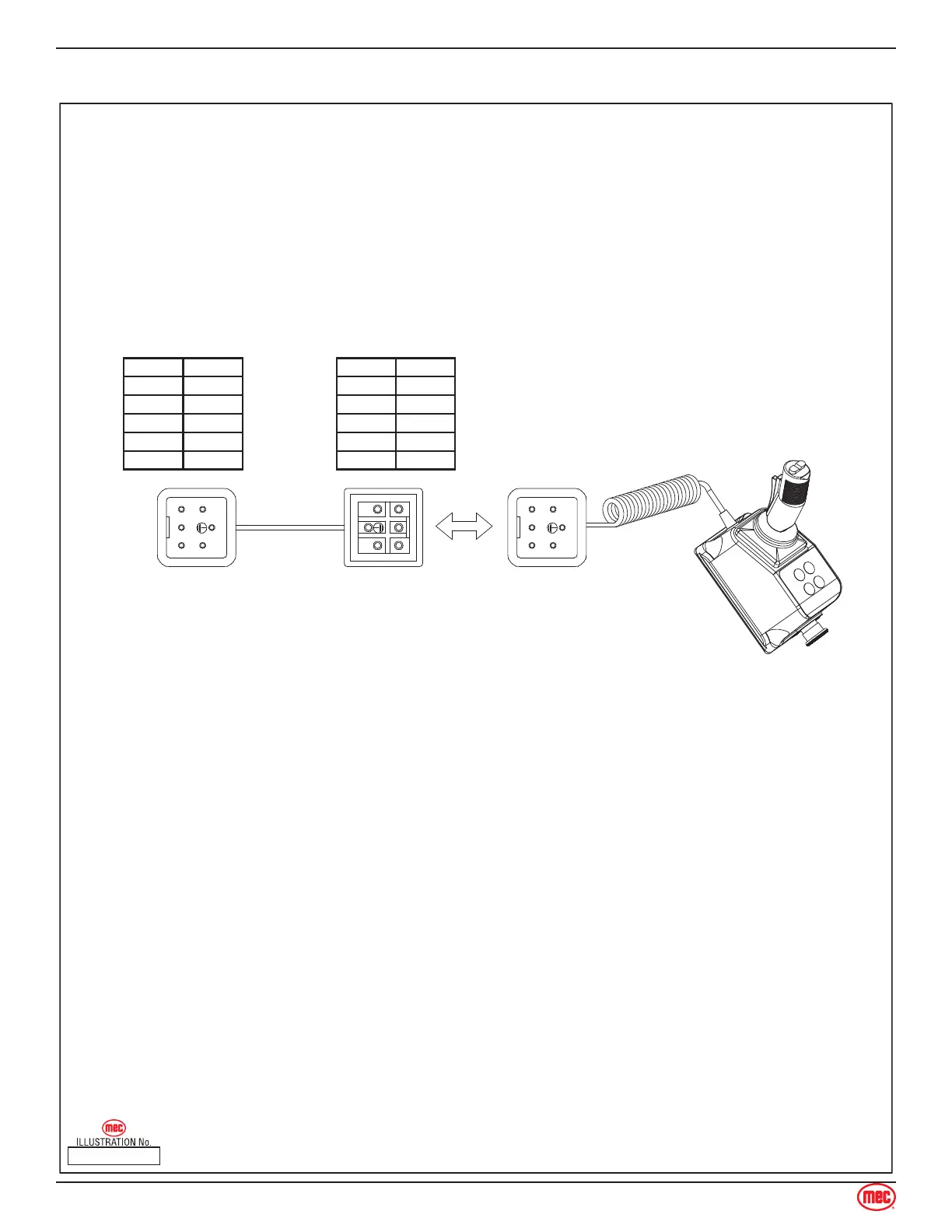

Pin Identification, Platform Controls, COM Cable
ART_5061
1330SE PIN IDENTIFICATION, PLATFORM CONTROLS/COM CABLE
1
2
1
2
3
5
4
3
5
4
1
2
3
5
4
Platform
Control
Module
Pin # Color
1 RD
2 GN
3 WH
4 YE
5 BU
Pin # Color
1 RD
2 GN
3 WH
4 YE
5 BU
