Page 42 1330SE - Service & Parts Manual
November 2019Section 11 - Schematics

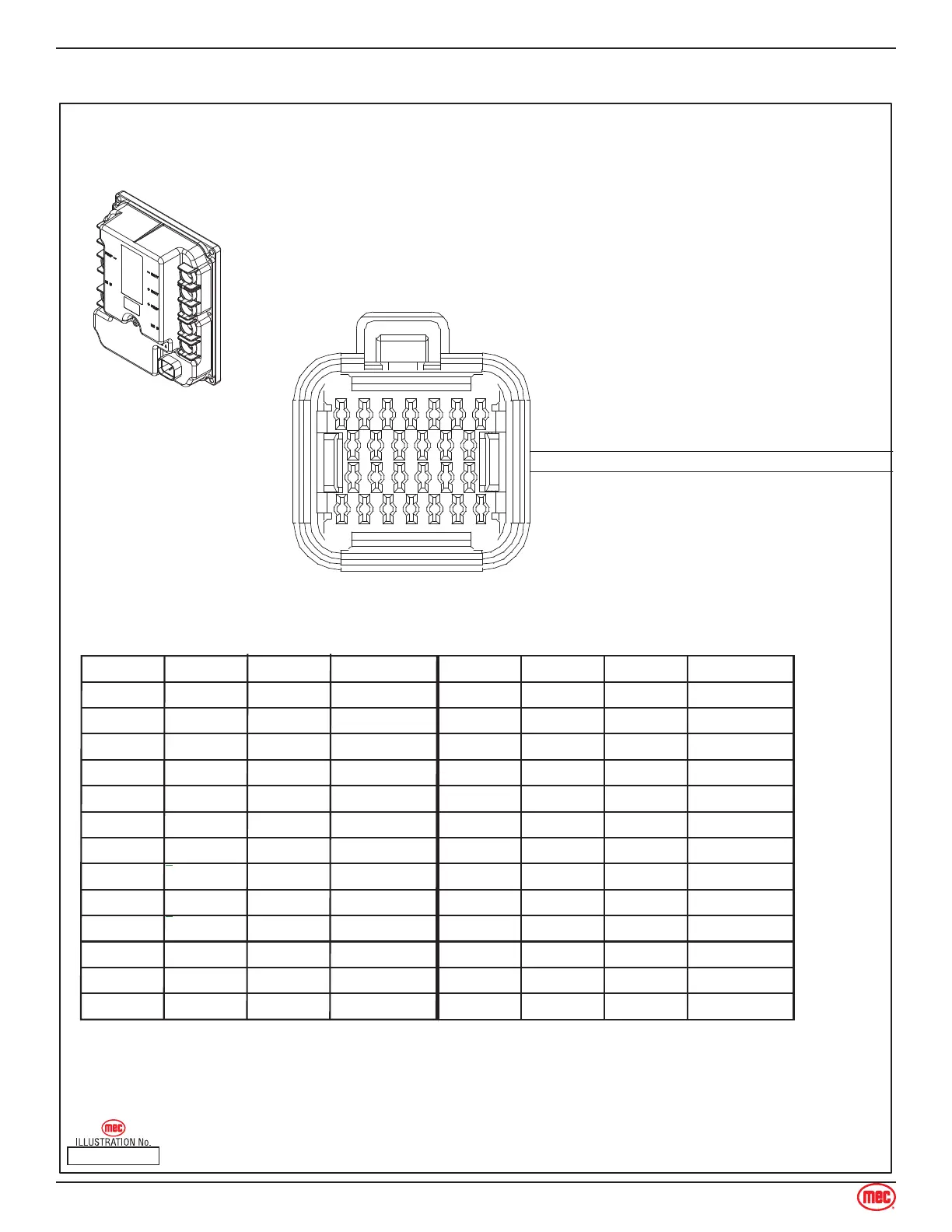

Pin Identification, Motor Controller ECU2 Harness Plug
ART_5059
1330 SE PIN IDENTIFICATION, MOTOR CONTROLLER (ECU2) HARNESS PLUG
Motor
Controller
ECU2
1
7
13
8
19
26
14
20
Pin# ID Color Place
1 A23 WH ECU
2 A24 WH ECU
3 / / /
4 / / /
5 CANL GN ECU
6 CANL GN ECU
7 CANH YE ECU
8 002 RD Power
9 002 RD Power
10 002 RD Power
11 / / /
12 / / /
13 / / /
Pin# ID Color Place
14 GN D BK Ground
15 GN D BK Ground
16 GN D BK Ground
17 / / /
18 / / /
19 / / /
20 / / /
21 / / /
22 / / /
23 A20 WH ECU
24 A24 WH ECU
25 A25 WH ECU
26 / / /
