June 1, 2012 Crossover Series
Crossover Series Controls & Components
Controls & Components
Platform Controls
ALWAYS be aware of the machine’s position and of your surroundings
before activating any control function.

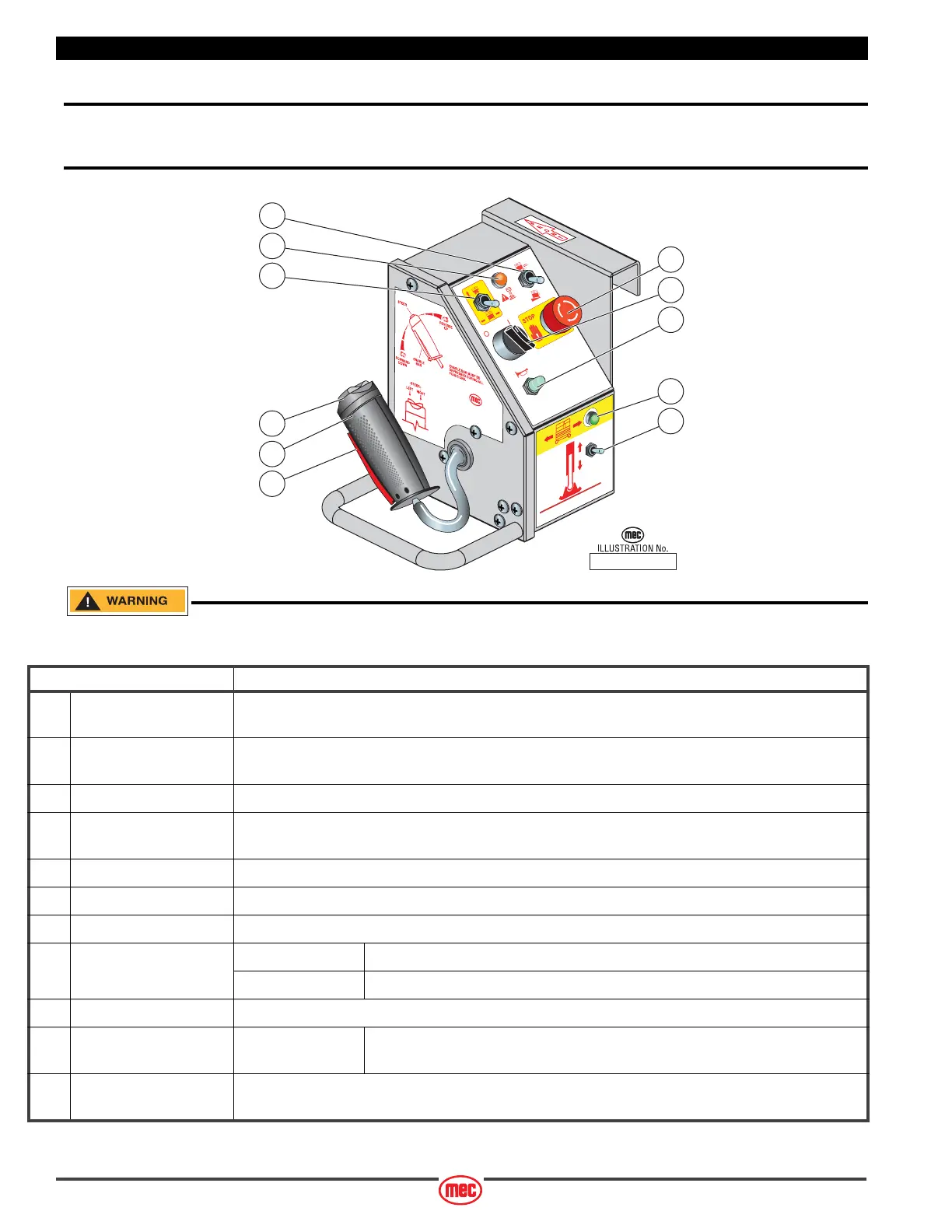

ART_3814
1
2
3
4
5
6
10
11
7
8
9
CONTROL DESCRIPTION
1 Speed/Torque
Selector Switch
Move this switch to the up for high speed drive. Push this switch to down for high torque drive.
2 Tilt Indicator Light If illuminated, the machine is not level. Carefully lower the platform, then move the machine to a firm,
level surface.
3 Lift/Drive Switch Move this switch UP to enable the Lift function. Move this switch DOWN to enable the Drive function.
4 Emergency Stop Switch Press the EMERGENCY STOP switch at any time to stop all machine functions.
Turn sw itch clockwise to reset
5 On/Off Switch This switch turns power ON or OFF at the platform (does not affect the Lower Controls)
6 Horn Button (Option) Press to sound warning horn.
7 Steer Switch Using your thumb, press and hold the rocker switch to steer Left or Right.
8 Control Handle DRIVE Proportionally controls Forward and Reverse travel.
LIFT Proportionally controls Lift and Lower functions.
9 Enable Bar Squeeze to enable DRIVE, STEER, and LIFT functions from the Joystick.
10 Drive Enable Indicator
(Outrigger Option)
Lamp ON
Lamp OFF
Outriggers are retracted and machine will drive.
Outriggers are extended and machine will not drive.
11 Extend/Retract
(Outrigger Option)
Push the toggle switch DOWN to extend the outriggers. Continue pushing down until the outriggers
stop automatically. Push the toggle switch UP to retract the outriggers.
