92555 Page 25
Crossover Series June 1, 2012

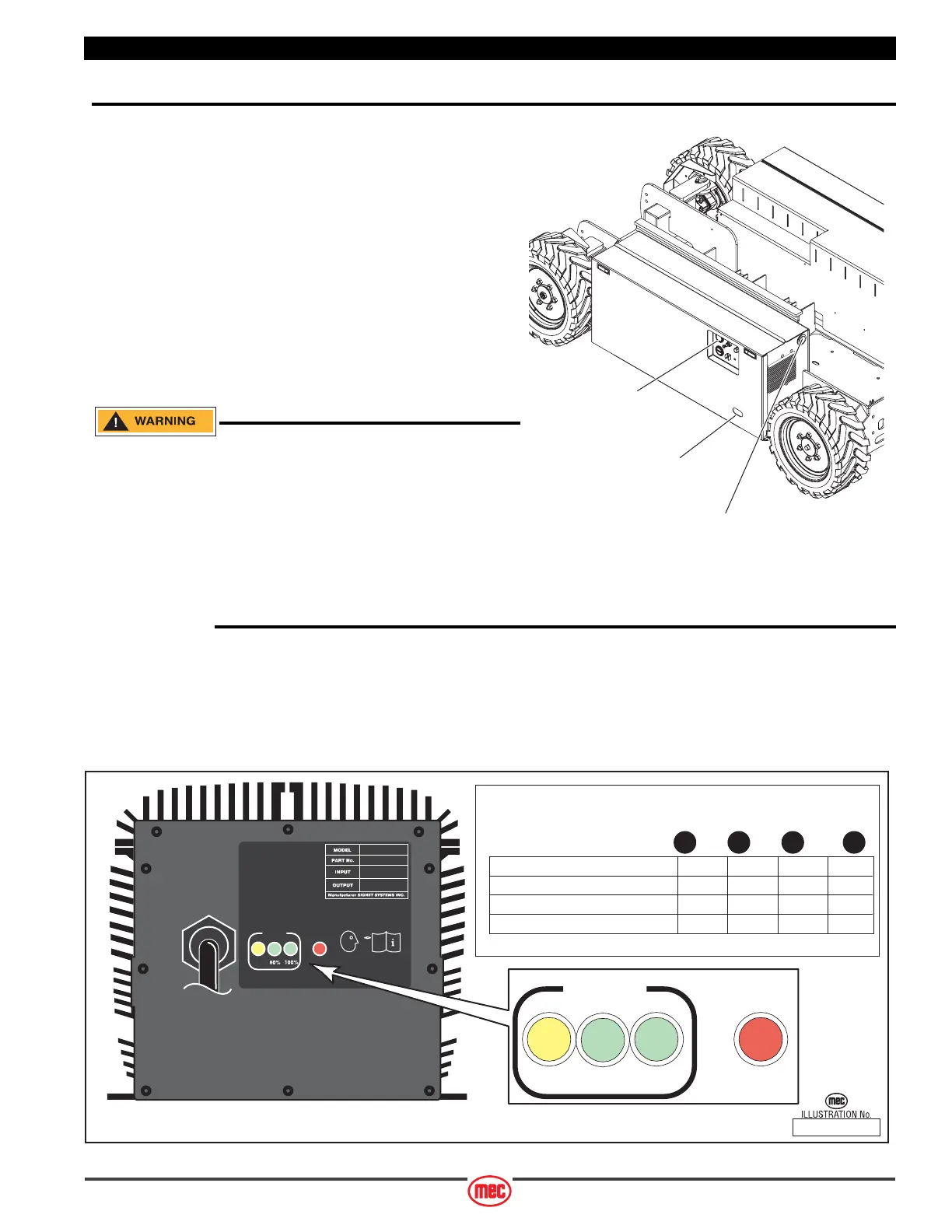

Crossover Series Battery Charger
Battery Charger
The charger is an advanced, microprocessor controlled, high
frequency switching type charger.
The charger will work even with batteries in a severe discharge state
with battery terminal voltages as low as 4V. This reduces the need to
“boost charge” weak batteries before charging.
The charger has a 22 hour timer in case charging can not be completed
due to battery problems. The charger senses and flashes error codes
for problems – refer to the SERVICE MANUAL.
Battery charger LEDs can be viewed through a window in the door of
the Control Module.
IMPORTANT— The machine will not operate when charger is
plugged in. Be sure to disconnect the charger from
the outlet before attempting to operate the unit.
Lead-acid batteries generate explosive
gases. Keep sparks and flame away from
batteries.
No Smoking!
The charger surface can get hot while
operating. Contact with the skin or
surrounding materials should be avoided.
To reduce the risk of an electric shock,
connect only to a properly grounded single-phase (3 wire) outlet.
ART_3904
Battery Charger
AC Connector
Control Panel
Battery Charge
Indicator
LED Window
Battery Charger
ART_2374
ALL LED’S MUST BE OFF BEFORE
CONNECTING TO AC POWER
INDUSTRIAL
BATTERY CHARGER
FAU LTSTATUS
AUTO SELECTABLE DUAL AC INPUT
100 - 240V ~ 50/60 Hz 18A
Please see service manual for additional information.
Normal, battery is 100% charged
Normal, battery is over 80% charged
Normal operation, charger is charging
No AC power to charger
OFF
ON
ON
YELLOW
OFF
OFF
ON
OFF
OFF
ON
OFF
OFF
OFF
80% 100% FAULT
BATTERY CHARGER
INDICATOR
OFF
OFF
OFF
OFF
STAT U S
80% 100%
FAULT
