Crossover Series Operating Instructions & Function Tests
Pipe Rack Use
The Sheet Material Rack MAY NOT be used when the Pipe Rack is in use.
Maximum capacity is 125 lbs (57 kg) each side/250 lbs (114 kg) total.
Maximum length of pipe/long material is 12 feet (3.65 m). Material must be centered on the Pipe Rack.
Material must be entirely contained by the arms of the rack and may not extend above the shorter arm.
Use extreme caution and watch for obstructions when driving and lifting/lowering with long material
on the rack.

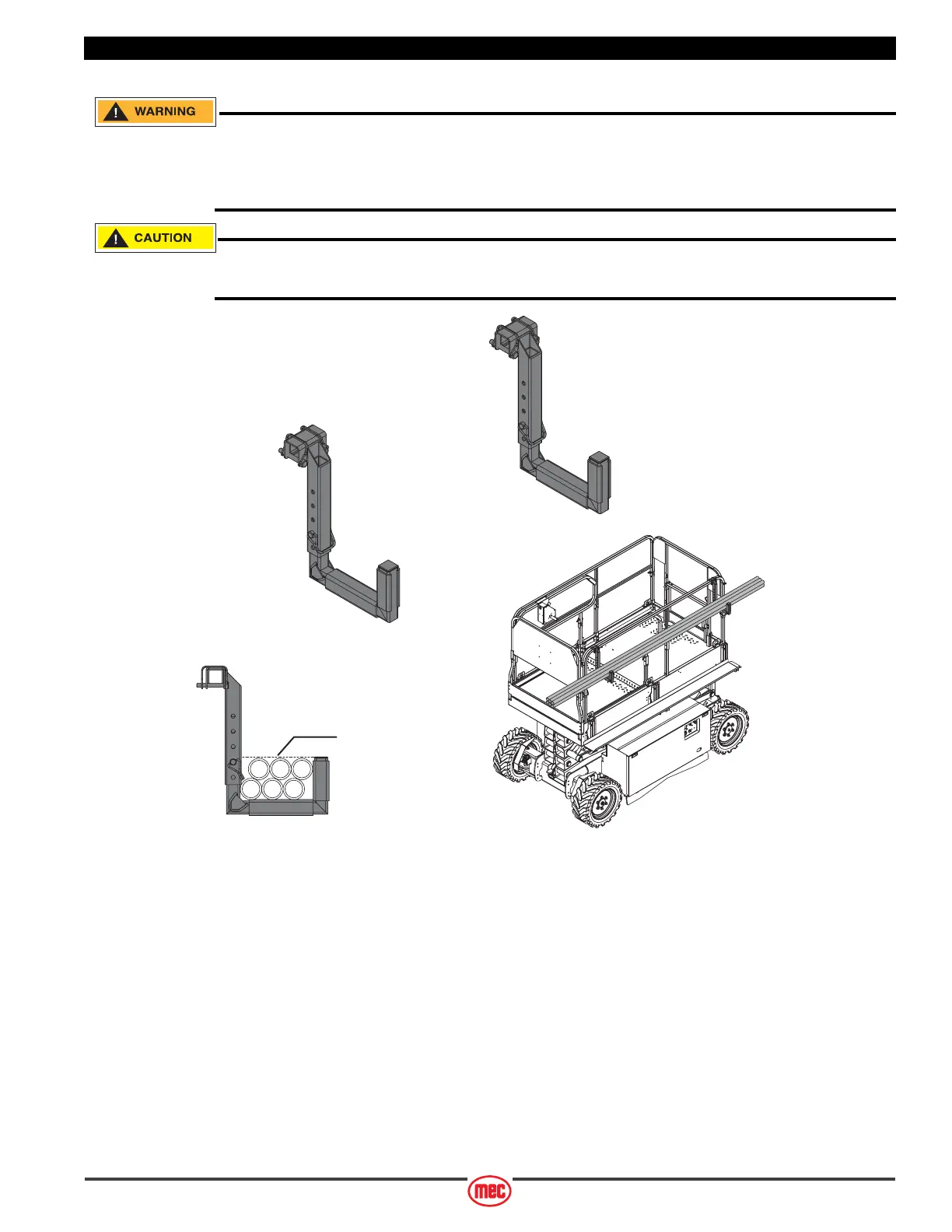

Mount the J-shaped arms as shown for Pipe Rack use.
The maximum permissible length of material is 12 feet (3.65 m). All material must be centered
on the Pipe Rack.
ART_4044
Material must be
entirely contained
and may not
extend above this
line.
