Page 34 Micro 26 - Operator’s Manual
March 2019Section 9 - Decals
Serial Plate Location and Description

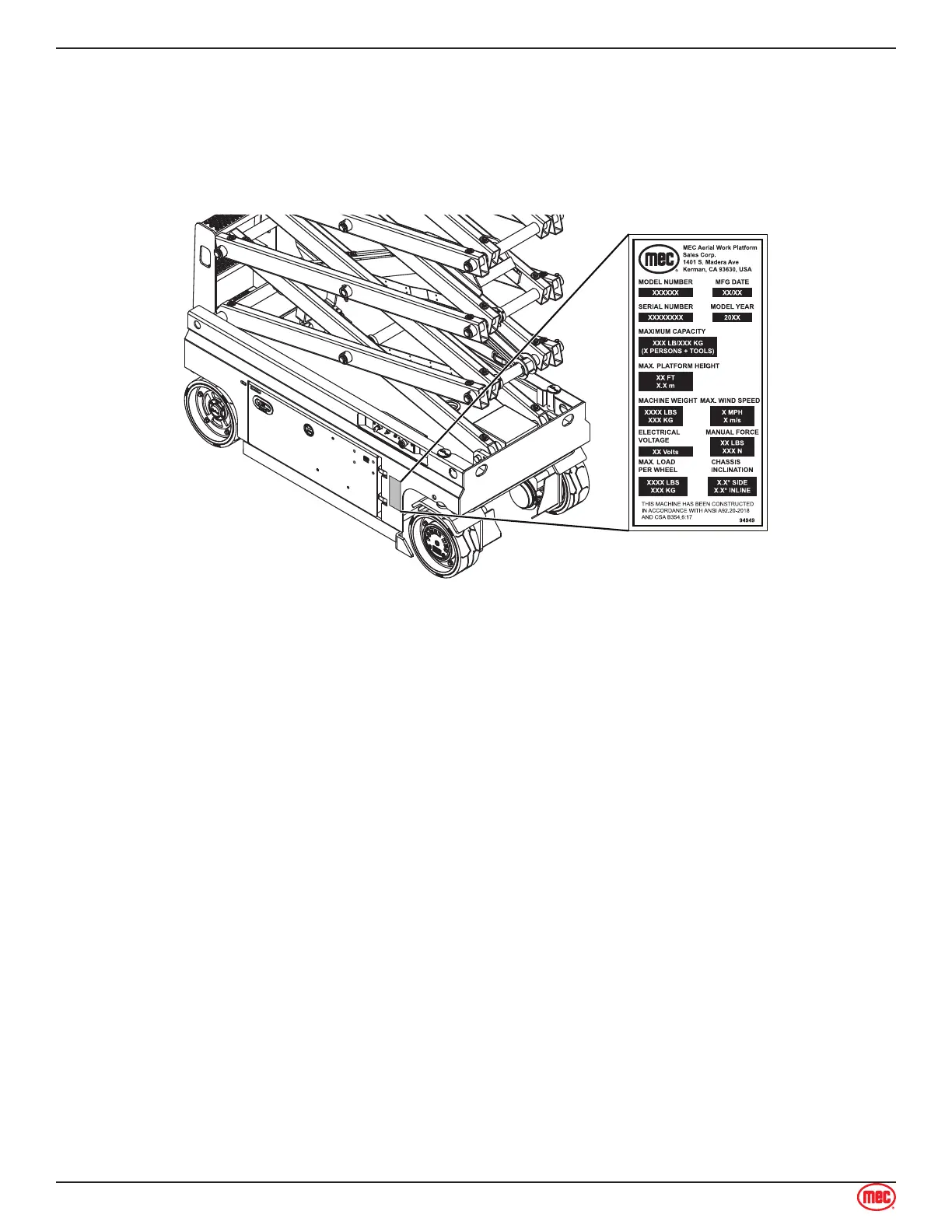

Serial Plate Location
The serial plate is attached to the machine at the time of manufacture. Important information about
the machine is recorded on the serial plate.
Serial Plate Description
MODEL NUMBER: Identifies the machine.
MFG DATE: Month / Year of manufacture.
SERIAL NUMBER: Identifies a machine with reference to its original owner. Refer to the number when requesting
information or ordering parts.
MODEL YEAR: Machine model year.
MAX. CAPACITY: The maximum safe load (material, persons + equipment) which can be correctly placed on the
platform at any elevation.
MAX. PLATFORM HEIGHT: The maximum attainable height measured from level ground surface to platform floor.
MACHINE WEIGHT: The weight of the machine with no options.
ELECTRICAL VOLTAGE: The voltage at which this machine operates.
MAX. LOAD PER WHEEL: The maximum safe weight applied to each wheel. Calculated with all available options
installed. Fw = 30% (Wm + Wc + Wopt)
MAX WIND SPEED: The maximum wind speed allowable. 0 (zero) wind speed indicates Indoors Only.
MANUAL FORCE: The maximum side pull force allowable.
CHASSIS INCLINATION: The setting of the tilt sensors.
MAX HYDRAULIC SYSTEM PRESSURE: The maximum pressure at which this machine operates.
