6 MAINTENANCE

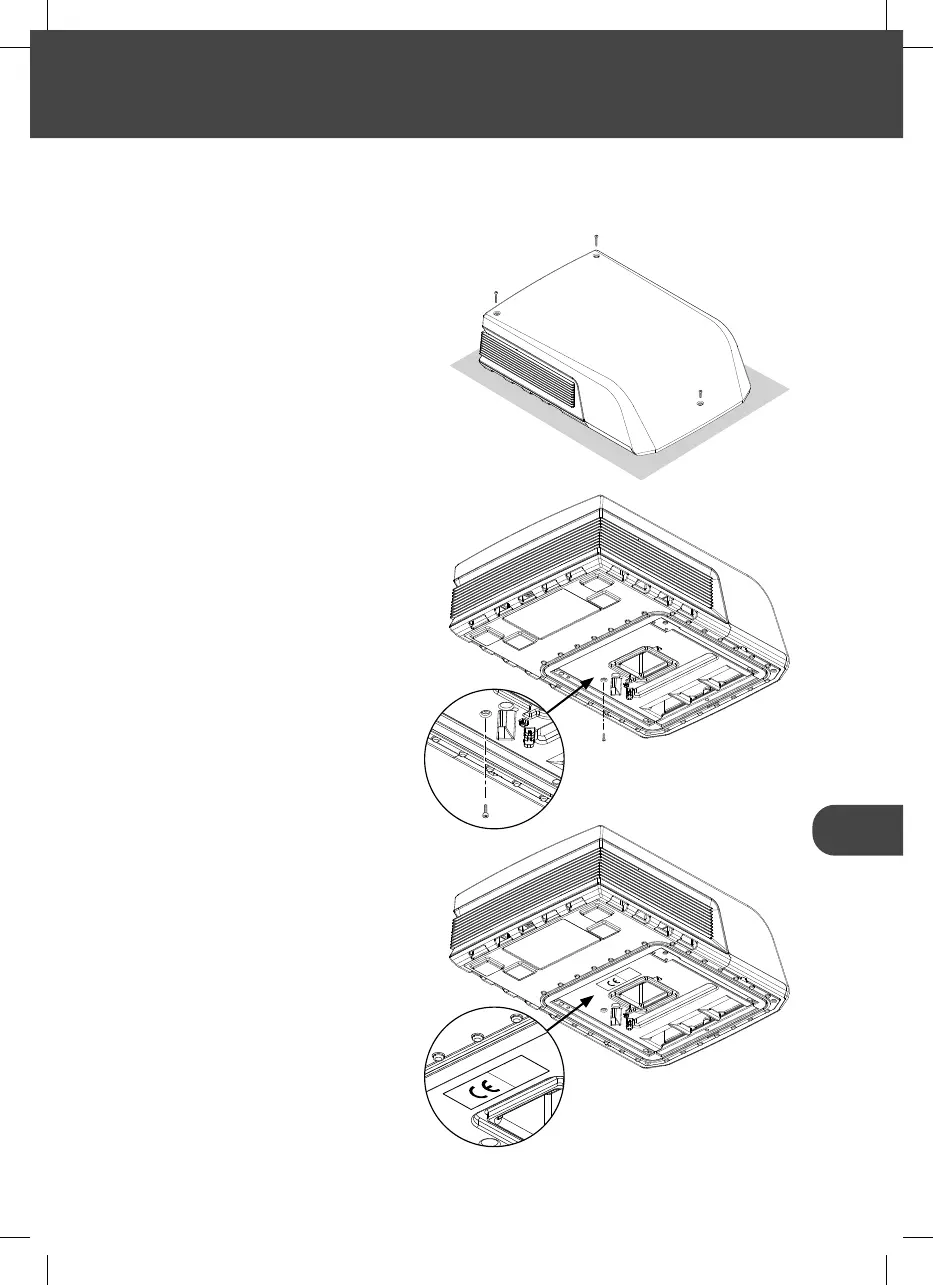

DISASSEMBLY OF THE UPPER COVER
- Remove the 3 upper screw
cover plates and undo the 3
screws..
- Remove the internal diffu-
ser, and undo the lower 5x140
screw. See diagram below
CE PLATE POSITION
The PLATE WITH CE MAR-
KING is located at the bottom of
the air conditioner. Disassem-
ble the diffuser in order to ac-
cess the area indicated by the
image:
