mecair SR C17 - Clearance Around the Air Conditioning System

71
EN
3 INSTALLATION

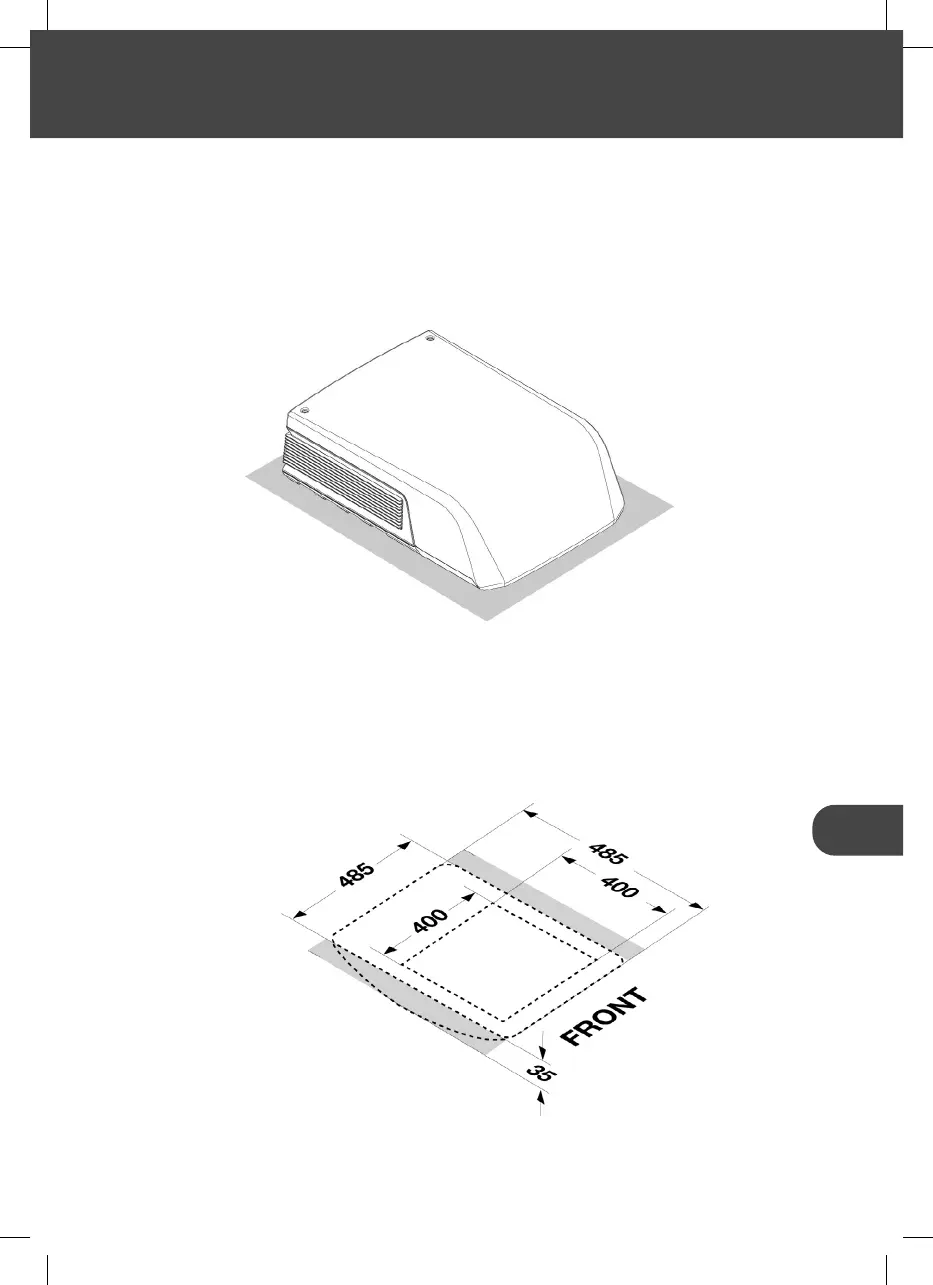

3.2 Clearance around the air conditioning system
External unit. Clearances around the outdoor unit should be 20 mm in
front, 50 mm to the side and 50 mm at the rear.
Air distributor. There must be adequate clearance around the air distri-
butor to ensure that the air can be discharged without obstacles. The side
clearance must be at least 35 mm. Take into account the opening area of
hatches and doors.
