mecalac 14 MBX - 7.2 Slinging for Lifting

14MBX 30750
20 M1
MODE
MECALAC 1
MECALAC 2
2

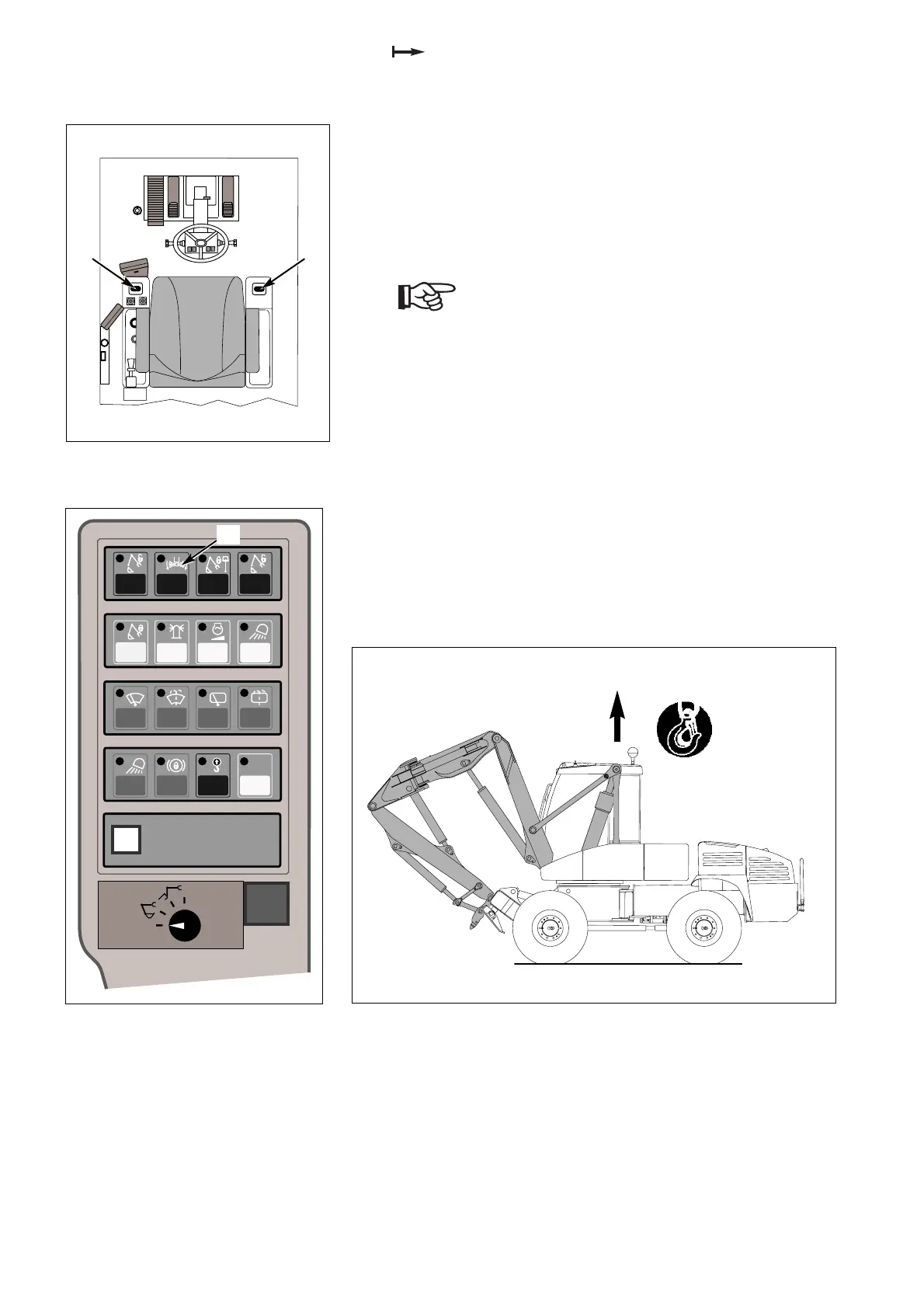

7.2 Slinging for lifting
- Put the equipment in the “boom ram vertical” position
(2 fig. 4) and (fig. 6).
- Lock the oscillation (1 fig. 5). The machine will not be
articulated.
- Lock the chassis sections using the pin (1 fig. 1),
- Lock the turntable (1 fig. 2).
Note: If necessary, correct the machine’s
balance by adjusting the inclination of
the boom ram (2 fig. 4).
Fig. 6
1
2
Fig. 5
Fig. 4
1
