mecalac 14 MBX - Adjustment Procedure; 14.1 Adjustment Procedure for the Heat Engine

30750 14MBX
M1 53
14.1 Adjustment Procedure for the Heat Engine
14.1.1 Adjustment of maximum regime
1- Loosen the lock nut and turn the stop screw
(1 fig. 1).
Note: Number of teeth on engine wheel: 159.
14. Adjustment procedure
13 flat spanner
4 hexagonal male spanner
Inductive sensor
Operation
Speed
(rpm)
Adjustment
(ref. no.)
Maximum regime 2,300 (+ 20 - 20) 1 fig. 1

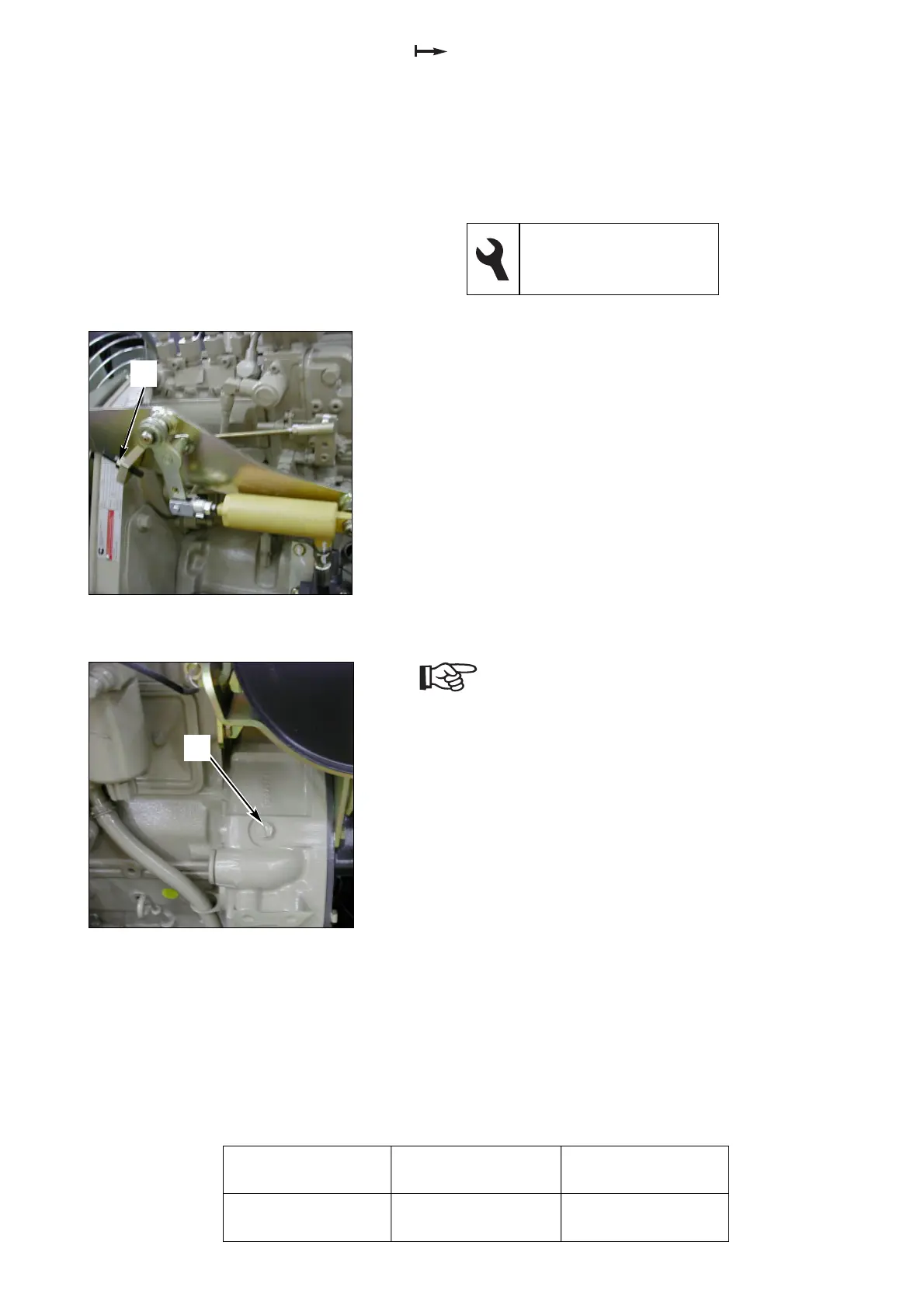

Fig. 1 Injection pump
Fig. 2 Heat engine
1
1
