mecalac 14 MBX - 9.11 Air Conditioning Circuit (Option)

30750 14MBX
M1 35

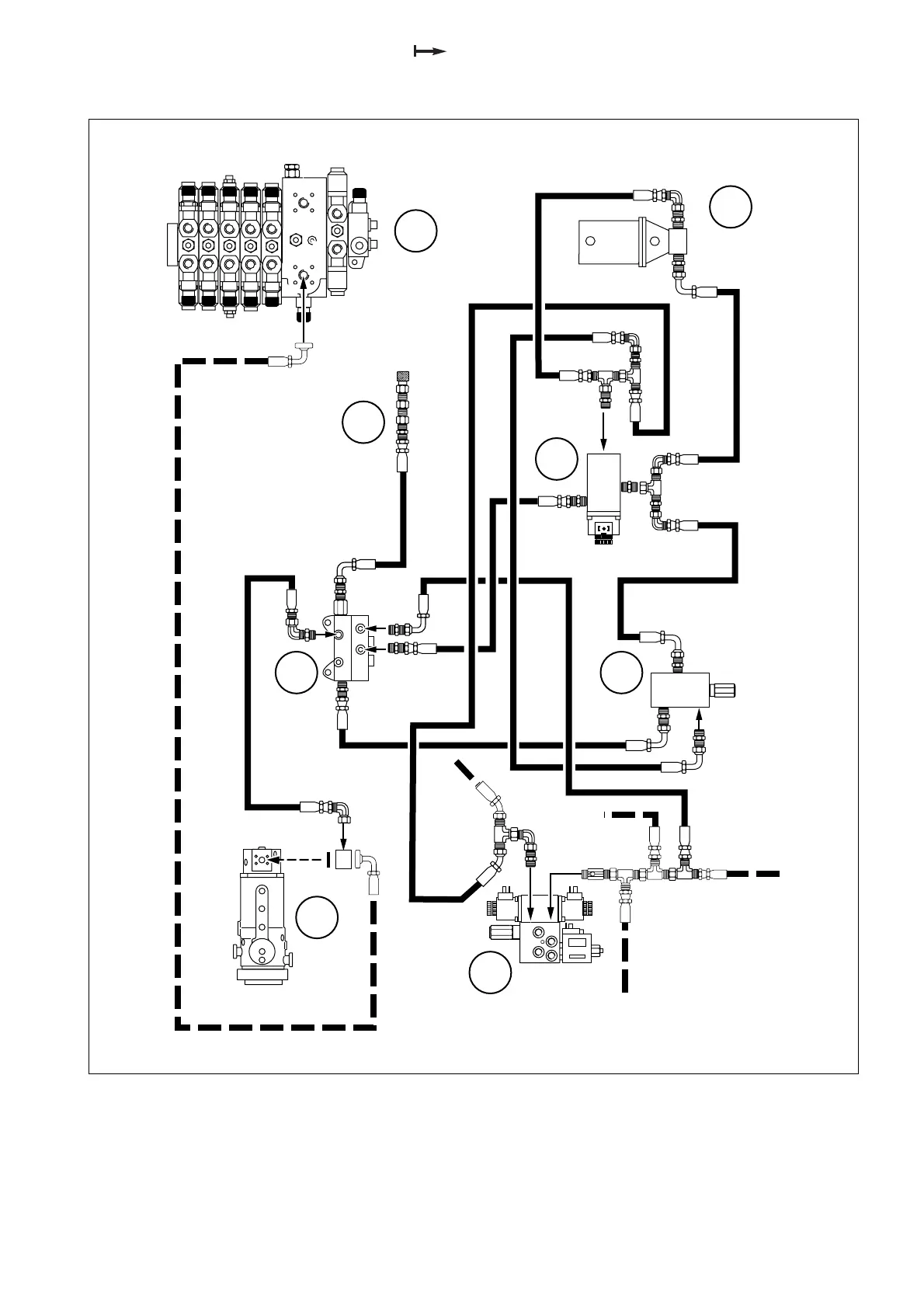

9.11 Air conditioning circuit (option)
2
1
3
P
M1
T
P
X
LS1
A
LS
LS
1
T
P
IN
OUT
K2
C1
K1
B6
K4
K5
K3
C10
B6 - Rotary coupling
C1 - SX18 valve block
C10 - Functions block
K1 - Hydraulic motor
K2 - Solenoid-operated valve
K3 - Pressure reducing valve
K4 - Priority valve
K5 - Pressure tap
