mecalac 14 MBX - 9.2 Accelerator, Main and Parking Brake Circuits

14MBX 30750
26 M1

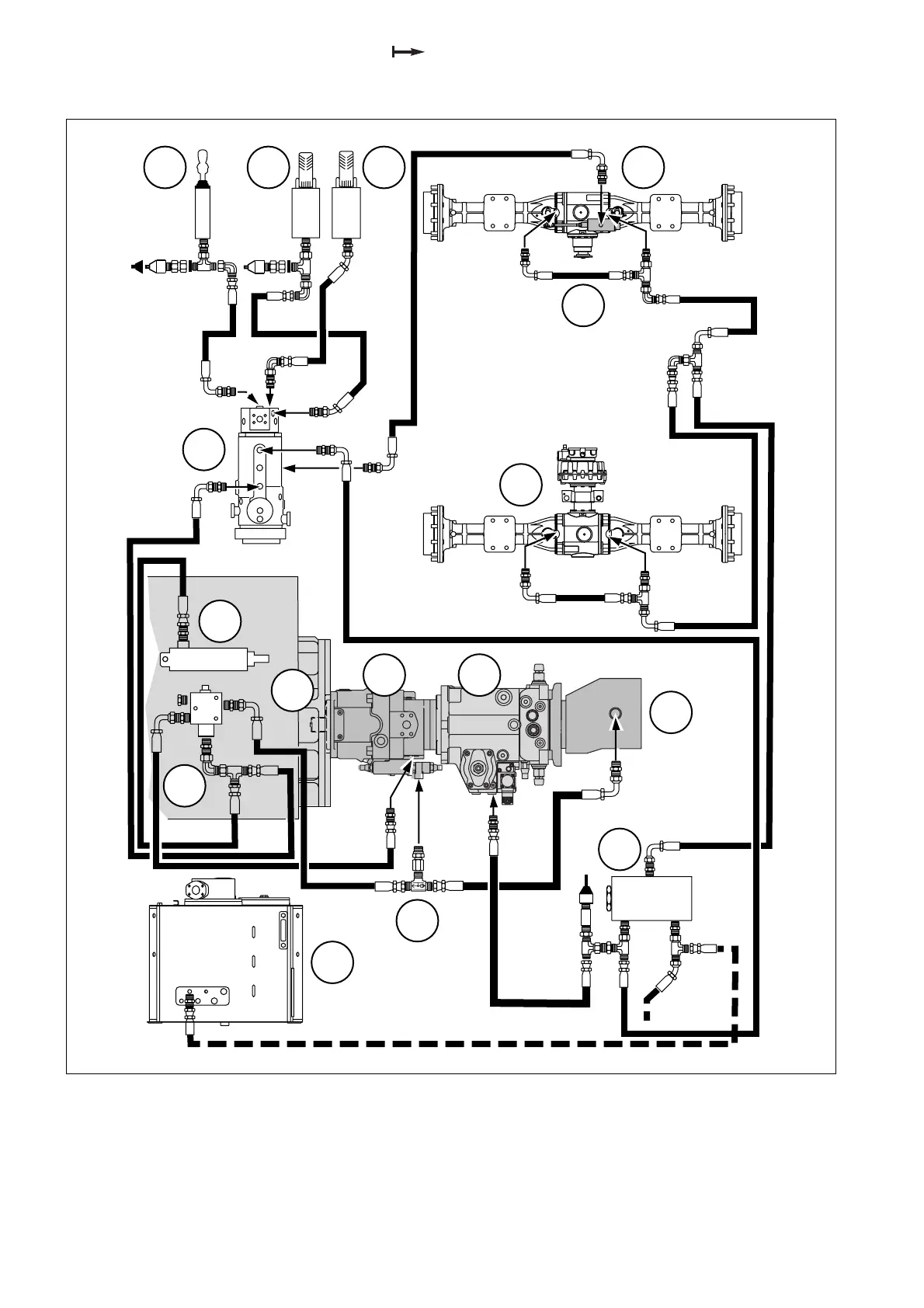

9.2 Accelerator, main and parking brake circuits
11
10
11
10
7
7
M
Z
3
2
1
E
A
P1
Z
P2
T
1
P
A
P
T
1
T
P
B
A
P
B6
B1
E8
B3 B5
B4
B2
B7
A6
A4
B8
B9
B10
B11
A1
E6
A1 - Hydraulic reservoir
A4 - Transfer movement pump
A6 - Sequence valve
B1 - Parking brake control
B2 - Brake foot control
B3 - Accelerator foot control
B4 - Parking brake ram
B5 - Front axle
B6 - Rotary coupling
B7 - Rear axle
B8 - Diesel engine
B9 - Accelerator ram
B10 - Anti-stalling 3 - ways valve
B11 - Selector
E6 - Equipment pump
E8 - Slewing pump
