mecalac 14 MBX - 9.7 Bucket Circuit

82 pages

Save Page as PDF

To Next Page

To Previous Page

30750 14MBX

M1 31

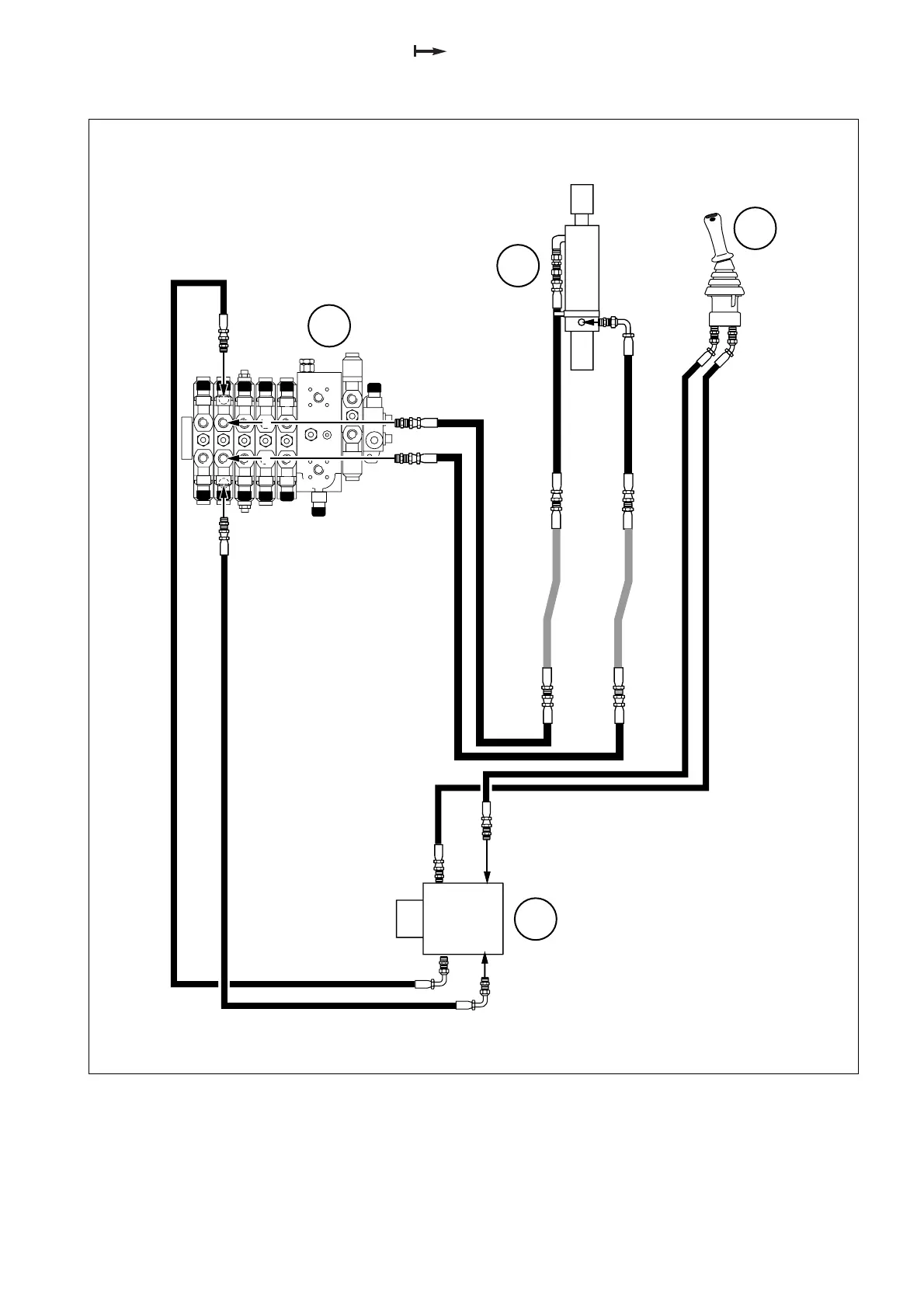

9.7 Bucket circuit

C1 - SX18 valve block

D1 - Right manipulator

G1 - Bucket ram

G2 - Solenoid-operated bucket direction

inversion valve, “LOADER” function
