14.2.7 Adjusting the Inching flex
1- Place the machine on stabiliser support, with wheels
raised; forward movement with low speed engaged,
engine in maximum regime.
2- Place full pressure on the Inching pedal until the wheels
stop, then gradually release the pedal until the wheels
start moving again.
3- Measure the high pressure while the wheels are
rotating (1 fig. 1) using the manometer.
Note: The pressure should not rise sharply
when the wheels begin to rotate again.
4- If the manometer reading indicates a sharp rise
between the transfer of position from brake/Inching,
loosen the screw (1 fig. 2).
17 flat spanner
5 flat hexagonal spanner
Manometer, 0-600 bars
Operation
High pressure
(bars)
Measurement
(ref. no.)
Adjustment
(ref. no.)
Inching and brake No sharp rise 1 fig. 1 1 fig. 2

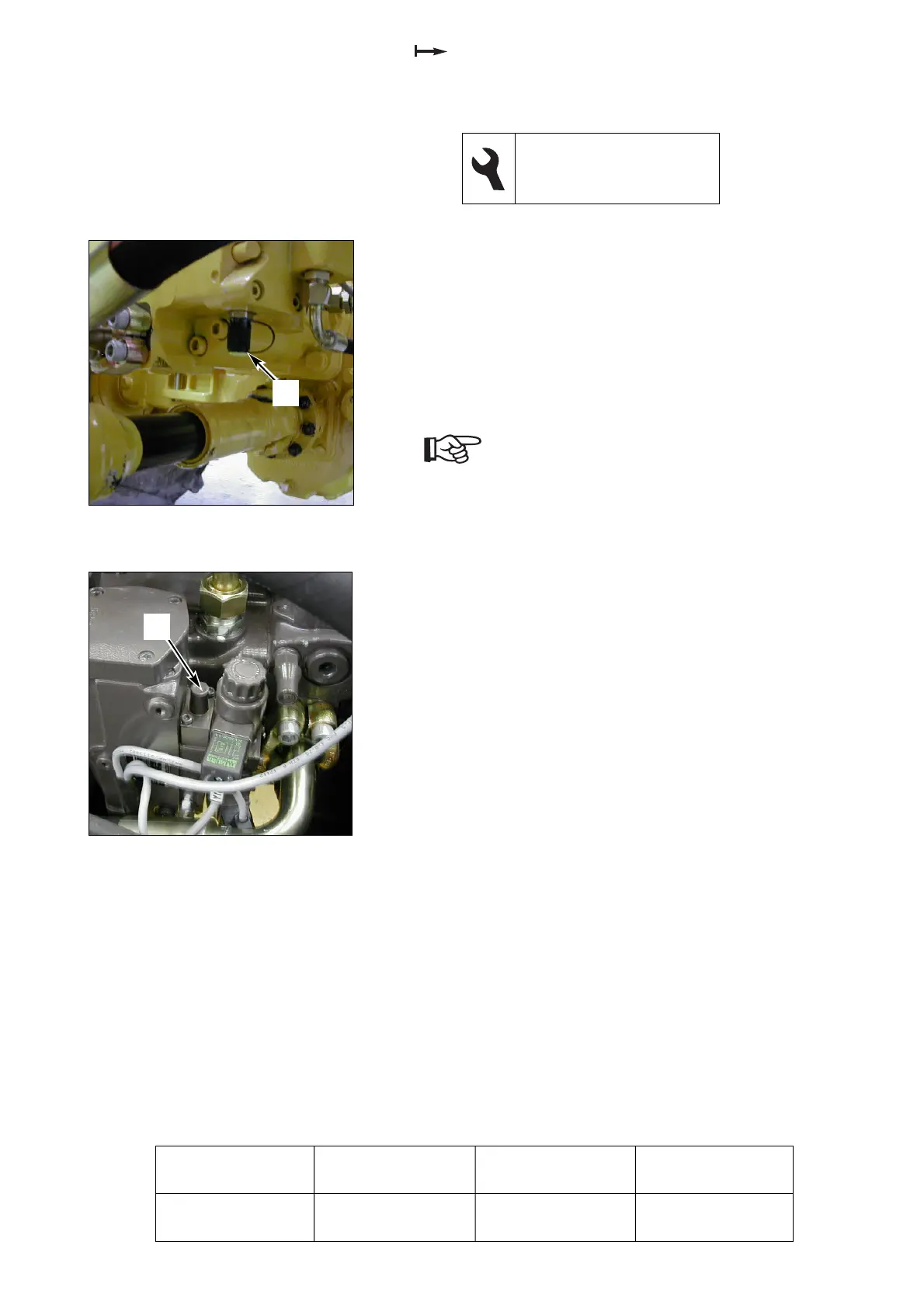

Fig. 2 Transfer movement pump
Fig. 1 Transfer movement engine
1
1
