14MBX 30750
68 M1

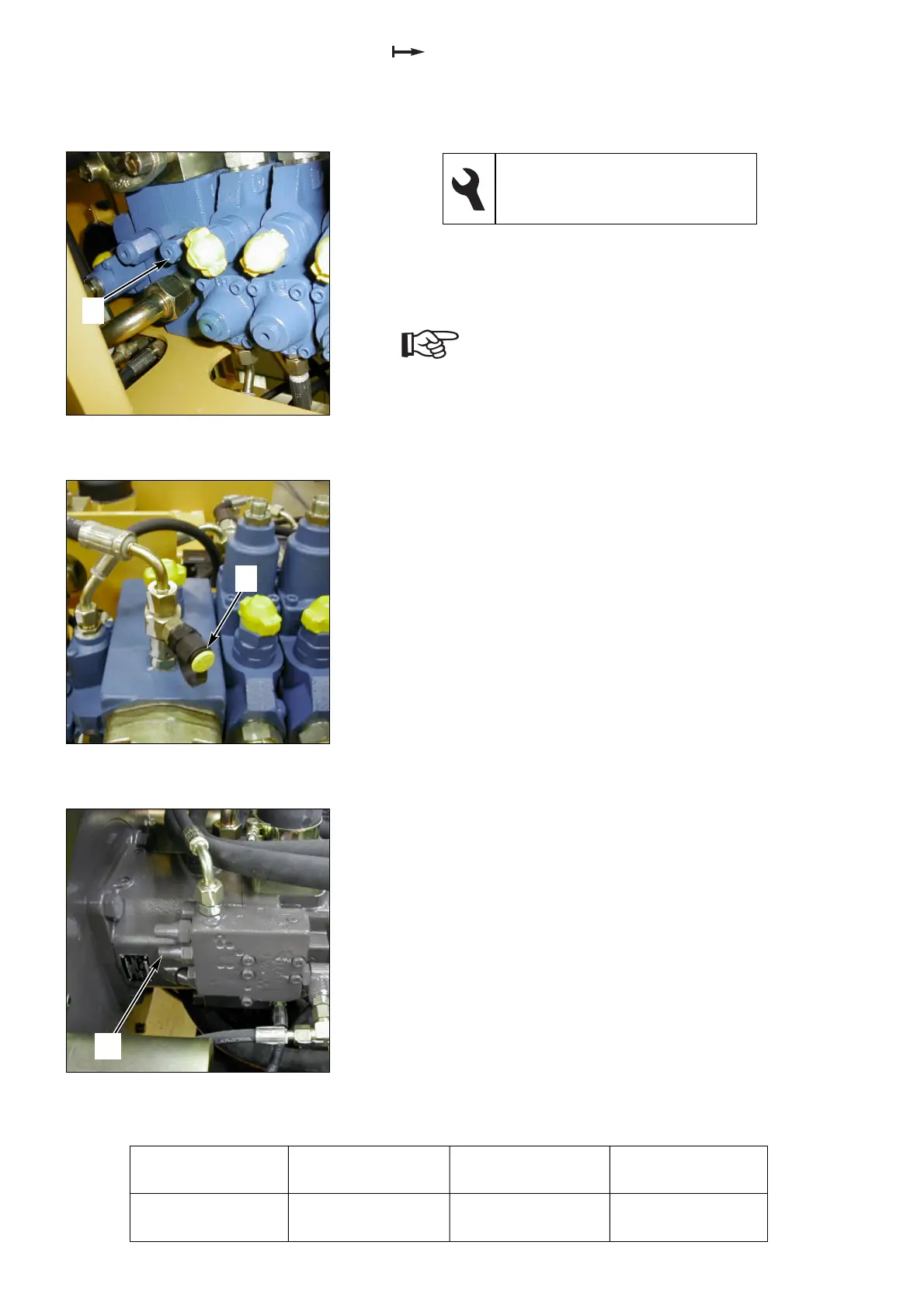

14.4.4 Adjusting the maximum pressure in the
equipment pump (D.R.)
1- Over-tare the L.S. valve on the valve block by turning
the controller screw to blocked position (1 fig. 1).
Note: take care when over-taring the valve.
2- Place a ram in blocked position, for example the
bucket ram.
Engine in maximum regime.
3- Measure the pressure (1 fig. 2) using the manometer.
4- Loosen the lock nut and turn the pressure controller
screw (1 fig. 3) clockwise in order to increase the
pressure.
13 and 17 flat spanner
4 and 5 male hexagonal spanner
Manometer, 0-600 bars
Operation
Pressure
(bars)
Measurement
(ref. no.)
Adjustment
(ref. no.)
Maximum pump
pressure
340 (+ 10 - 0) 1 fig. 2 1 fig. 3
Fig. 1 SX18 valve block
Fig. 2 SX18 valve block
Fig. 3 Equipment pump
1
1
1
