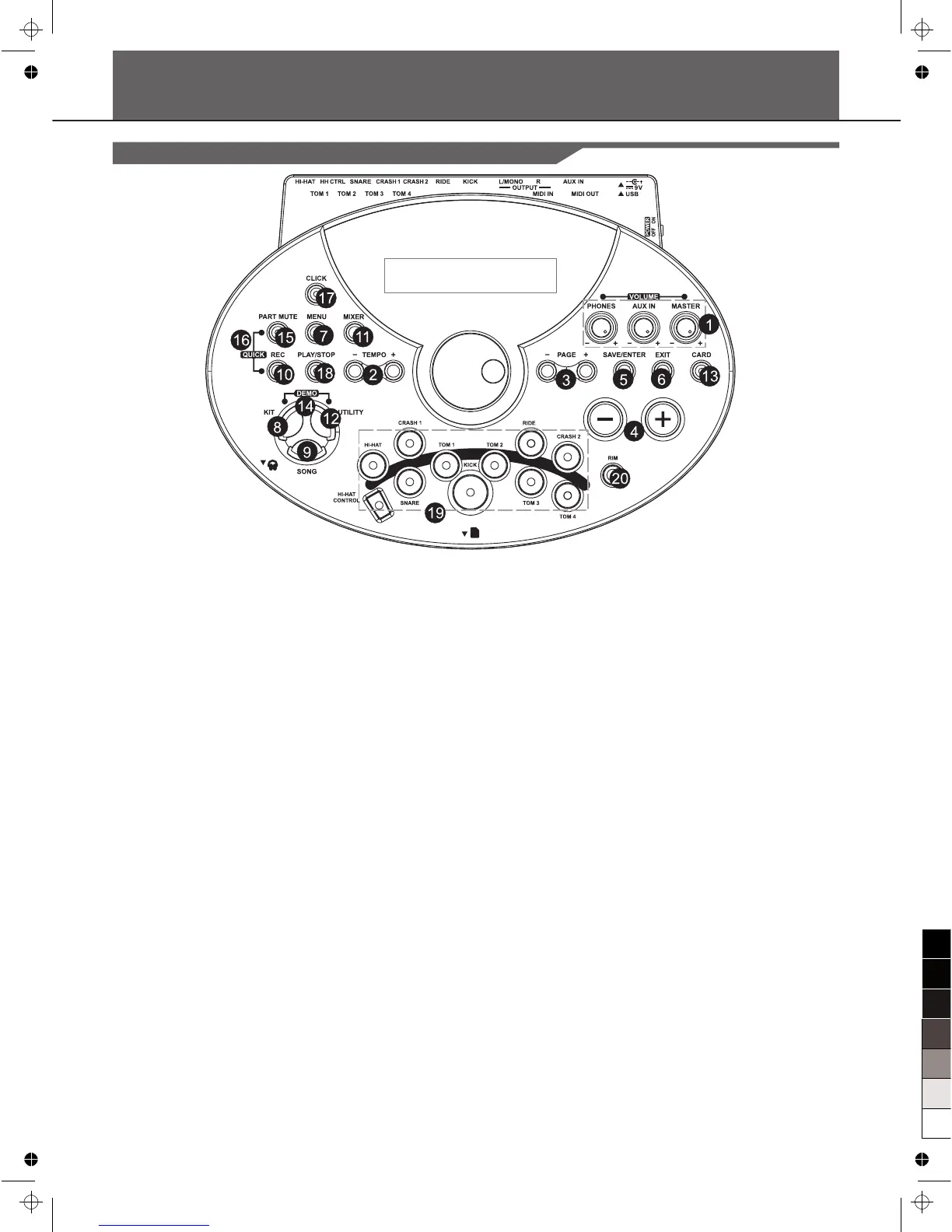

Panel & Display Description
Front Panel
4
1. MASTER AUX PHONES buttons
Master Volume (control output Volume), Aux In
volume, phone volume Knobs.
2. [TEMPO+] / [TEMPO-] buttons
Adjust current tempo of Song, Click, etc; Press
[TEMPO+] and [TEMPO-] buttons simultaneously
to reset to default tempo.
3. [PAGE+] / [PAGE-] buttons
Page Buttons, Scroll through the menu pages, or
move the cursor left/right when naming.
4. [+] / [-] buttons
Increase or decrease the current parameter, or
select the character when naming.
5. [SAVE / ENTER] button
Enter the Save menu when available, enter the
current folder or confirm current operation.
6. [EXIT] button
Exit from the current sub-menu back to the superior
level menu or exit the current folder back to parent
folder.
7. [MENU] button
Enter current mode's menu to set parameter; Hold
[MENU] button then press [PART MUTE] or [CLICK]
buttons, would enter mute or click setting menu.
8. [KIT] button
Enter Kit Mode to select a Kit.
9. [SONG] button
Enter Song Mode to select a song.
10. [REC] button
Enter the Record menu.
[ ] / [ ] / [ ]
11. MIXER button
Enter MIXER menu, adjust master volume
including Kit volume, Song volume, Card MIDI
song volume or Click volume.
12. [UTILITY] button
Adjust the parameters of global setup, such as
sensitivity, curve, effect, MIDI setup, etc.
13. [CARD] button
Enter SD card mode, load, delete, play or format
the SD card.
14. [UTILITY] + [KIT] buttons
Enter DEMO mode and start to play demo.
15. [PART MUTE] button
Part mute switch.
16. [REC] + [PART MUTE] buttons
Quick record for quickly recording drum part.
17. [CLICK] button
Click switch.
18. [PLAY / STOP] button
Control the play of a song or a Card MIDI song, or
start/stop recording.
19. Pad select buttons and indicators (11)
These buttons can play the pad voices of the
current kit. In KIT Menu /Mixer/UTILITY menu,
they select the pad to be edited and the indicators
show the current selected pad. In SONG/DEMO/
mode, the indicators will display which pads
are being played by the drum track.
20. [RIM] button
Allows access to the second voice for dual-zone
triggers (Snare, Hi-Hat, Tom, etc.).
[ ]
To Next Page
