3.9 Microphones
Genio 350-EVK provides one analog microphone (Merry MMA102-006) and two digital microphones
(Merry MMD300-007).
Location Type Note
U700 Analog Microphone To PMIC MT6357
U701 Digital Microphone 0 To Processor MT8365
U702 Digital Microphone 1 To Processor MT8365
Table 3-7 Microphone Input
3.10 MIPI DSI Interface
Genio 350-EVK provides one 4-lane MIPI DSI interface. A StarTek LCM (KD070FHFID015-C021A) with touch pad
is provided in the box. The I2C capacitive touch controller is Goodix GT9271.
• Up to 1.2Gbps for 1-Data Lane
• Pixel format of RGB565/RGB666 or Loosely RGB666/RGB888
• Support peripheral TE and external TE signal detection
3.11 MIPI CSI Interface
Genio 350-EVK provides two 4-lane CSI interfaces, the CSI interface operates up to a maximum bit rate of
1.5Gbps per lane. Camera sub-boards are connected through SAS SFF-8087 cables.
3.12 Ethernet MII and RMII Interfaces
Ethernet MII/RMII interface shares some pins with HDMI interface. Some configurations should be done before
booting up.
• Operate with an external Ethernet PHY (Realtek RTL8201F-VD-CG)
• Dynamically configurable to support 10/100M with MII/RMII
• CRC-32 checking with optional forwarding of the FCS field to the user application
• Optional magic packet detection
• EEE (Energy Efficient Ethernet) MII signaling according to the IEEE 802.3az specification
• RJ-45 Ethernet connector with transformer and LEDs in it.

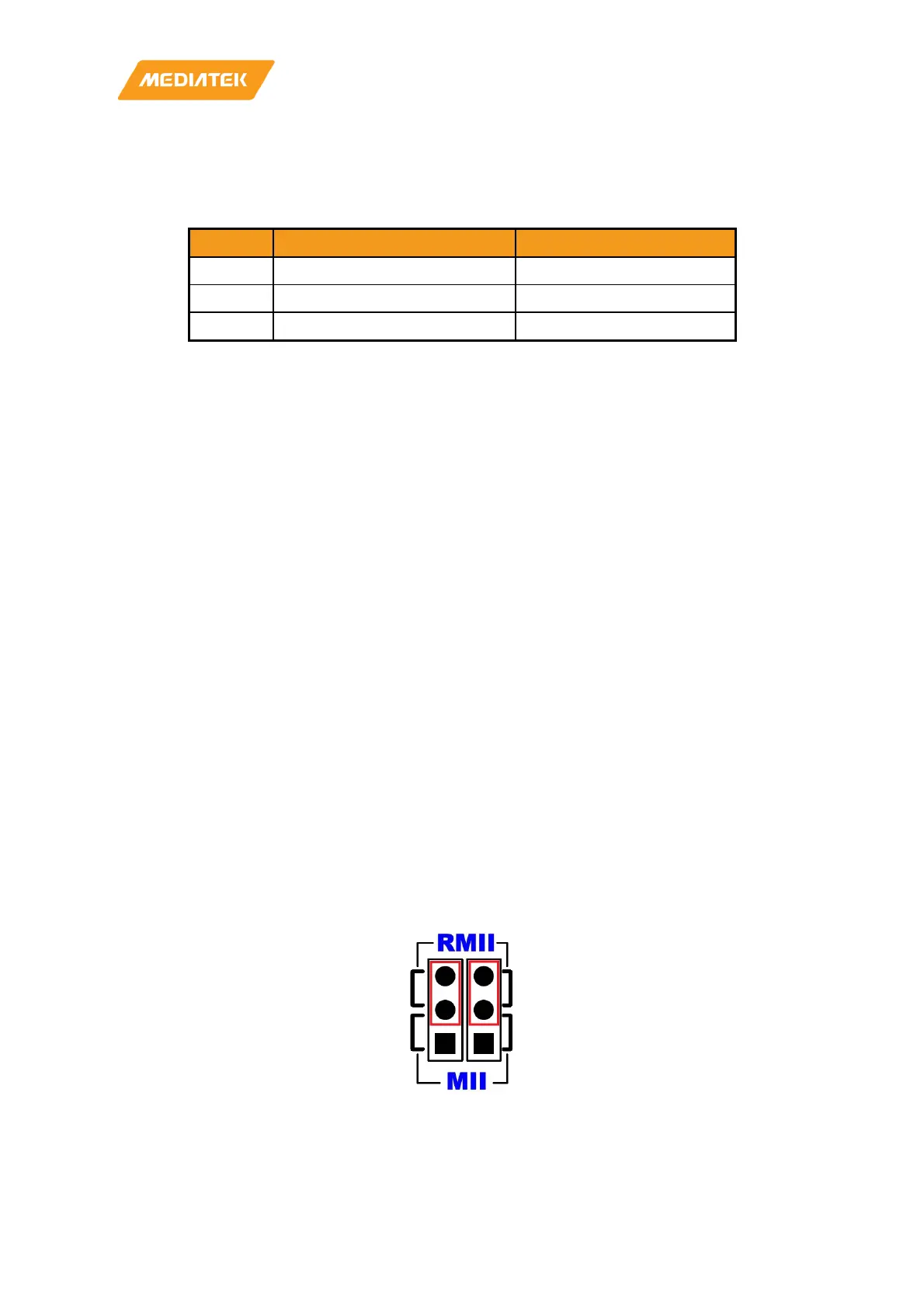

The codes released are for RMII interface. Please select RMII interface via J2319 and J2320.
Figure 3-2 Genio 350-EVK Main Board Placement
