J2318 Open Short
GPIO Raspberry Pi I/O MT6631 / JTAG
GPIO32 RasPi_GPIO32 JTDI
GPIO33 RasPi_GPIO33 JTDO
GPIO34 RasPi_GPIO34 JTRST
GPIO136 RasPi_GPIO136 CONN_TOP_CLK
GPIO137 RasPi_GPIO137 CONN_TOP_DATA
GPIO138 RasPi_GPIO138 CONN_HRST_B
GPIO140 RasPi_GPIO140 CONN_BT_CLK
GPIO141 RasPi_GPIO141 CONN_BT_DATA
GPIO142 RasPi_GPIO142 CONN_WF_CTRL0
GPIO143 RasPi_GPIO143 CONN_WF_CTRL1
GPIO144 RasPi_GPIO144 CONN_WF_CTRL2
GPIO144 RasPi_GPIO139 CONN_WB_PTA

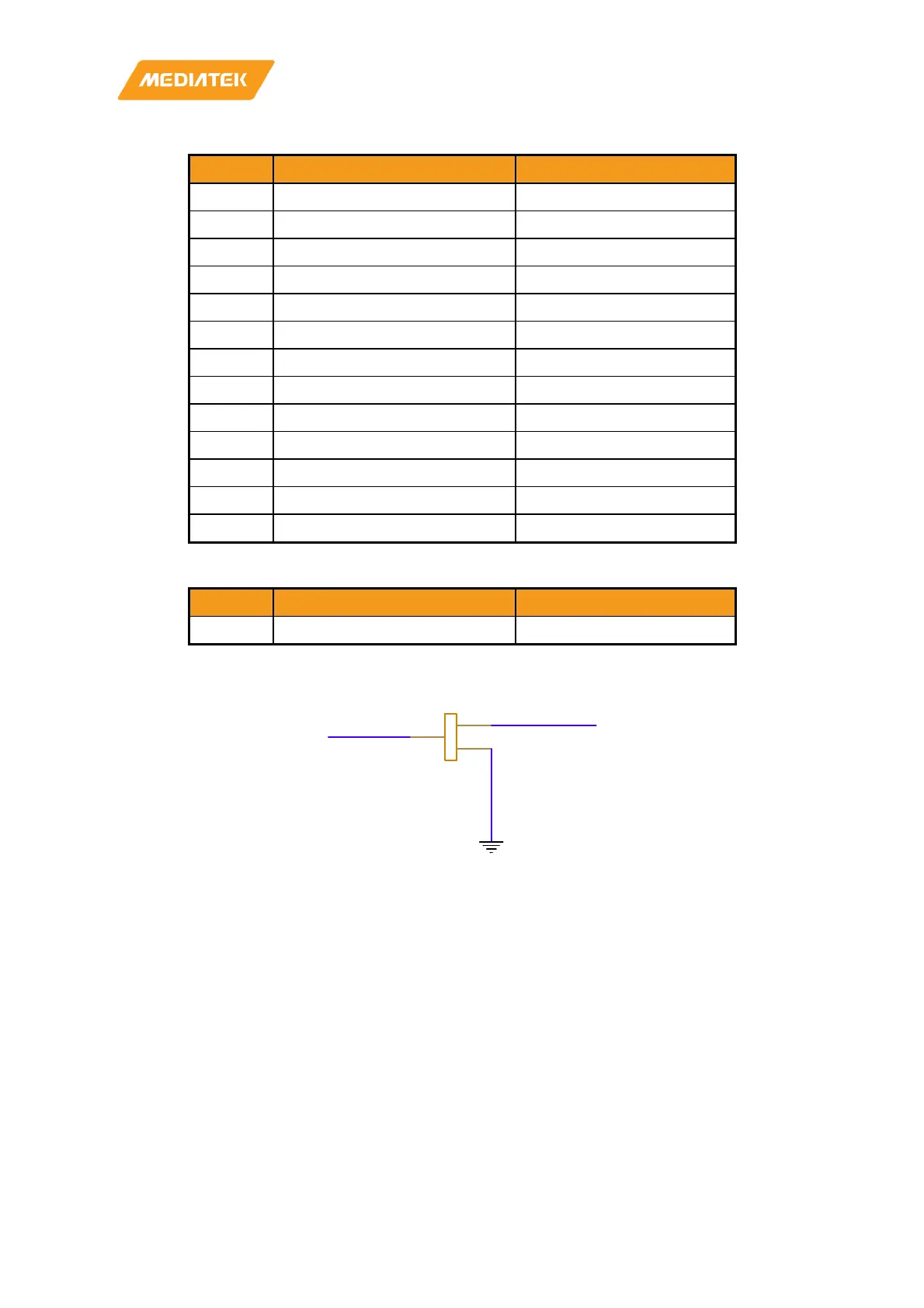

Table 3-9 Pin Mux Controlled by Jumper J2318
Location Short Pin 1 and Pin 2 Use Pin 2 and Pin 3
J1303 RasPi_PWM_3V3 IRRX_3V3
Table 3-10 Pin Mux Controlled by Jumpers J1303
Figure 3-7 Circuit for Jumpers J1303
3.16 On-Board Antenna
Genio 350-EVK has three on-board antennas. Users can connect them via coaxial cables. These antennas are
designed for AzueWave M.2 (MT7663) WiFi module, also can be used for MT6631 on-board WiFi chip.
Location Band Note
CON3303 2.4GHz / 5GHz WiFi
CON3304 2.4GHz / 5GHz / 1.6GHz WiFi / BT / GPS
CON3305 2.4GHz BT
Table 3-11 On-Board Antennas
J1303
ME_SIP-3P
1
1
2
2
3
3
RasPi_PWM_3V3
D_GND
IRRX_3V3
